TOP HIGH END Award 2019 Hi-Fi & High End Show (Russia)
Gear Patrol 100 Best Products of the Year 2019

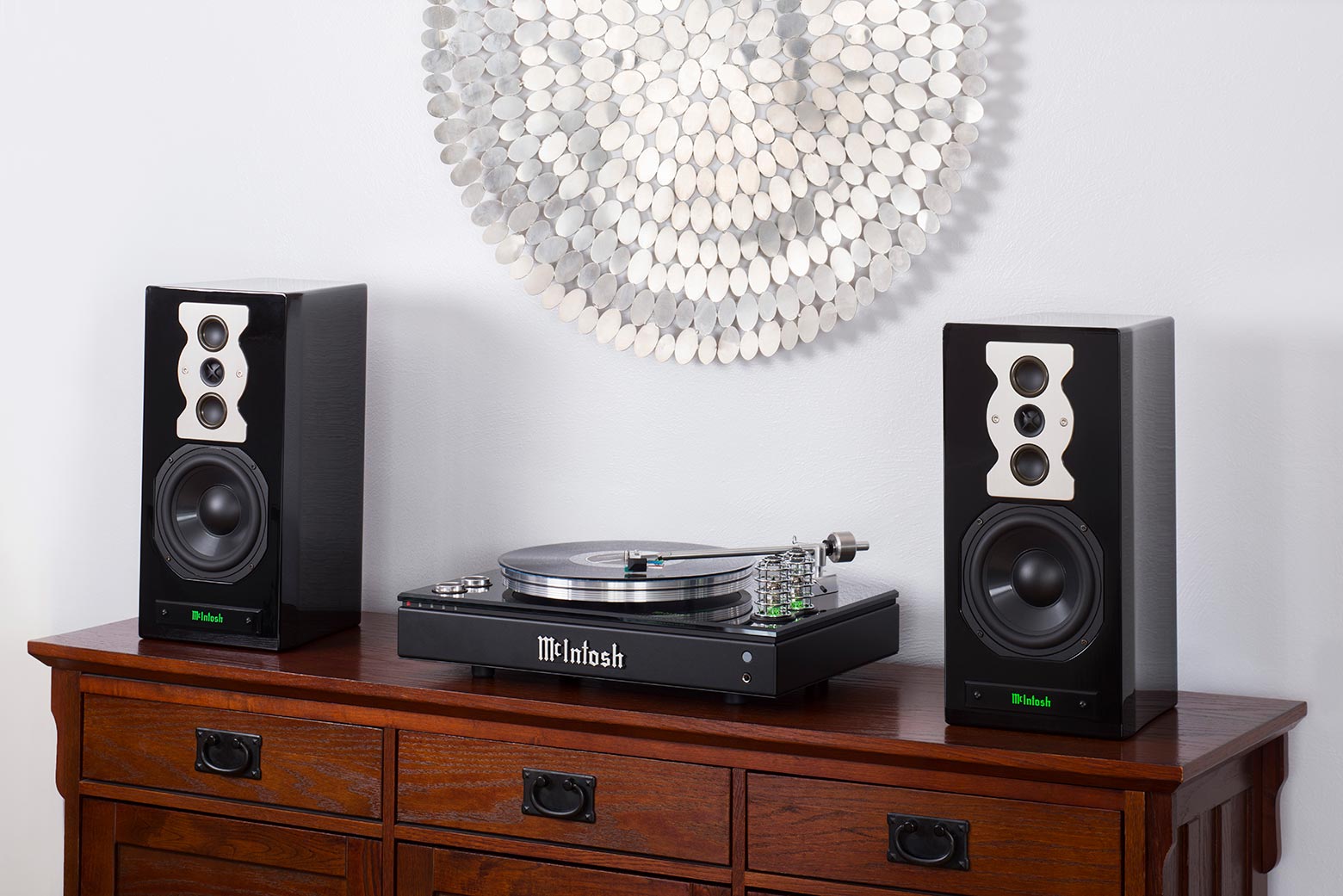

MTI100 Integrated Turntable shown with XR50 Speakers (sold separately).
Turntable? ✔
Amplifier? ✔
Vacuum tube preamplifier? ✔
Phono preamplifier? ✔
Analog input? ✔
Digital inputs? ✔
Bluetooth® receiver? ✔
Speaker outputs? ✔
Subwoofer output? ✔
Headphone jack? ✔
McIntosh engineering? ✔
What else do I need? Just add your music and speakers.

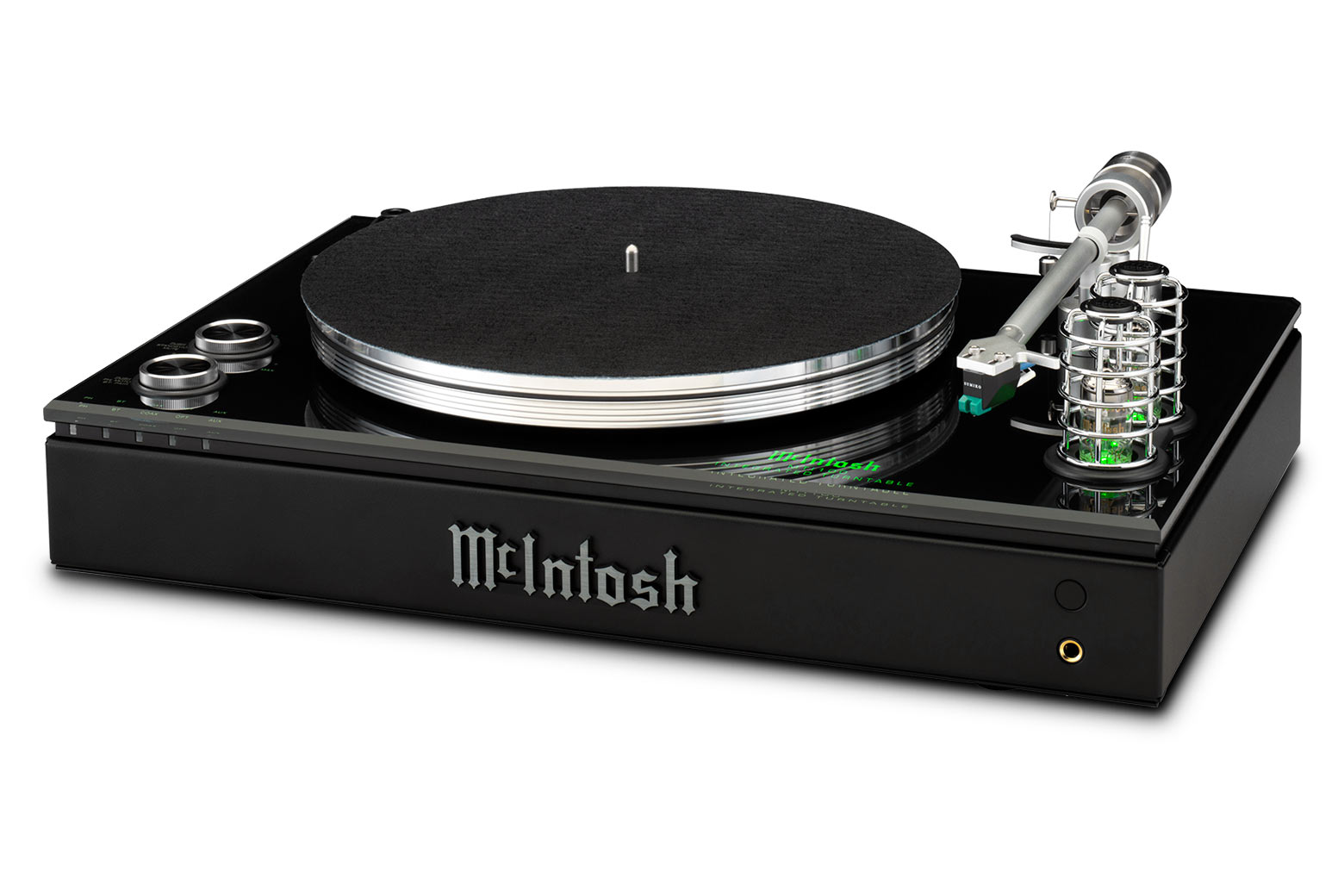

At first glance, the McIntosh MTI100 Integrated Turntable may look like it’s just a turntable, but a closer look will reveal that it is in fact so much more. Truly a one-of-a-kind product, it is designed for those who want maximum flexibility in their home audio system but don’t want – or don’t have the space for – a large audio system in their home. With all the built-in connectivity the MTI100 offers, it can become the center piece of a modern home audio system for modern lifestyles. Simply add your favorite speakers of choice (such as our XR50 bookshelf or XR100 floorstanding speakers) and you’ll have a complete and comprehensive audio system.
The MTI100 "manages to deliver on almost everything vinyl enthusiasts prize about the format." The amount of detail it delivers "without sounding in any way prissy or analytical is no easy task," and the "mastery of low-level harmonic dynamics on display here is considerable." Winner of a HiFi+ Editor's Choice 2020 Award. - HiFi+

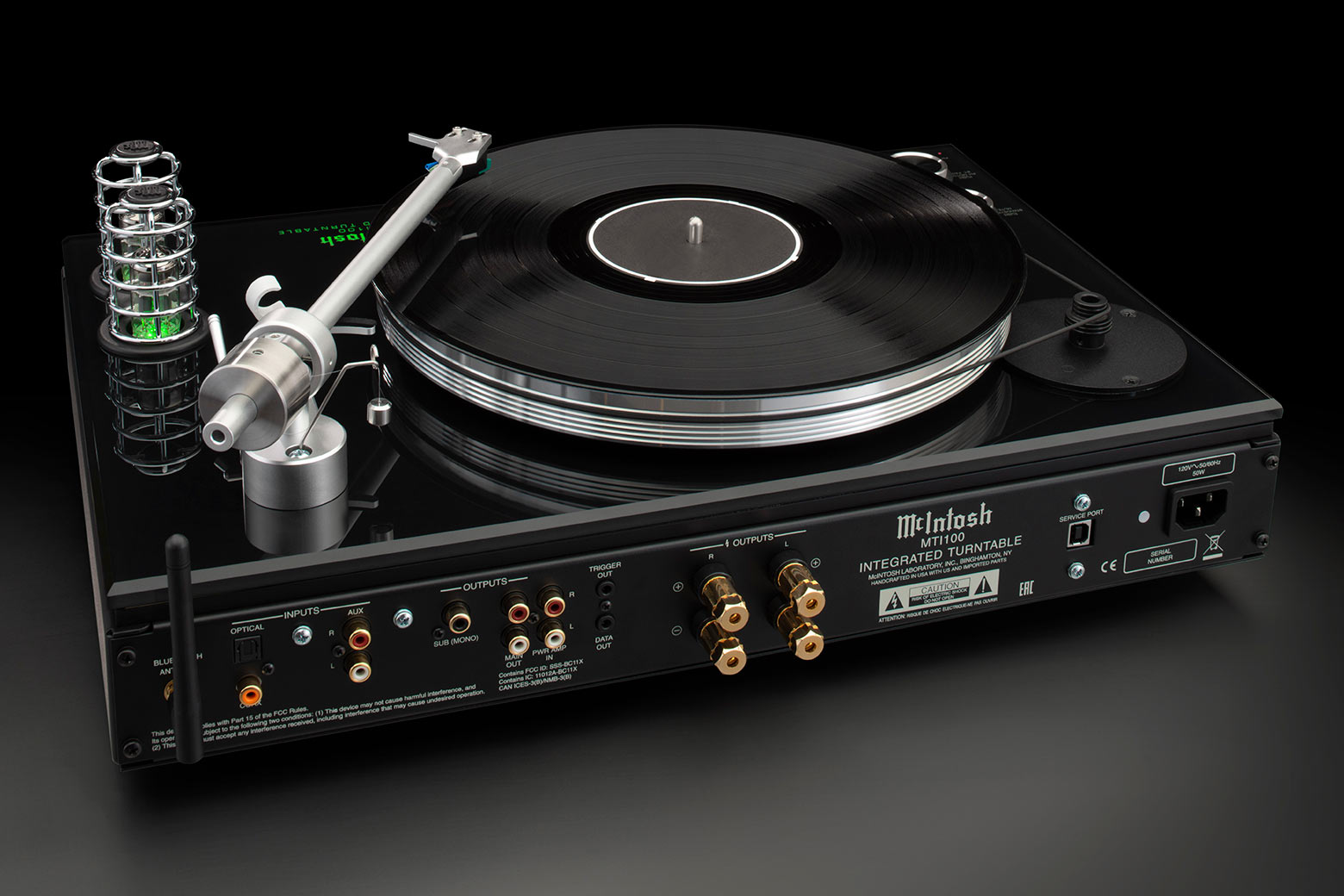

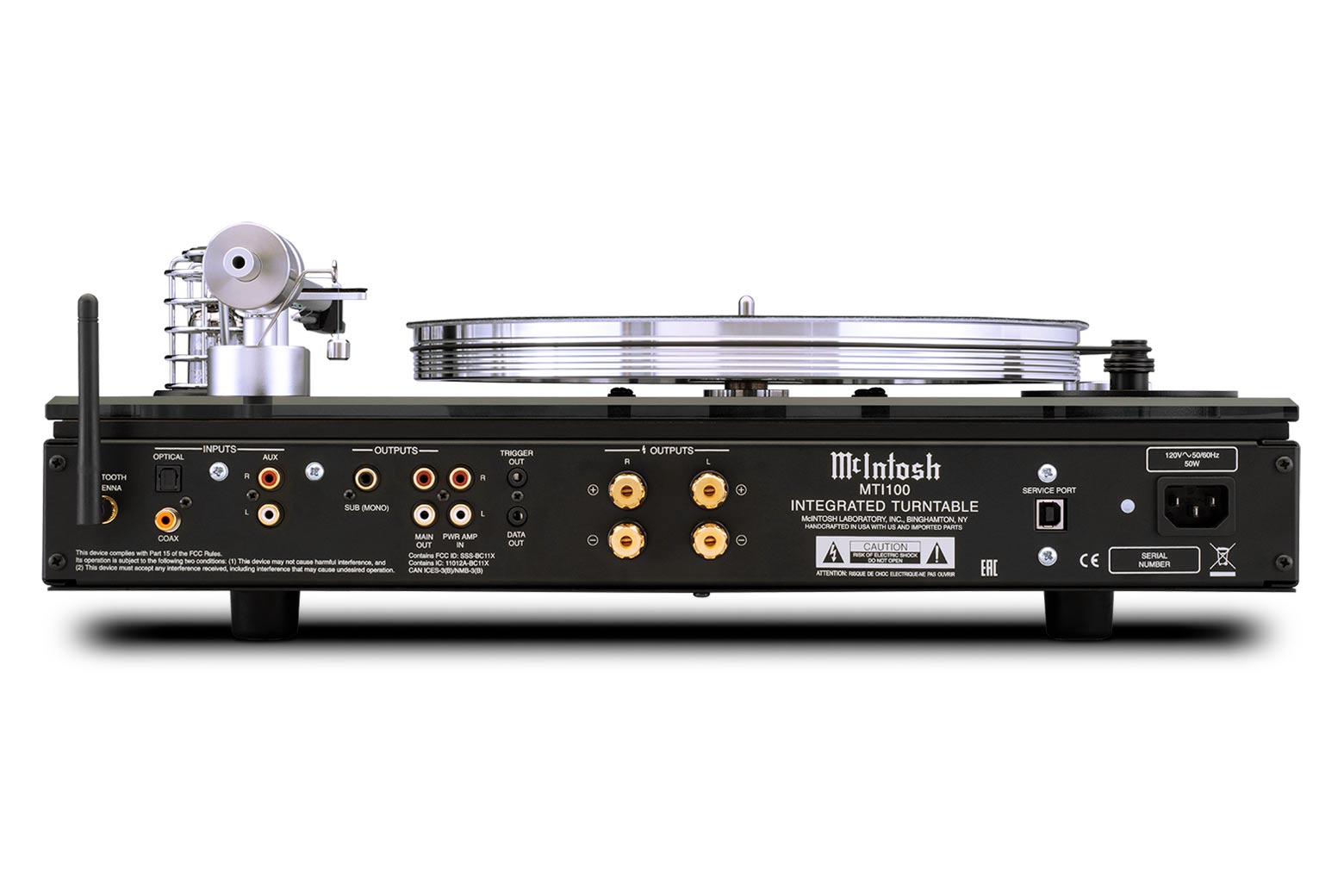

Besides the turntable that plays both 33-1/3 and 45 rpm vinyl records, the MTI100 also includes a power amplifier, a vacuum tube preamplifier section, a shielded phono preamplifier, an unbalanced auxiliary input, digital audio coaxial and optical inputs, a Bluetooth receiver, a subwoofer output, stereo speaker outputs for sharing your music with friends, and a headphone jack for personal listening.
"There is no audible noise in any section of the MTI100. Phono and digital sections are free of playback artifacts, even with highly sensitive speakers... a piece of sonic artistry, that provides high-end sound from all the sources you can imagine, and looks great doing it... The level of quality, functionality, and audio performance makes it the perfect purchase for anyone wanting a high quality, all-inclusive music system." Named The Audiophile Apartment’s Product of the Year 2019. - The Audiophile Apartment

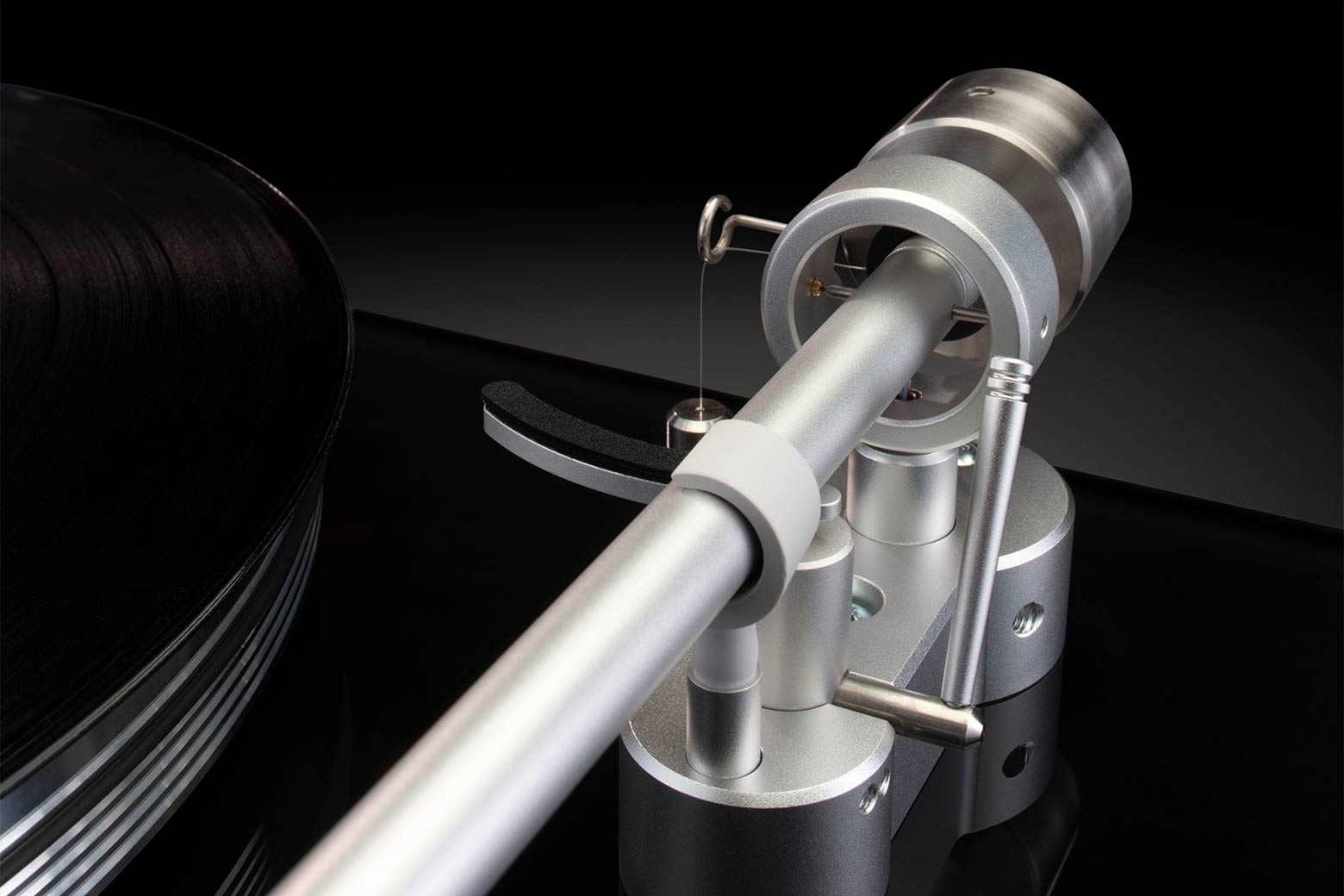

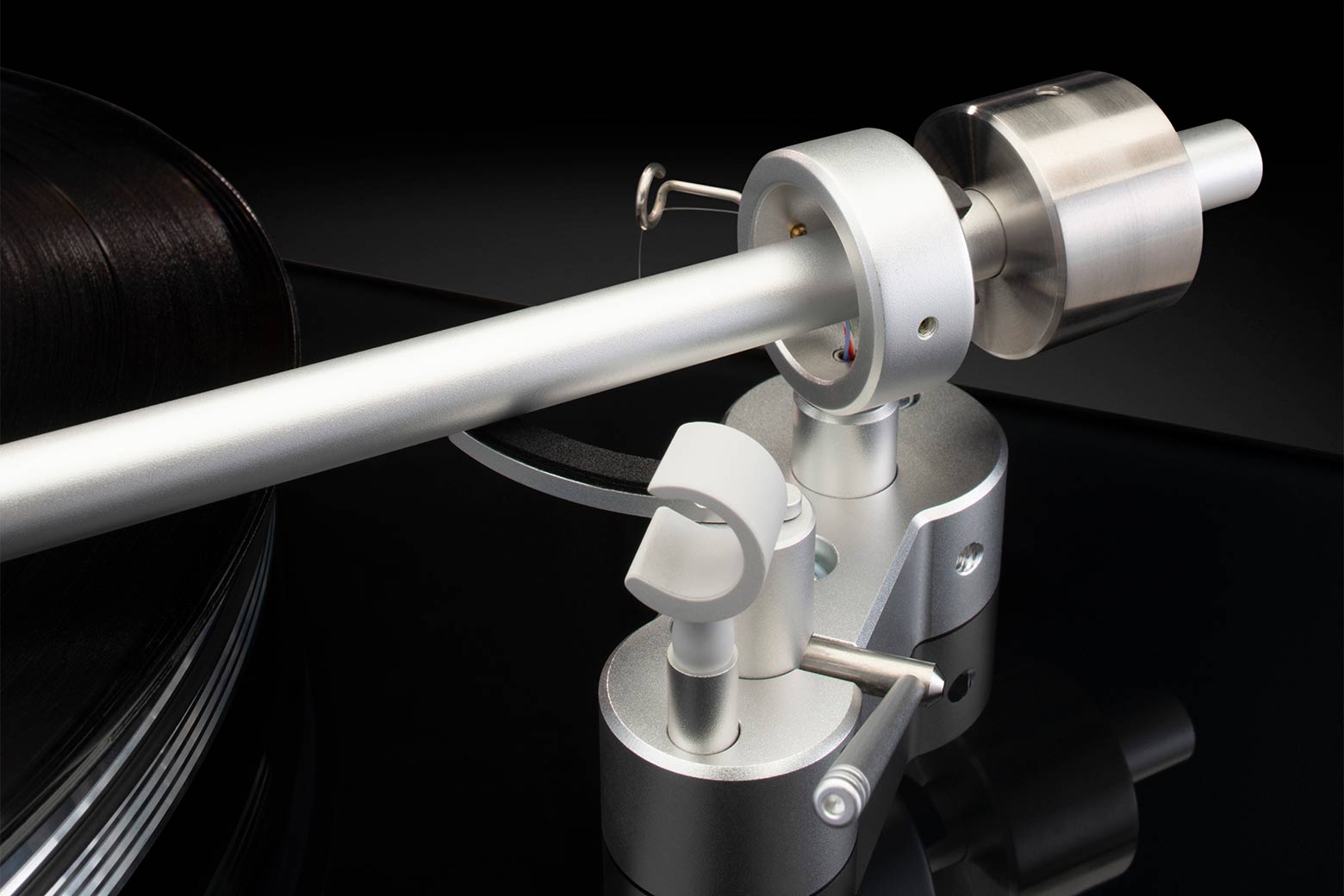

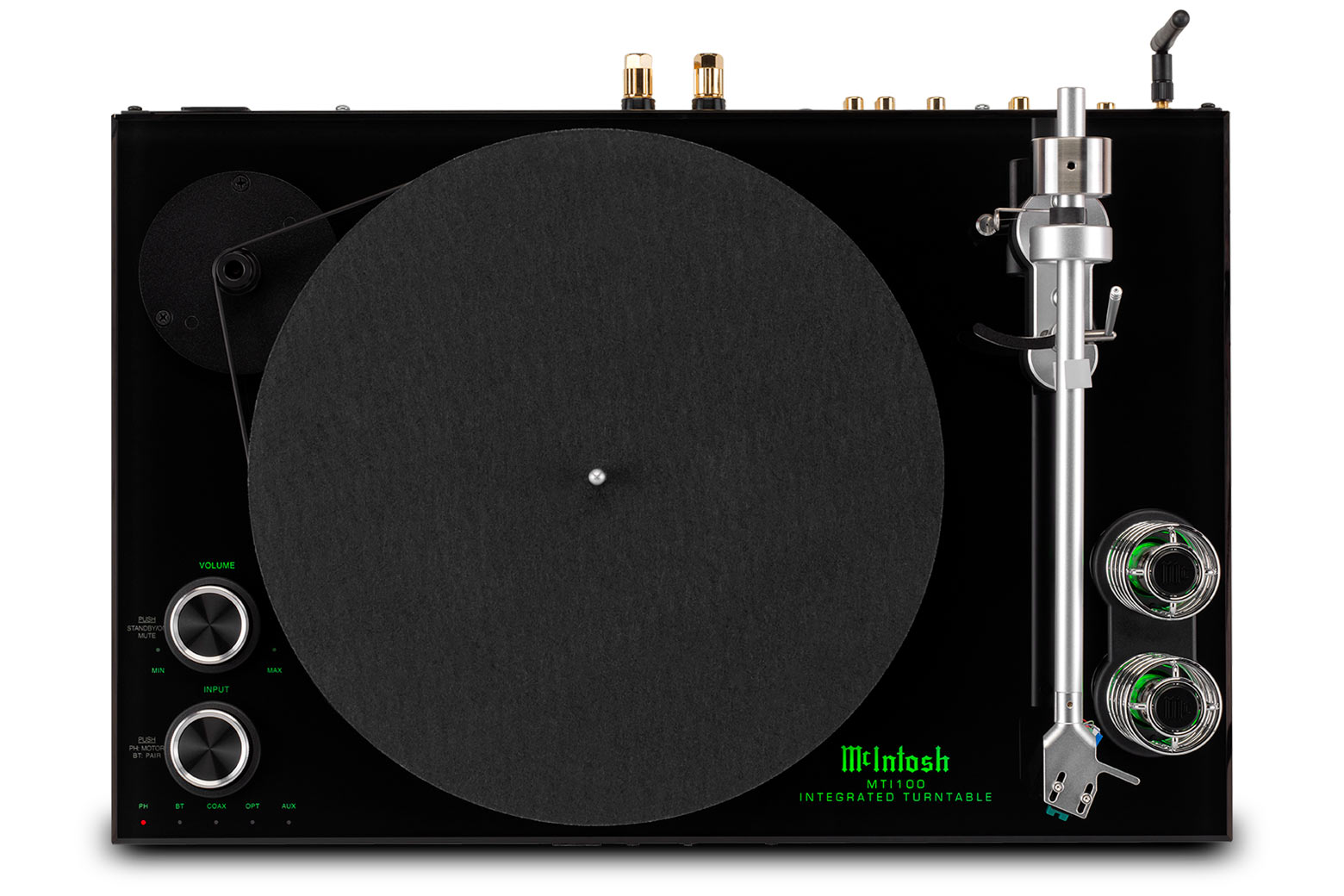

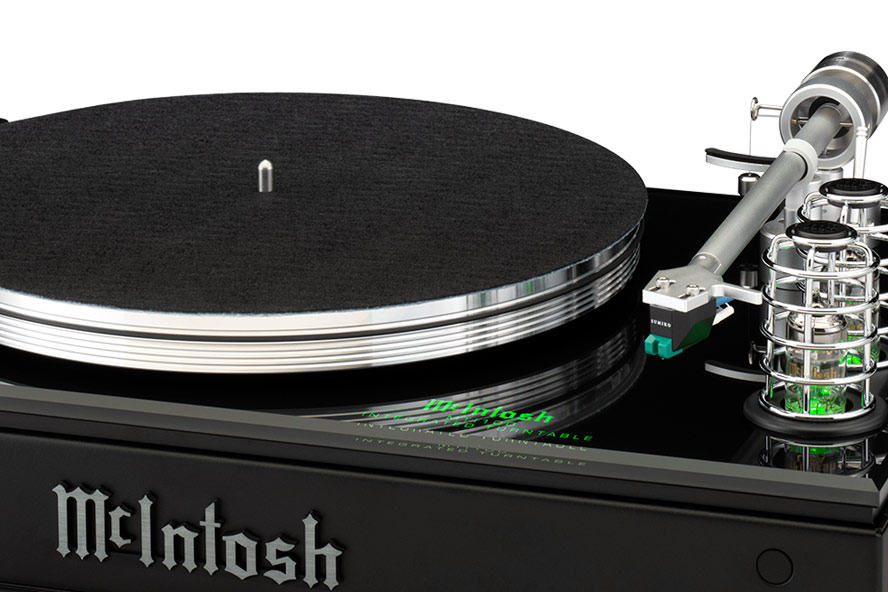

The 7 pound (3.18 kg) machined aluminum platter resides on the top of the unit. This and the matching machined aluminum tonearm with anti-skate sit atop a 3/8” (9.5mm) thick piece of glass – the same glass found in the front panels of our larger amplifiers; this in turn sits atop a custom 1/4” (6.35mm) thick metal plate that adds stability. The combined heftiness of both the platter and metal plate helps resist and absorb noise that could be caused by external vibrations.
The MTI100 "oozes class and luxury..." no other product Brockhouse has reviewed "elicited more oohs and ahs than the MTI100..." its "big, spacious sound" made "listening to music an event." - SoundStage
The belt drive platter with manual speed change is driven by an industrial grade permanent magnet AC synchronous motor with a 2 speed pulley. With this motor, the platter speed is precisely synced to the AC power line’s frequency to deliver precise rotational speeds for playback accuracy. The MTI100 comes with a Sumiko Olympia Moving Magnet cartridge, whose upgraded stylus and cantilever assembly allow for more dynamic punch and improved frequency response.

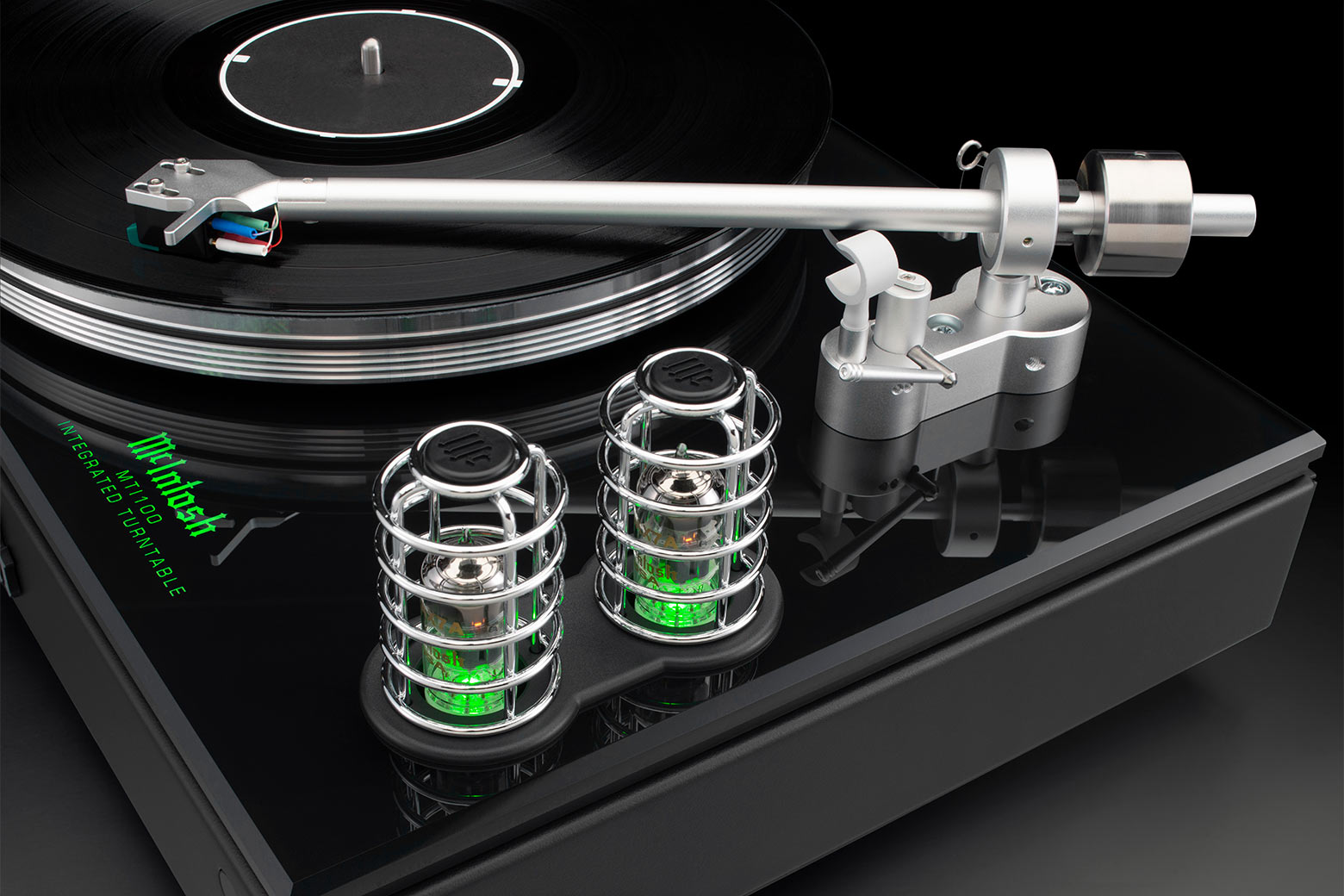

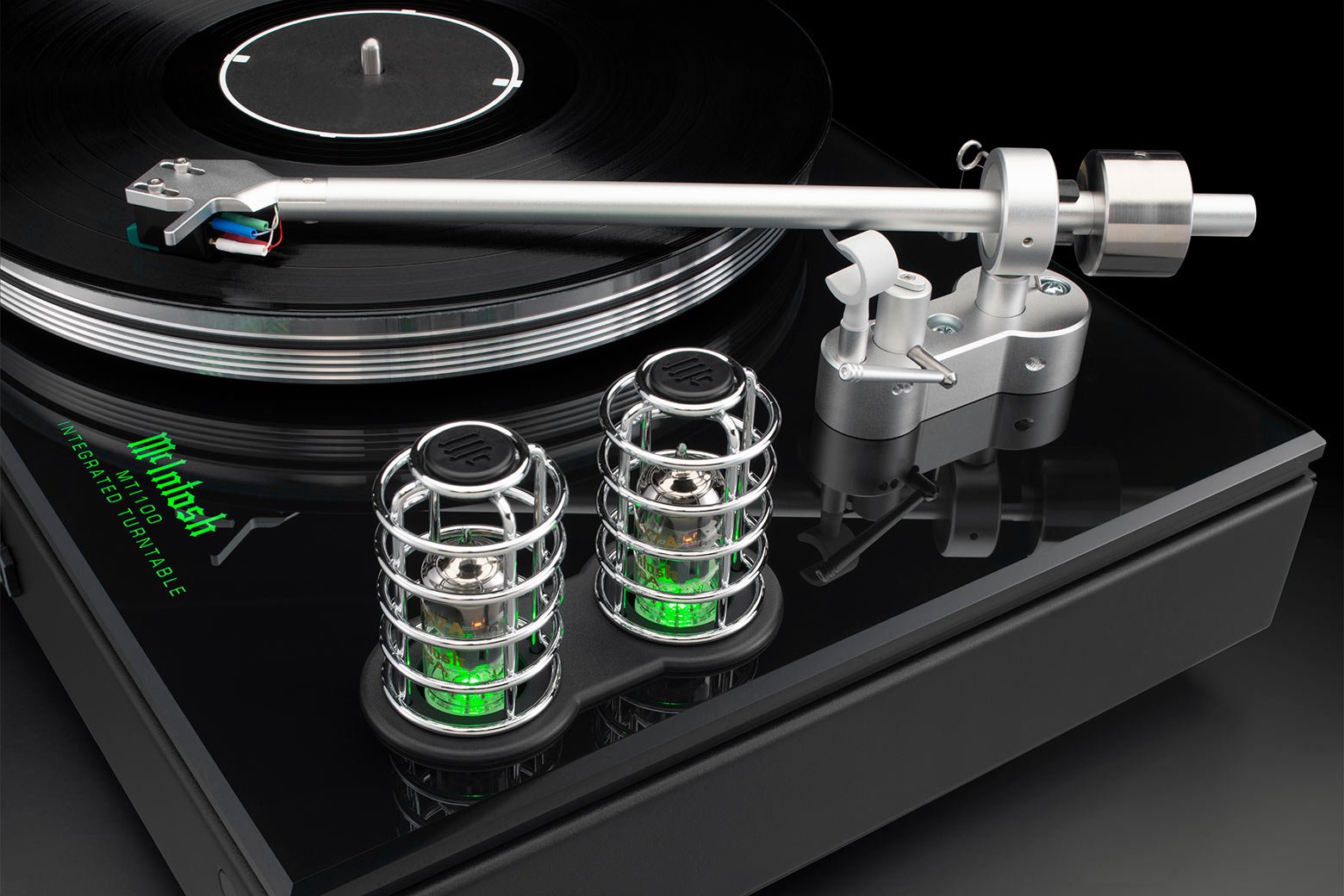

A Class D amplifier that’s rated for 80 Watts per channel into 4 Ohms or 50 Watts per channel into 8 Ohms is used to drive a pair of speakers (sold separately) that are connected via the back panel speaker binding posts. Two 12AX7 vacuum tubes power the main preamplifier section, while a separate dedicated phono preamplifier is housed in a custom shielding box that prevents interference or noise from seeping into the vinyl signal. Together, the vacuum tube preamplifier and shielded phono preamplifier are a perfect choice to help make your vinyl albums sound their best.
"For an all-in-one device, the MTI100 rocks!" With all its connectivity options, "it can comfortably function as the heart of a more extensive system... sure to appeal to today’s millennials who have a vinyl collection and high expectations for sound quality, as well as to audiophiles who may be down/right-sizing or looking for a simple second system with minimal compromise." - SoundStage Australia
To combine playing vintage vinyl records with modern playback methods, you can also stream music to the MTI100 via its High Definition Bluetooth 4.2 input that ensures you receive the best sound quality possible from your Bluetooth device. An external Bluetooth antenna helps achieve optimal reception and signal quality. The analog and digital audio inputs allow external sources, such as a TV, tuner or CD Player, to be connected. Not to overlook the impact that low sound frequencies can add, a subwoofer output is also included. Finally, for personal listening, the front panel includes a headphone jack that is powered by our High Drive headphone amplifier, which features increased gain and output power and is optimized for virtually all headphone types.

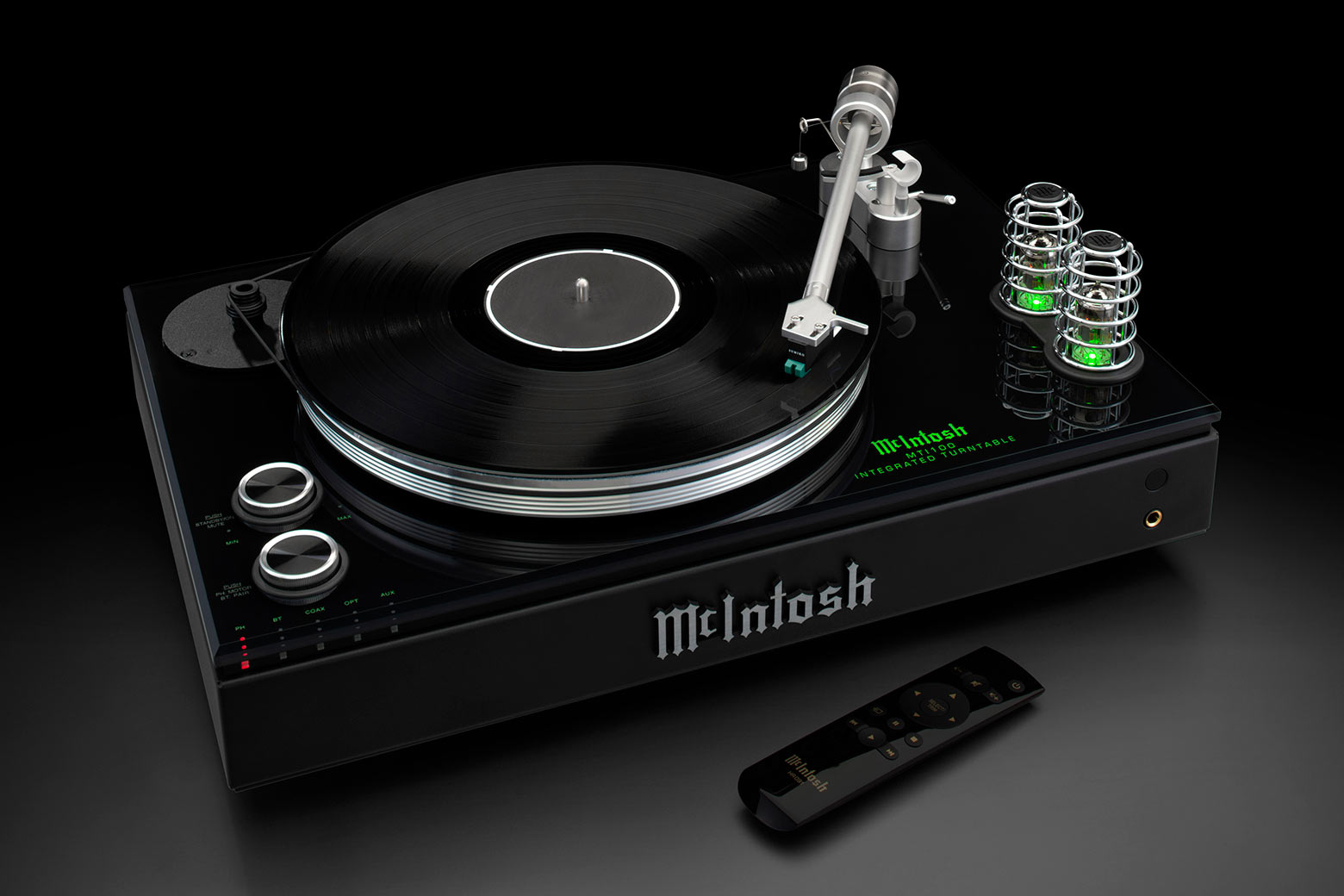

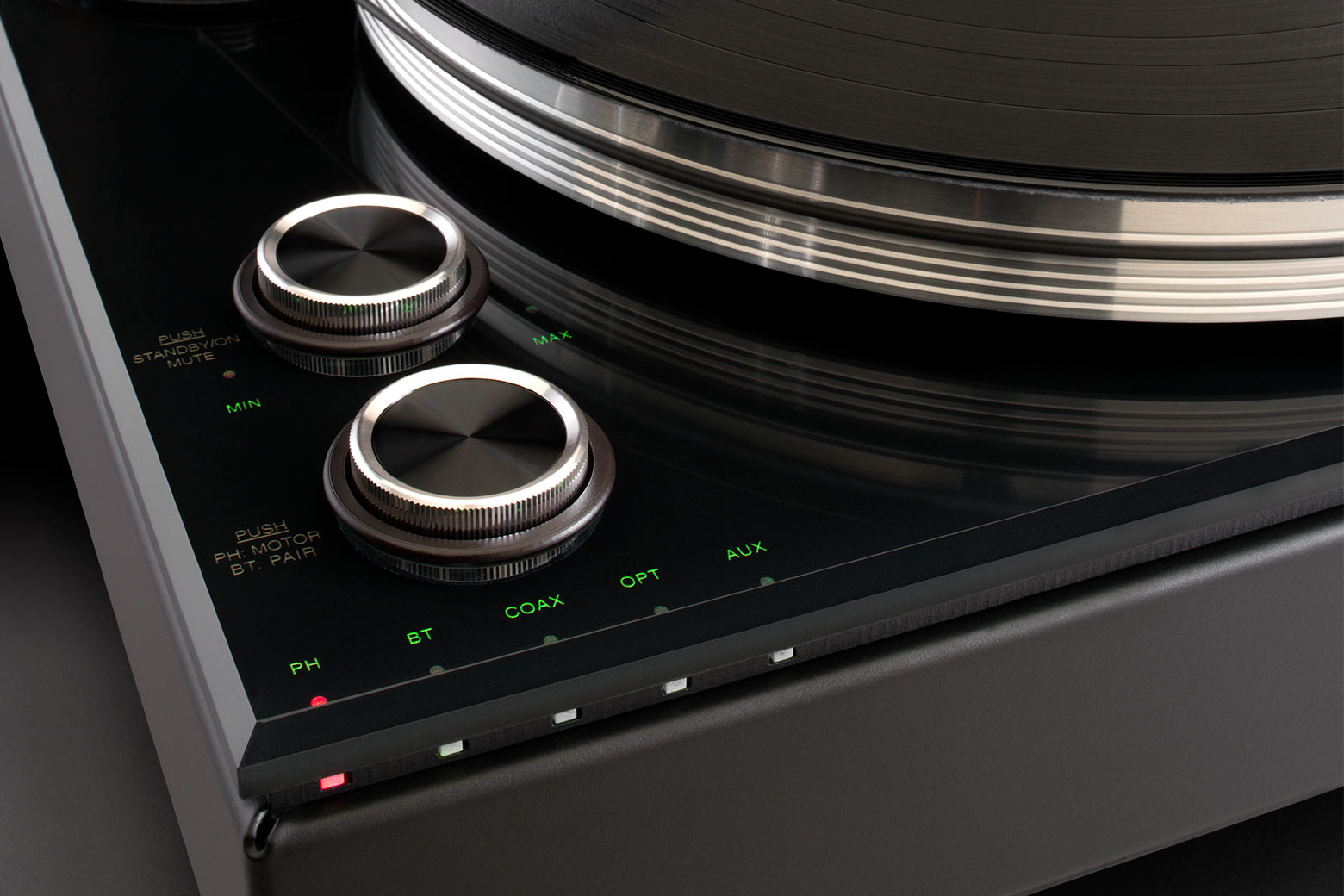

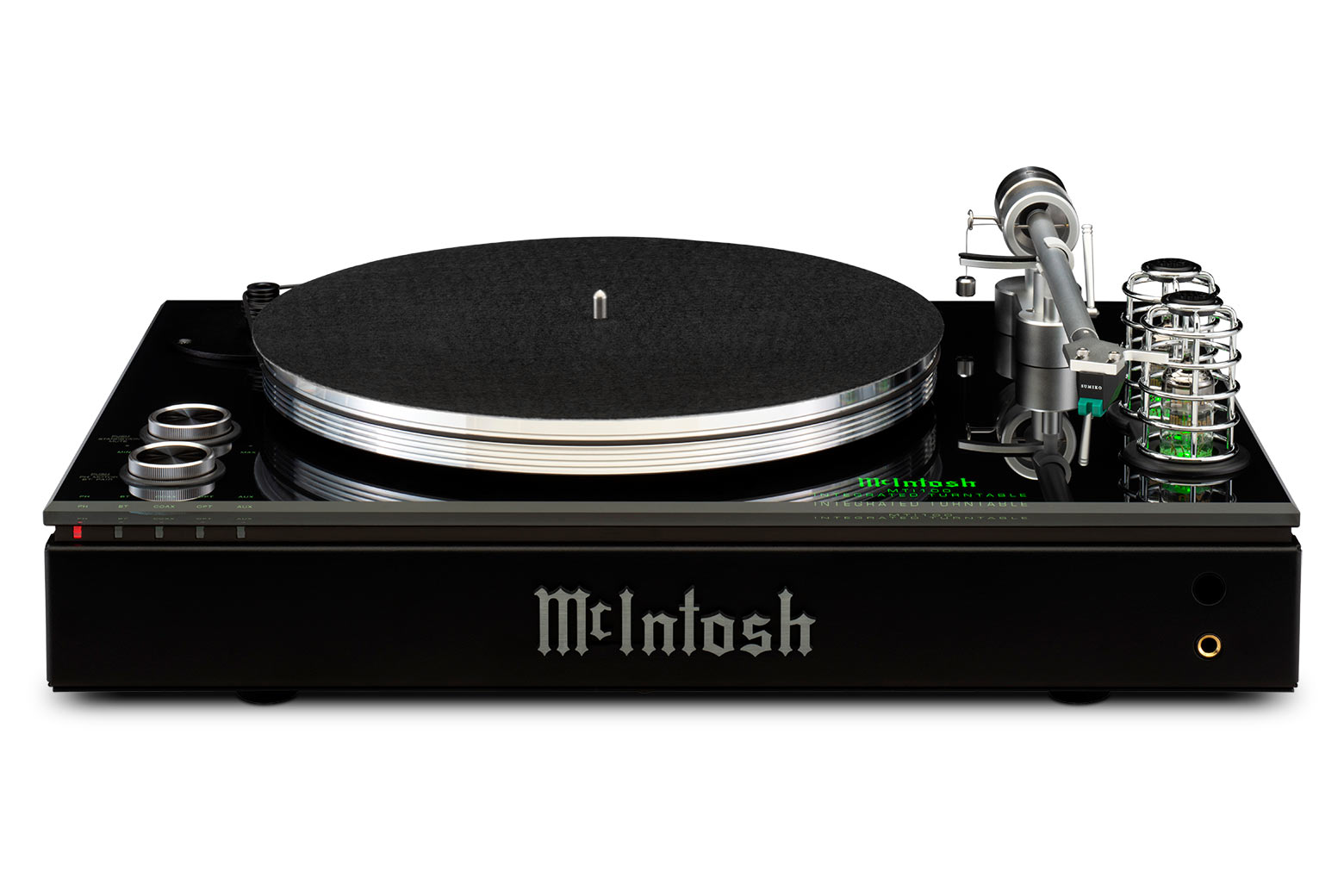

Power, volume and input selection can be controlled by either the included remote or via two knobs on the unit. An illuminated McIntosh logo is located in the top glass panel, while a classic McIntosh-styled die cast aluminum name badge adorns the front of the chassis. Contact your local dealer to learn more about making the MTI100 the center of your home audio system.
Specifications
Cartridge Specifications
Cartridge Type
Moving Magnet
Output Level
4mV at 1kHz
Load Impedance
47k Ohms
Frequency Response
12Hz to 30kHz
Channel Separation
30dB at 1kHz
Compliance
12 x 10-6 cm/dyne
Recommended Tracking Force
2.0 g
Channel Difference
Less than 1dB at 1kHz
Total Mass
6.5 g
Stylus
Elliptical
Cantilever Material
Aluminum
Tonearm Specifications
Bearing
Cardan bearing arrangement with ball bearings used for lateral and Sapphire/Tungsten for vertical bearing
Arm Tube
Machined aluminum
Counterweight
Concentric
Adjustments
None
Turntable Specifications
Playback Speeds
33-1/3 and 45 rpm
Motor Type
Permanent magnet AC synchronous
Speed Control
Manual speed change via a 2 speed pulley
Platter
Aluminum
Platter Bearing
Inverted hardened steel shaft and axial ball arrangement with bronze bushing
Signal To Noise Ratio
35dB - 40dB
Wow & Flutter
0.1%
Connectivity
Stereo Outputs Unbalanced
1 (bridged to AMP IN)
Stereo Inputs Unbalanced
1
Digital Coaxial Input
1
Digital Optical Input
1
Subwoofer Output
1
Wireless Input
High Definition Bluetooth 4.2
Control
Power Control Input
0
Power Control Output
1
Platter Light
N/A
Speed Control Fine Adjustment
No
Electronic Specifications
Power Output per Channel
50 Watts into 8 Ohms 80 Watts into 4 Ohms
Number of Channels
2
Speaker Impedance
4 or 8 Ohms
Rated Power Band
20Hz to 20kHz
Total Harmonic Distortion
Amplifier: 0.2% maximum harmonic distortion at any level from 250 milliwatts to one-half of rated power output, 20Hz to 20kHz; 0.5% maximum harmonic distortion at any level from one-half to full rated power output, 20Hz to 20kHz Preamplifier: 0.2% from 20Hz to 20kHz
Dynamic Headroom
1.0dB (8 Ohms) 1.3dB (4 Ohms)
Frequency Response +0,-0.7dB
20Hz to 20kHz
Signal To Noise Ratio (Moving Magnet)
75dB
Signal To Noise Ratio (High Level)
90dB
Damping Factor
8 Ohms: >200 4 Ohms: >100
Maximum Output (Balanced / Unbalanced)
9V Unbalanced
General Specifications
Dust Cover Included
No
Weights & Dimensions
Unit Dimensions (W x H x D)
19-1/4” (48.9cm) x 6-3/4” (17.15cm) x 14” (35.6cm)
