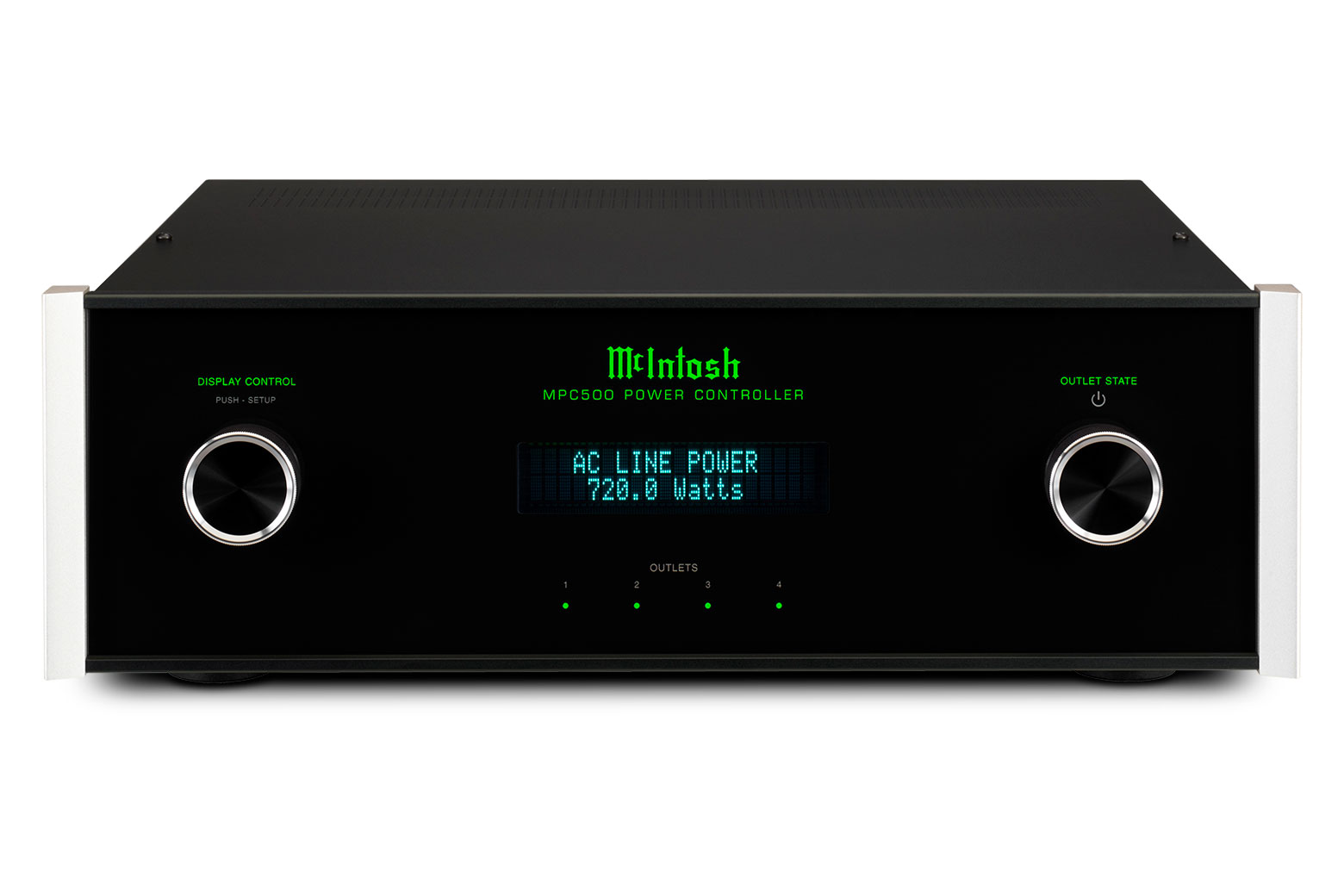

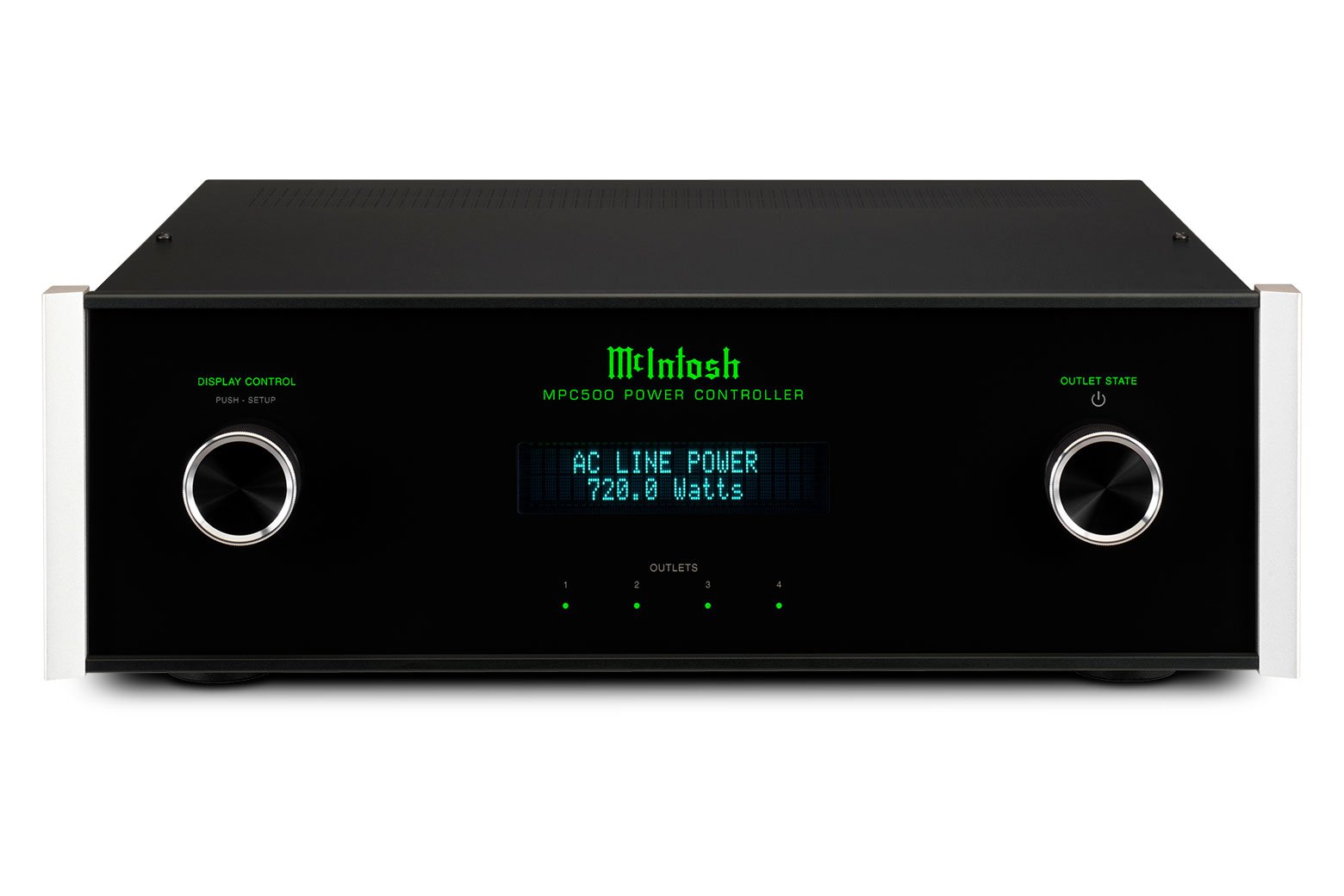

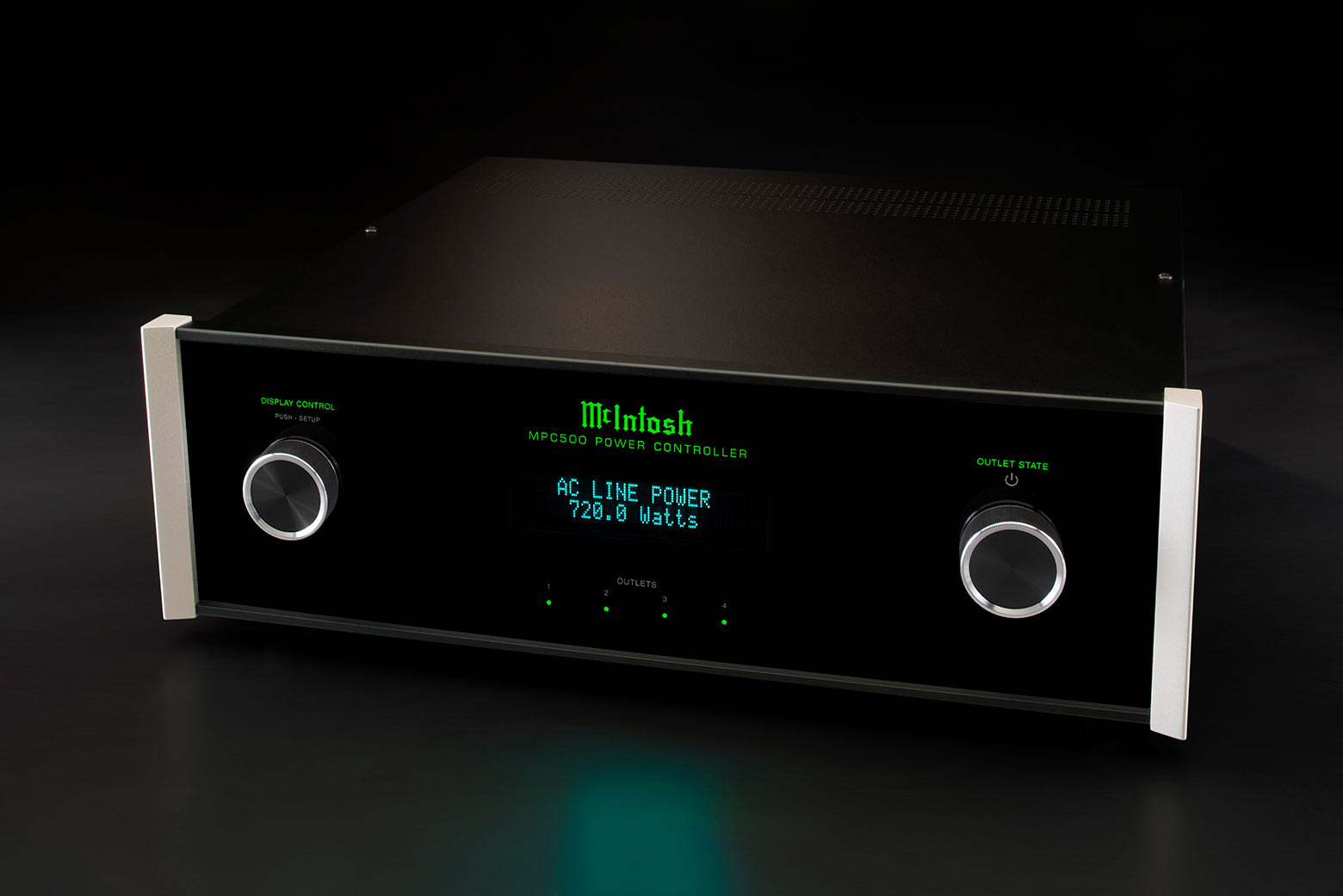

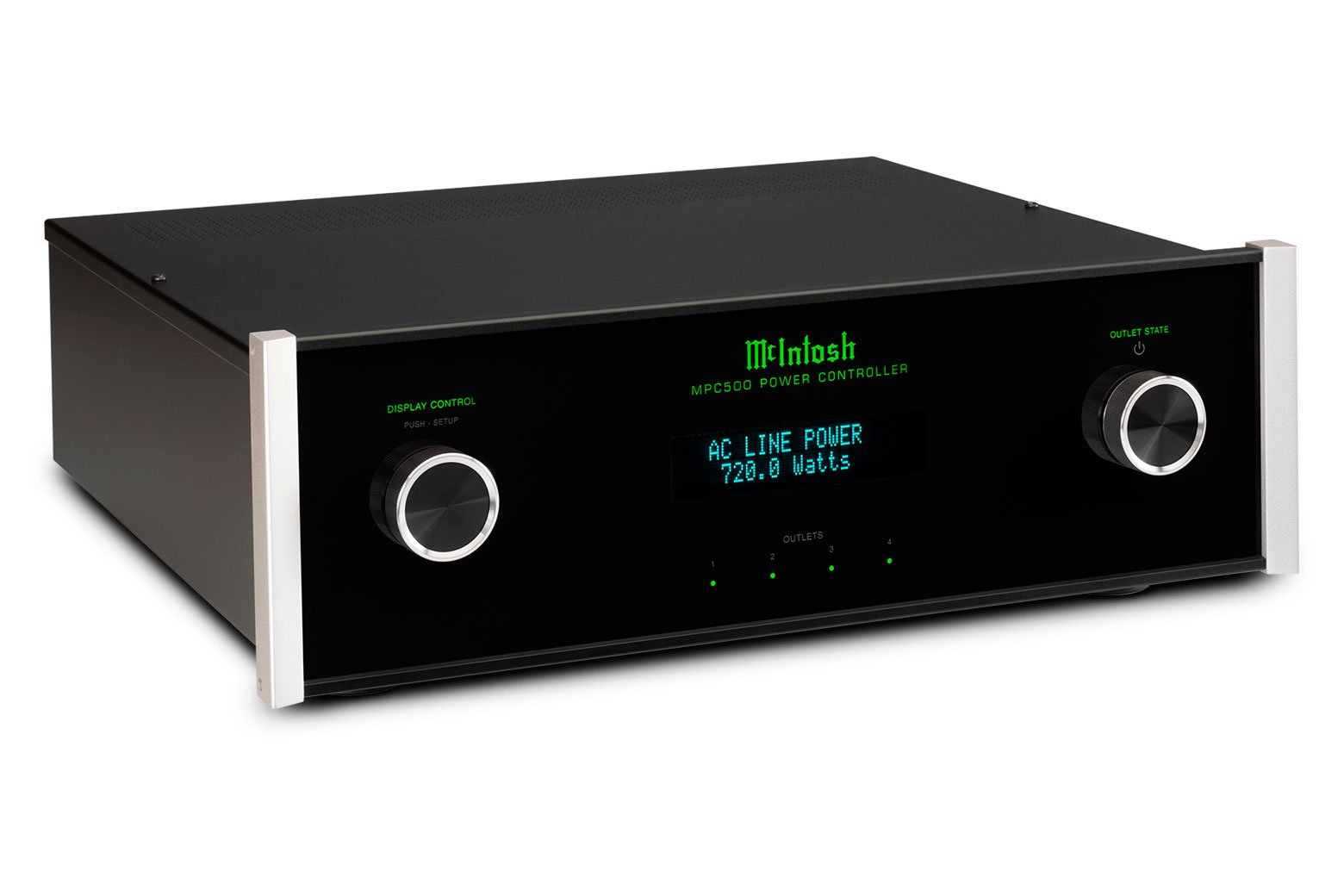

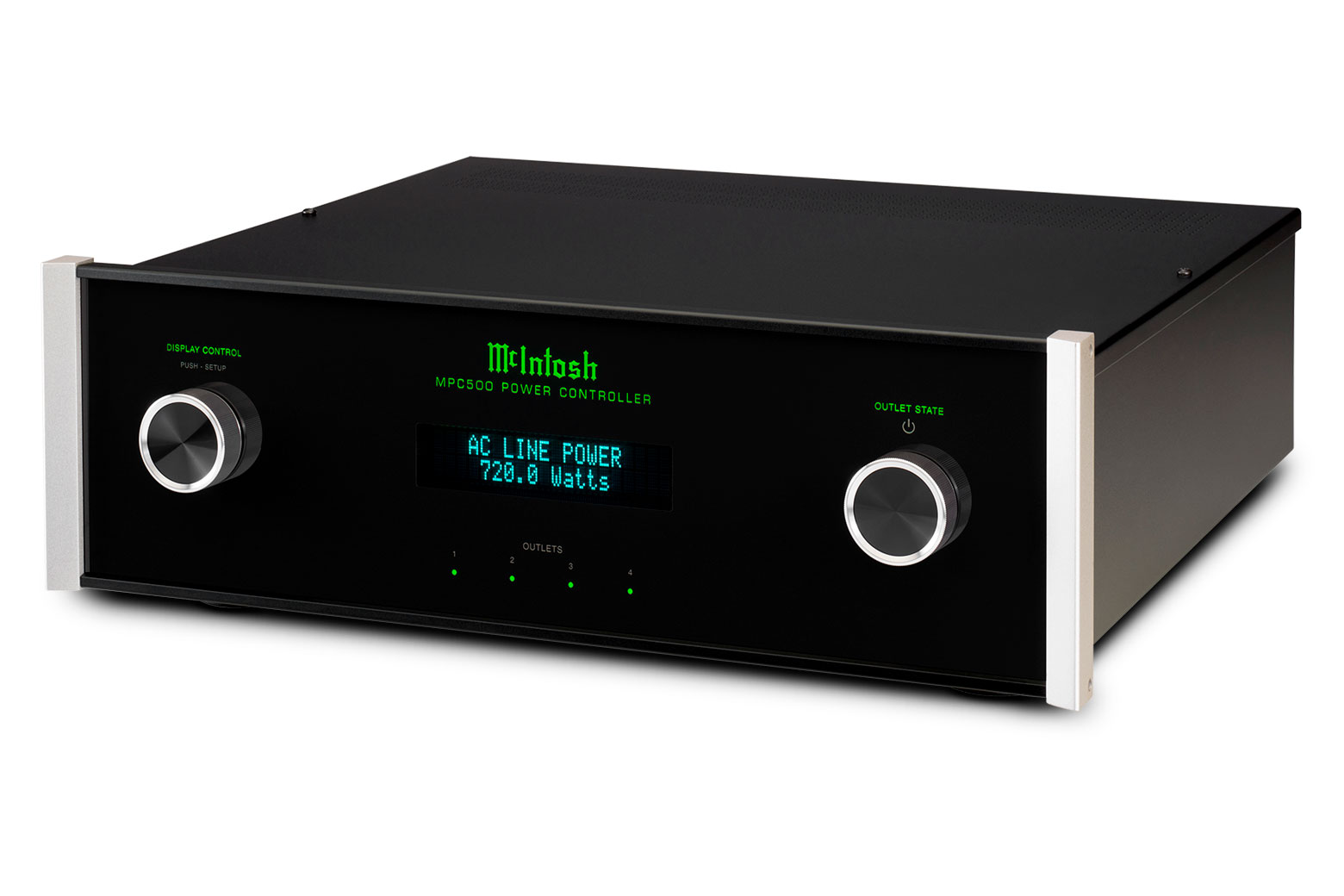

MPC500 Power Controller

Electronic Specifications

• Load Regulation

  N/A

• Output Voltage

  With Type B (a.k.a. NEMA 5-15R) receptacles:
  120 Volts AC Nominal

  With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
  240 Volts AC Nominal

• Power Requirement

  With Type B (a.k.a. NEMA 5-15R) receptacles:
  120 Volts, 50/60Hz
  12.0 Amps (max)
  1440 Watts (max)

  With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
  240 Volts, 50Hz
  6.0 Amps (max)
  1440 Watts (max)

General Specifications

• AC Power Line Protection

  Thermally protected metal-oxide varistor (TPMOV) for Line to Neutral protection

• Surge Suppression Type

  AC Power Line: thermally protected metal-oxide varistor (TPMOV)
  Secondary Surges: GDTs, PTC thermistors, TVS components

• Number of Receptacles

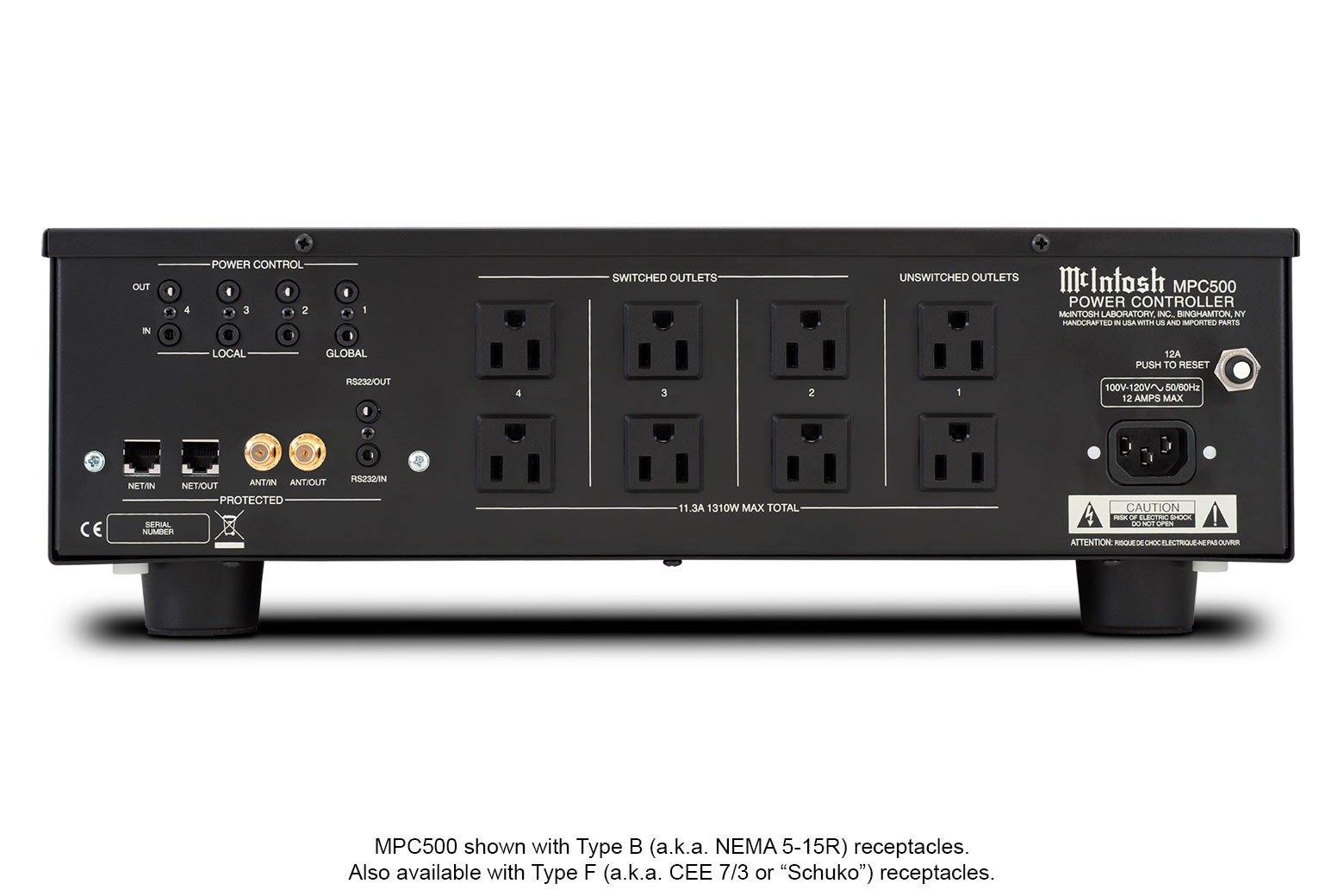

  With Type B (a.k.a. NEMA 5-15R) receptacles:
  8

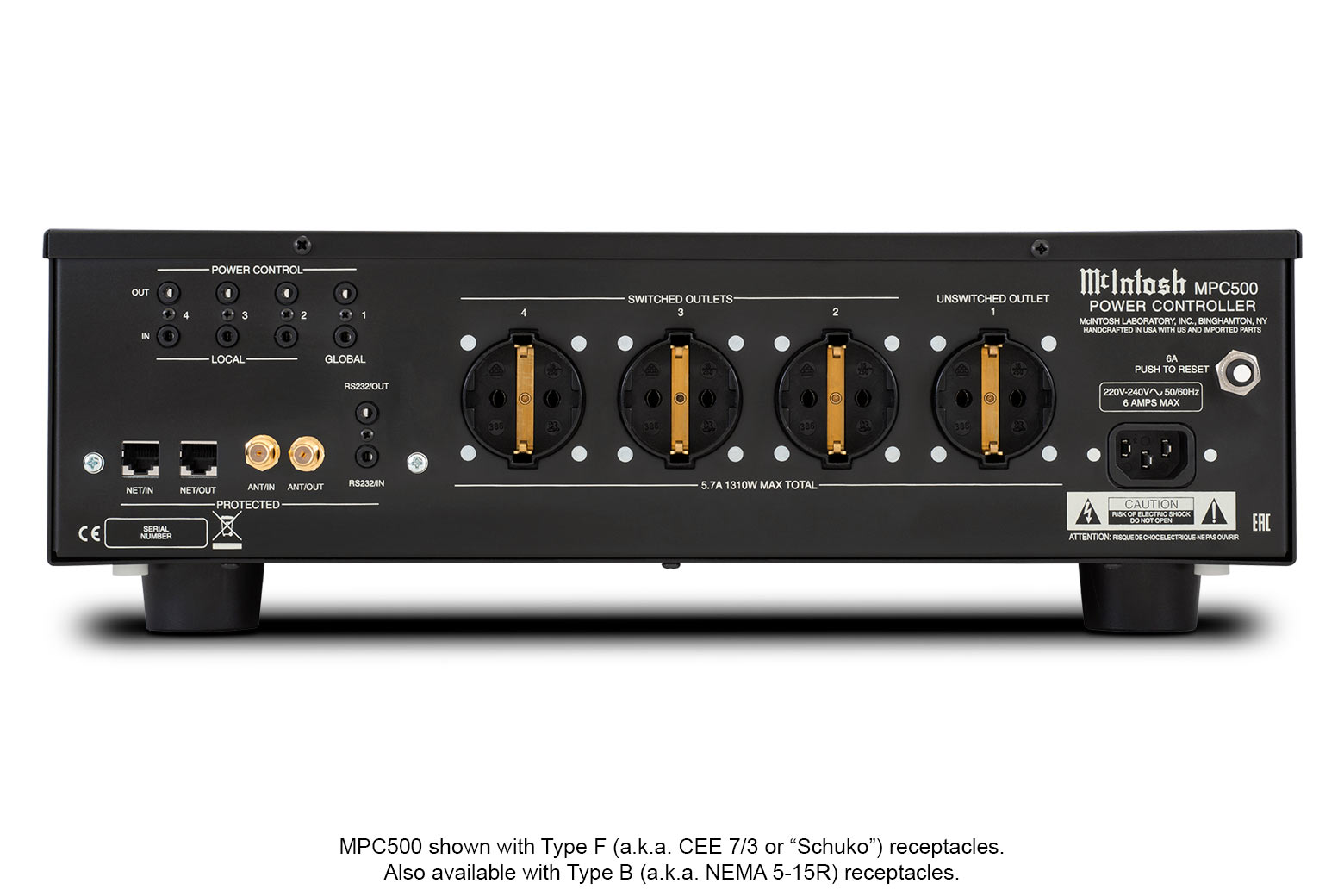

  With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
  4

• Number of Always ON Receptacles

  With Type B (a.k.a. NEMA 5-15R) receptacles:
  2

  With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
  1

• Number of Programmable Receptacles

  With Type B (a.k.a. NEMA 5-15R) receptacles:
  3 pairs

  With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:
  3

• Meters

  0

• Meter Light Switch

  N/A

Weights & Dimensions

• Unit Dimensions (W x H x D)

  17-1/2” (44.45cm) x 6” (15.2cm) x 19” (48.26cm)

• Unit Weight

  18.5 lbs (8.39 kg)

• Shipping Weight

  34 lbs (15.42 kg)
