- Sealed 3-Way Flexible Placement
- 75 to 300 Watts Power Rating
LCR80 LCR Loudspeaker
The LCR80 speaker projects an extremely wide sound-stage for a greater listening experience from a variety of seating positions, delivering an amazingly full-sounding performance for a speaker of such compact dimensions.

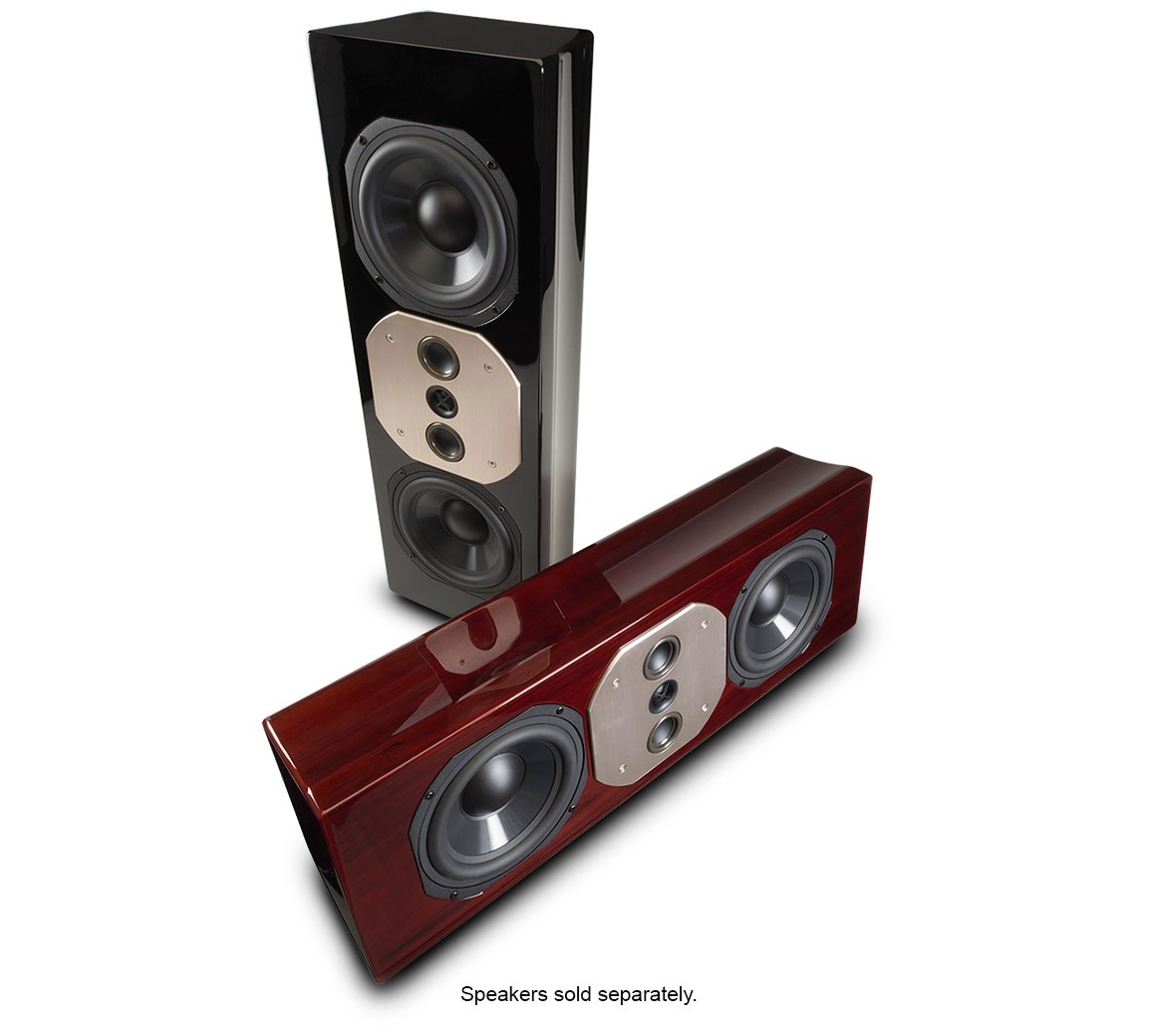

With its flexible design, it can be placed in horizontal, vertical or shelf mounted orientations. Complete mounting hardware is supplied for all positions. The machined alloy, high-frequency array is rotatable to optimize the sound for either vertical or horizontal placement without sonic compromise. McIntosh patented Low Distortion/High Performance (LD/HP®) woofers are combined with two midranges and a dedicated tweeter to deliver lifelike sound. Voiced to match the XR50 and XR100 speakers, the LCR80 may be used for the left, center or right channels in home theater systems or in special stereo applications.

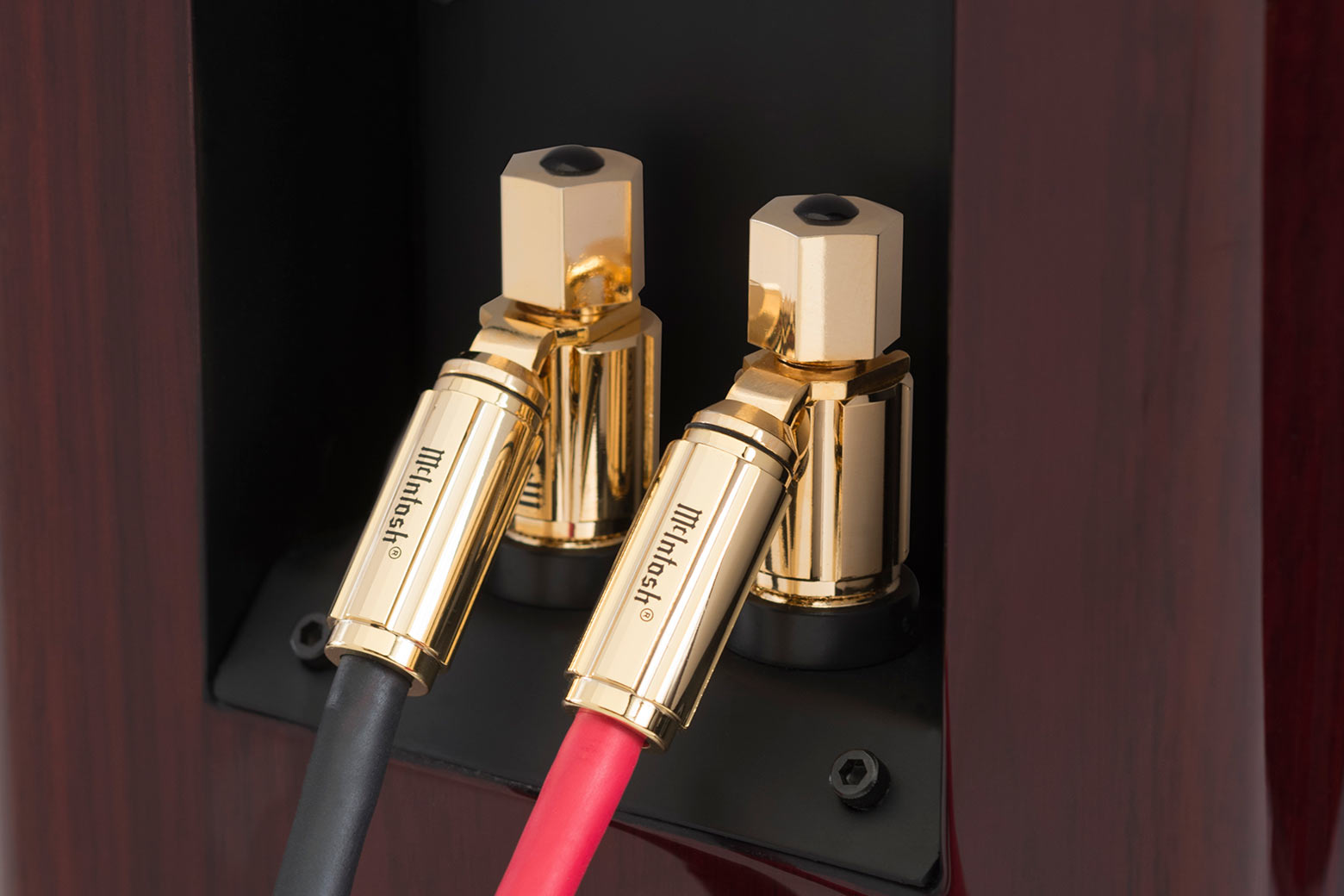

Patented McIntosh Solid Cinch™ speaker binding posts allow for a simple yet secure connection to your speaker cables, helping to ensure the best possible audio performance. Fine gloss wood finishes are offered in Black, Pear Maple and Red Walnut. Amplifiers from 75 to 300 Watts are appropriate power for LCR80. Contact your local dealer to learn more.
-
Specifications
Electronic Specifications
-
- Impedance Nominal
- 8 Ohms
-
- Power Rating
- 75 to 300 Watts
-
- Frequency Response
- 80Hz to 45kHz
-
- Sound Pressure Level, 2.8V/1m
- 81dB
-
- Crossover
- 500Hz, 8kHz
Driver Specifications
-
- Number of Woofers
- 2
-
- Woofer Size
- 6"
-
- Woofer Type
- Cast Frame, LD/HP®, Poly Cone
-
- Number of Midranges
- 2
-
- Midrange Size
- 2"
-
- Midrange Type
- Inverted Titanium Dome
-
- Number of Tweeters
- 1
-
- Tweeter Size
- 3/4"
-
- Tweeter Type
- Titanium Dome
General Specifications
-
- System Type
- Sealed 3-Way Flexible Placement
-
- Grille
- Black knit cloth, magnetically attached
-
- Available Finishes
- Red Walnut, Black, Pear Maple
Weights & Dimensions
-
- Unit Dimensions (W x H x D)
- 24" (61cm) x 8" (20.3cm) x 8-3/8" (21.3cm) (including angled wall mounting brackets)
-
- Unit Weight
- 24 lbs (10.9 kg)
-
- Shipping Weight
- 30 lbs (13.6 kg)
-
-
Downloads
Product Literature User Documents - LCR80 Loudspeaker Brochure (1.8 MB)
-
Reviews & Awards
Reviews & Awards

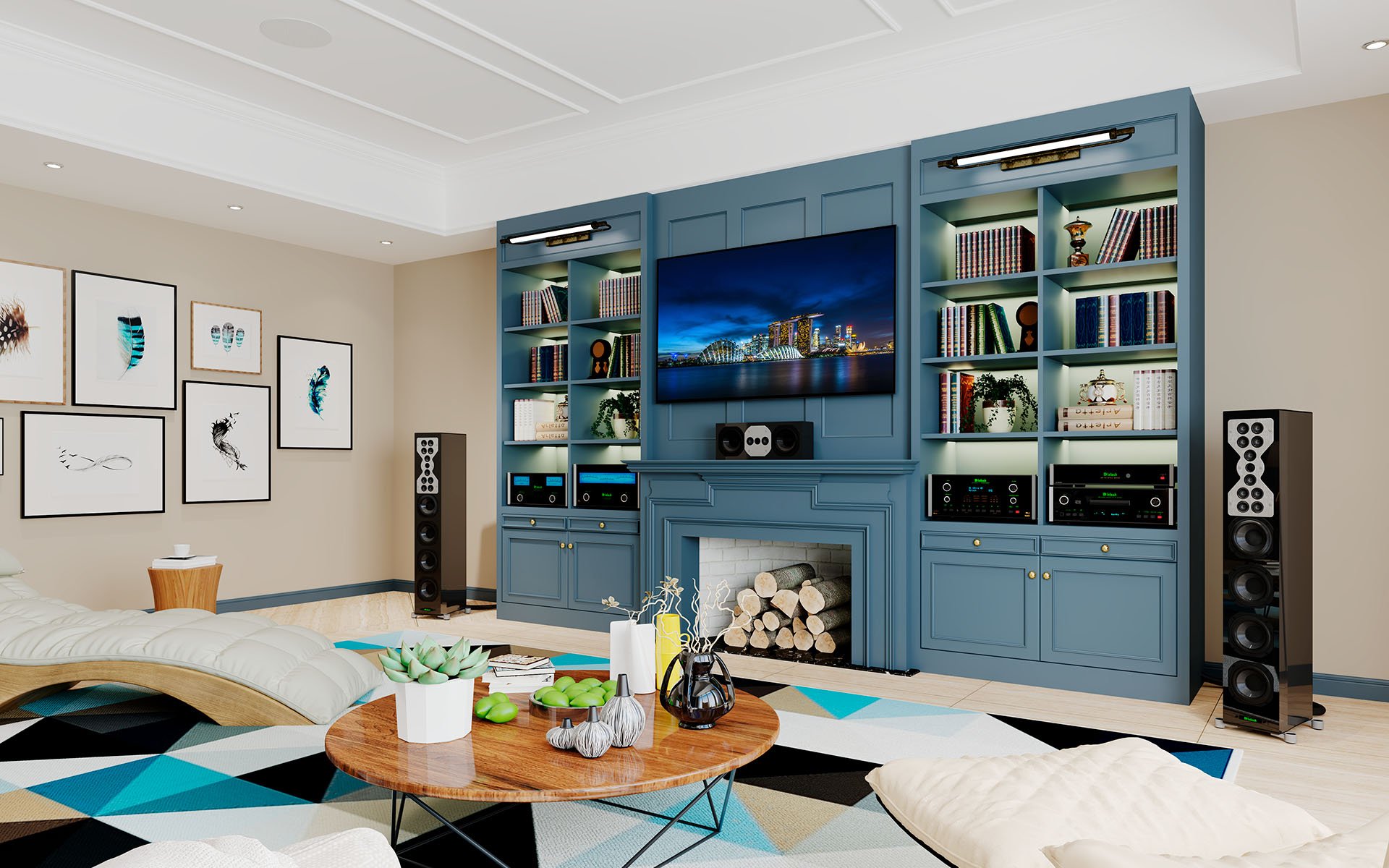

LCR80 LCR Loudspeaker is also part of the Westchester III Home Theater System
