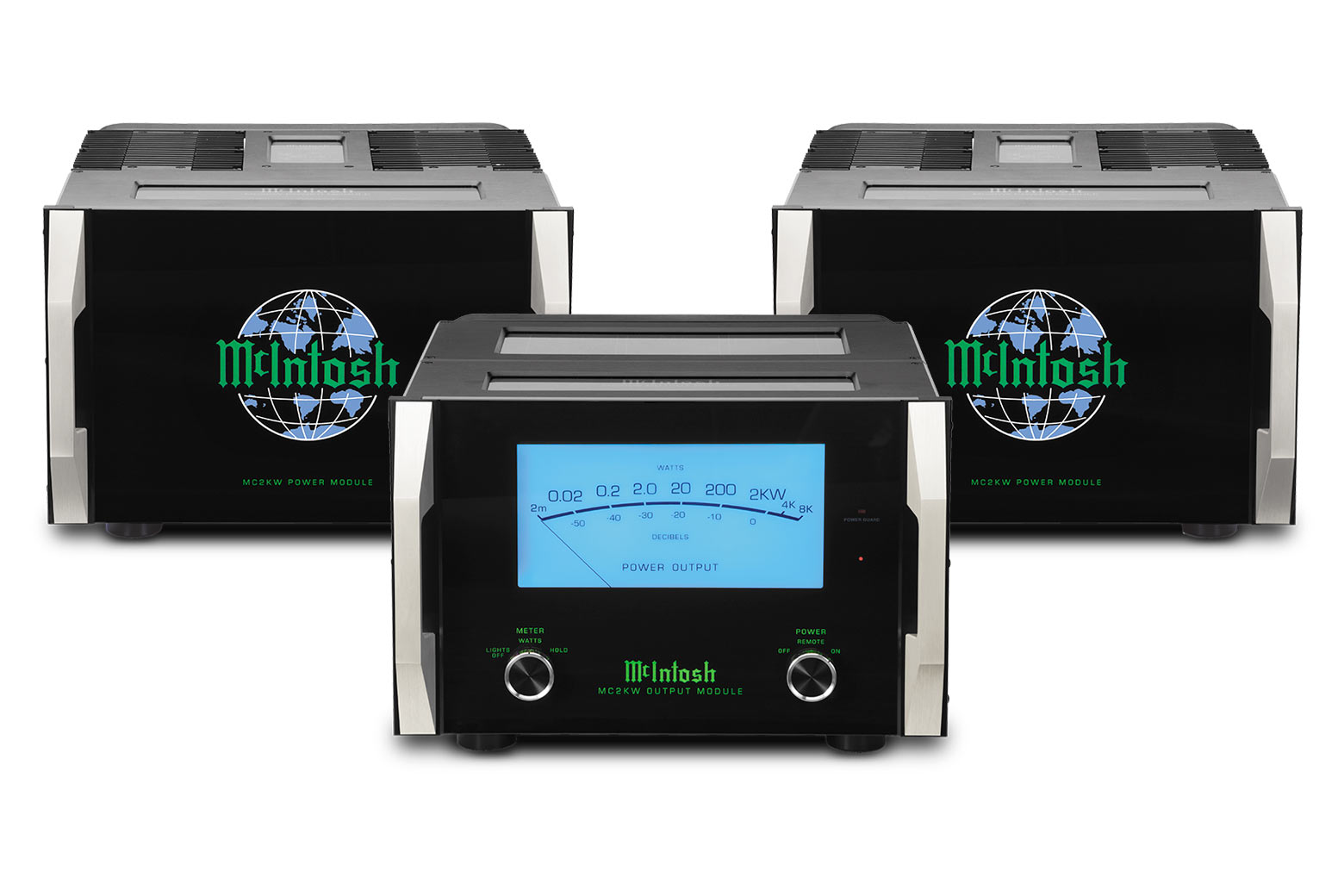

MC2KW 1-Channel Solid State Amplifier

Electronic Specifications

• FTC Power Output Rating

  2000 W

• Power Output per Channel

  2000 W into 2, 4 or 8 ohms

• Number of Channels

  1

• Total Harmonic Distortion

  0.005%

• S/N below rated output

  123dB Unbalanced; 127dB Balanced

• Dynamic Headroom

  2dB

• Damping Factor

  >40 Wideband

• Rated Power Band

  20Hz to 20kHz

• Frequency Response

  +0, -0.25dB from 20Hz to 20kHz
  +0, -3dB from 10Hz to 100kHz

Control

• Remote Power Control

• Multi-Channel DB25 Cable

General Specifications

• Circuit Configuration

  Quad Balanced

• Circuit Design

  Solid State

• Mono Bridge

• Mono Parallel

• Output Type

  Autoformer™

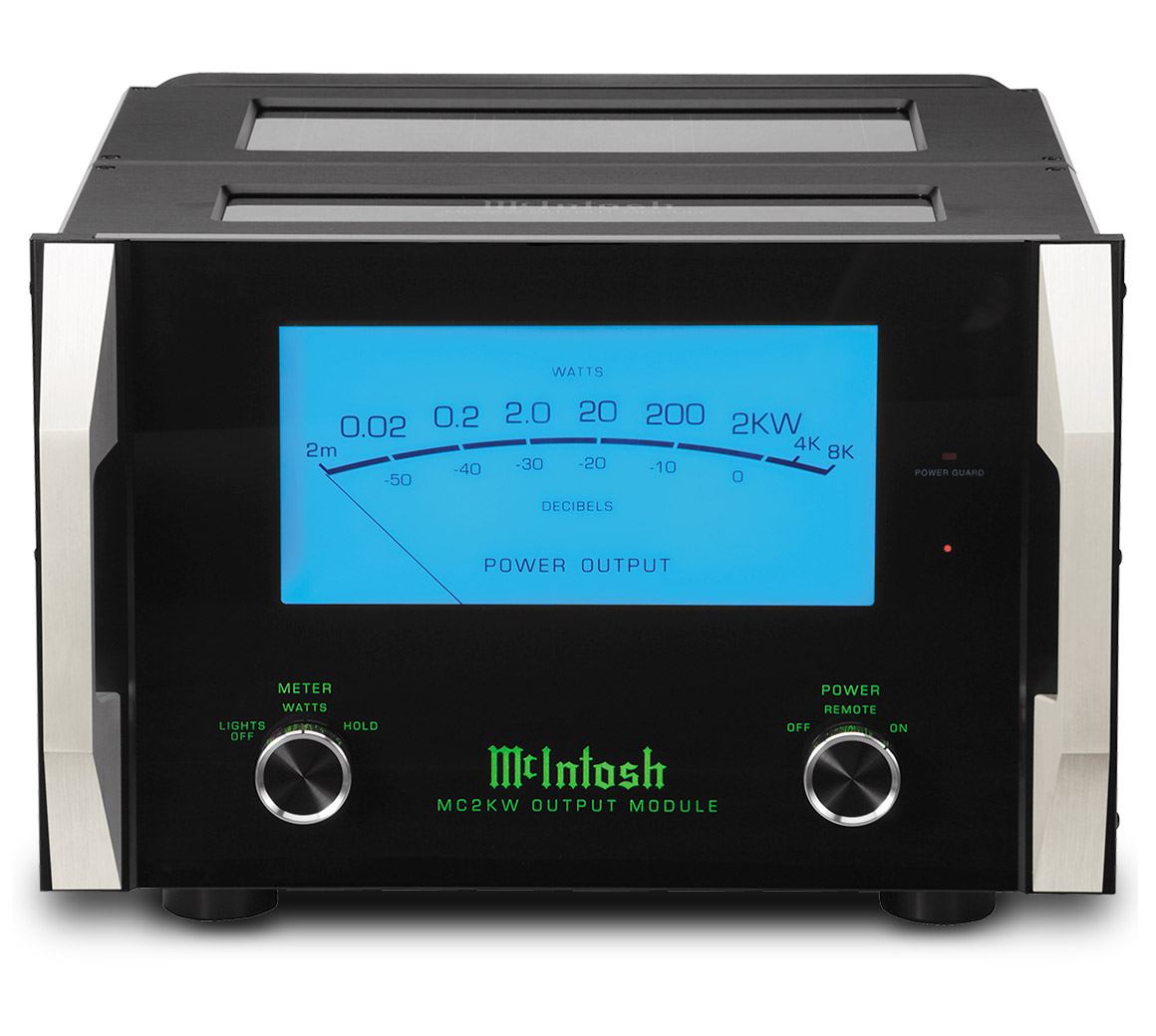

• Meters

• Meter Light Switch

• Balanced Input

  Yes-2

• Front Panel

  1/2" Glass with handles

• Illumination

  LED Fiber Optic

• Chassis Style

  Open Stainless Steel (each module)

Connectivity

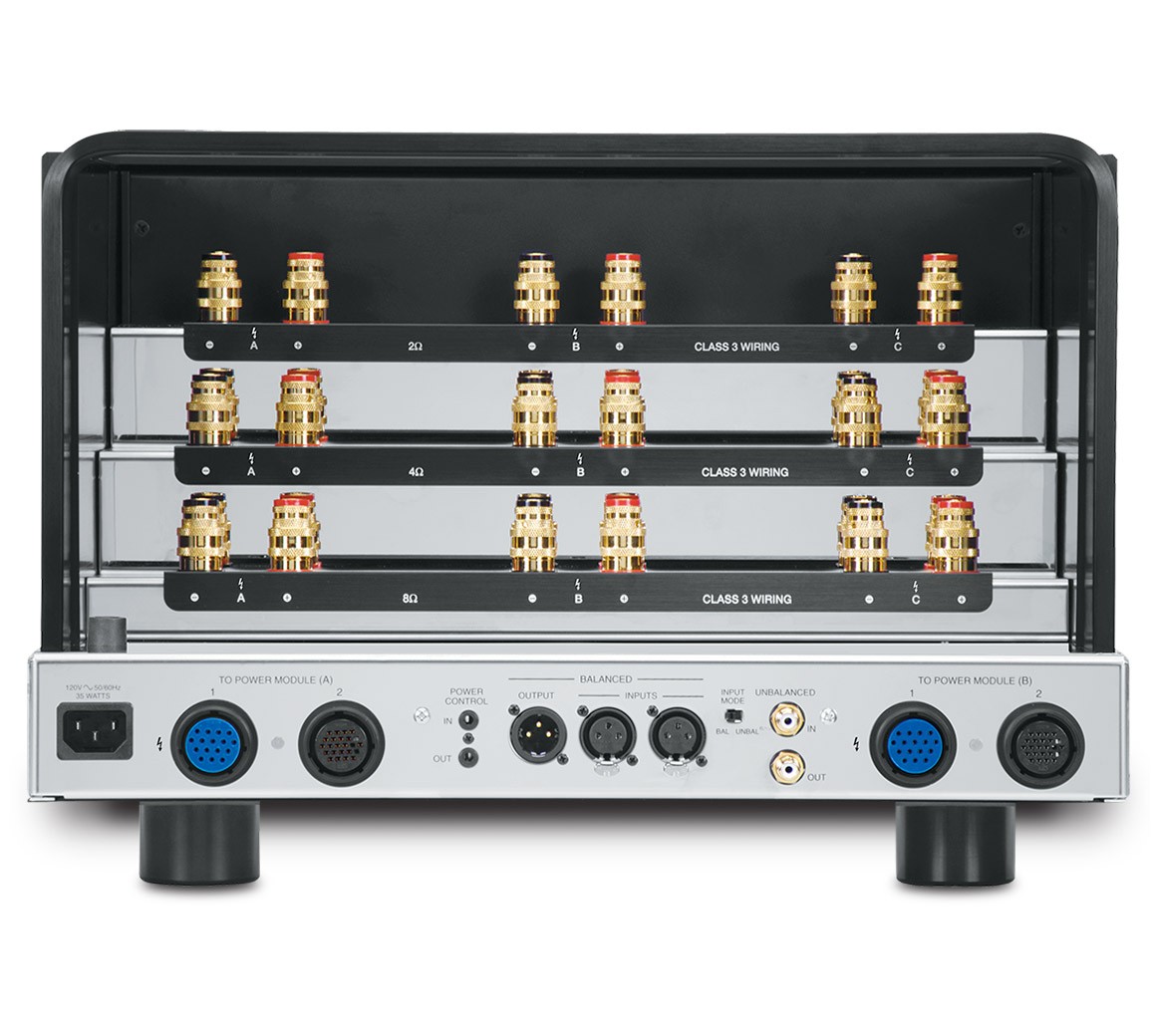

• Speaker Binding Post Type

  Yes, 200 amp, 3 sets for each tap

Weights & Dimensions

• Unit Dimensions (W x H x D)

  Each Module: 17-3/4" (45.09cm) x 12-5/16" (31.27cm) (including feet) x 26-5/8" (62.54cm) (including the front panel, handles, knobs and interconnect cables)

• Unit Weight

  Output Module (1 included): 123 lbs (55.8 kg);
  Power Module (2 included): 127 lbs (57.6 kg) ea

• Shipping Weight

  Output Module (1 included): 148 lbs (67.1 kg);
  Power Module (2 included): 152 lbs (68.9 kg) ea
