MEN220 Room Correction System

Uses sophisticated RoomPerfect™ Room Correction Technology
Works on 1/12 Octaves
2-Way Electronic Crossover for Bi-amping

Eligible for online purchase?

3 Year Limited Warranty

Add to WishlistRemove From Wishlist

Print this page

Ask an Expert

MEN220 Room Correction System

3 Year Limited Warranty

Print this page

Ask an Expert

Add to WishlistRemove From Wishlist

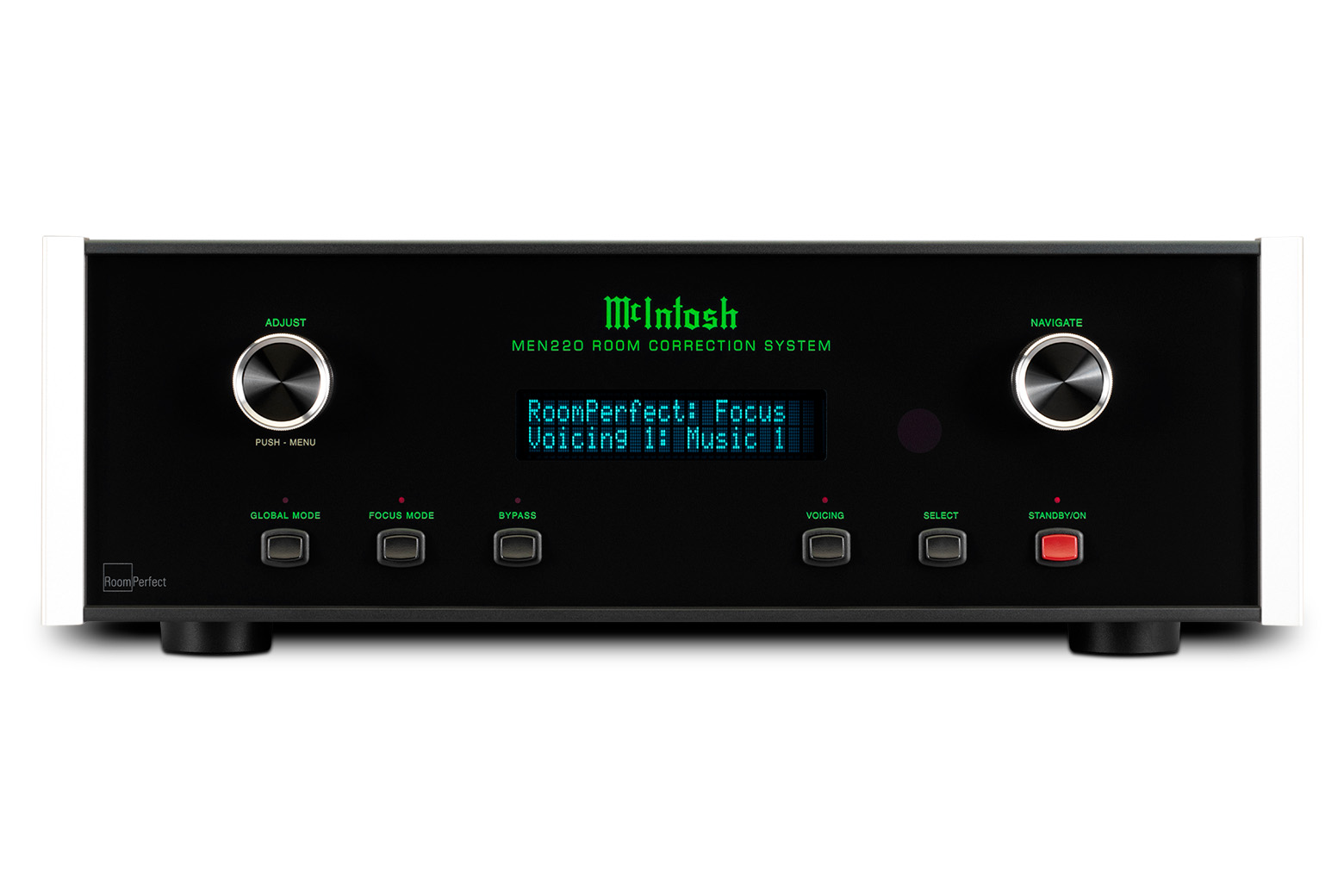

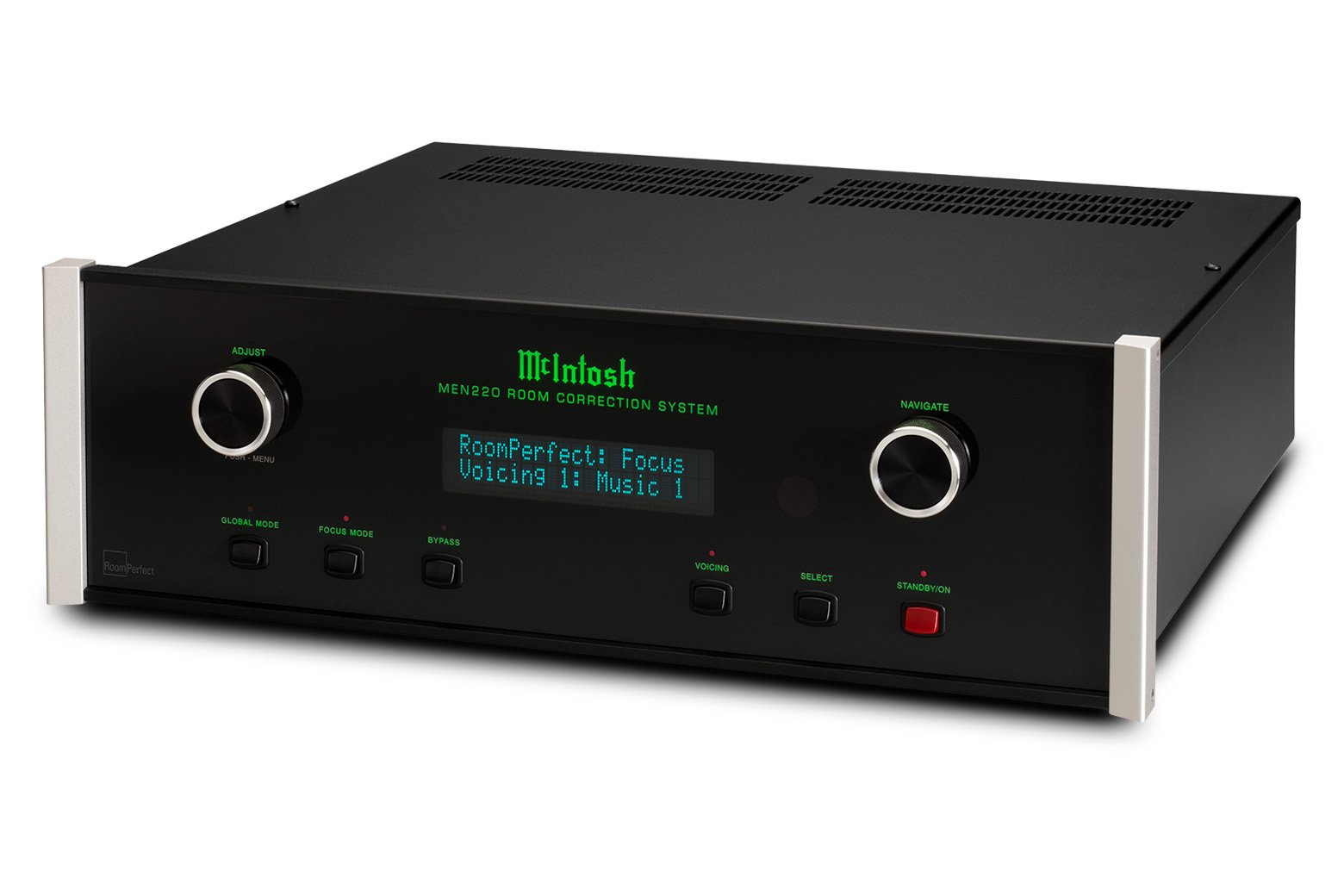

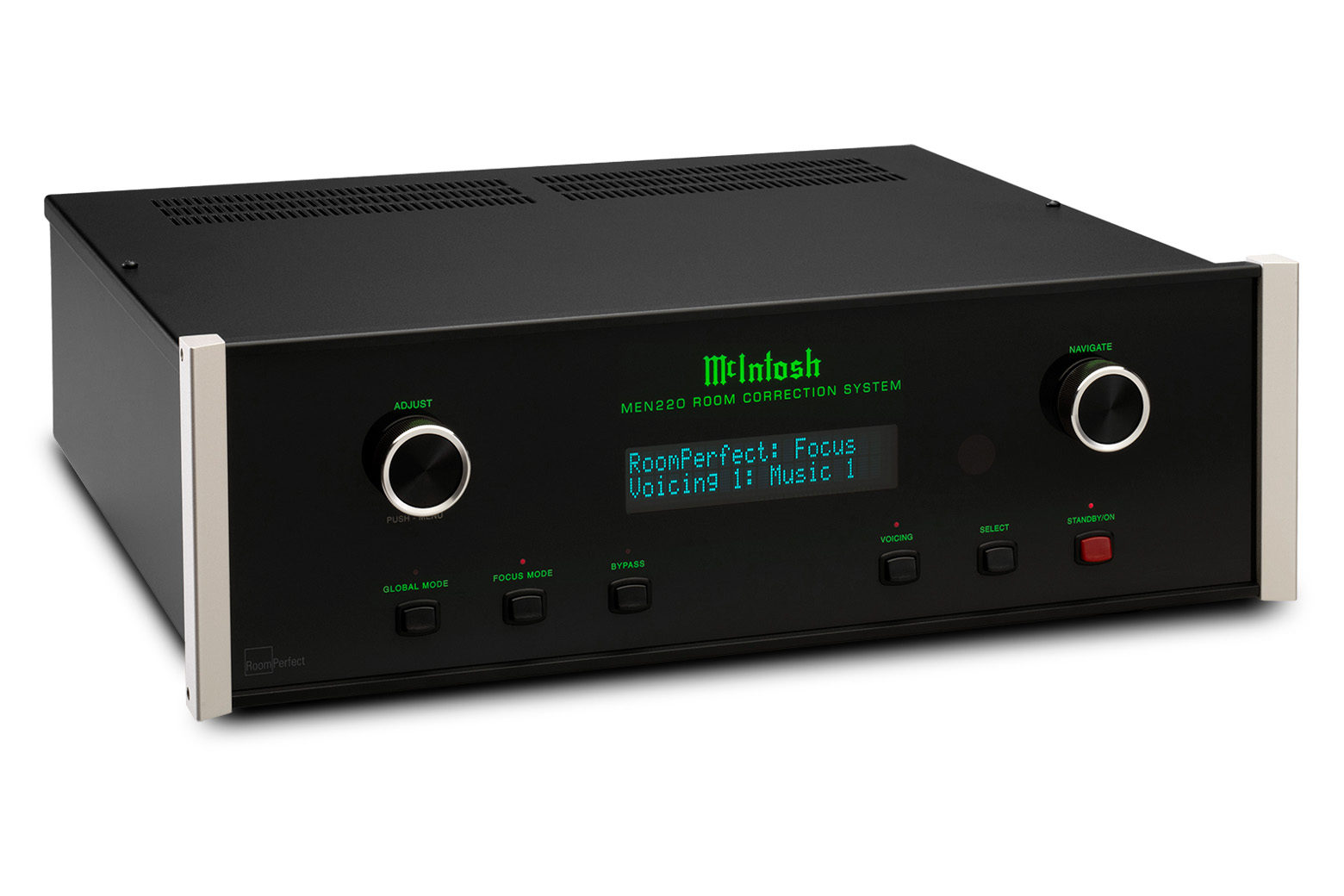

The MEN220 delivers a potent suite of Room Correction, Custom-EQ and 2-Way Crossover capabilities in one easy-to-use stereo component. While any single feature of the MEN220 has the power to optimize the sonic characteristics of the highest quality audio systems, combining all the features can reveal a level of clarity and resolution unattainable by any other means.

"I have never heard my speakers sound so wonderful!" - Michael (customer review)

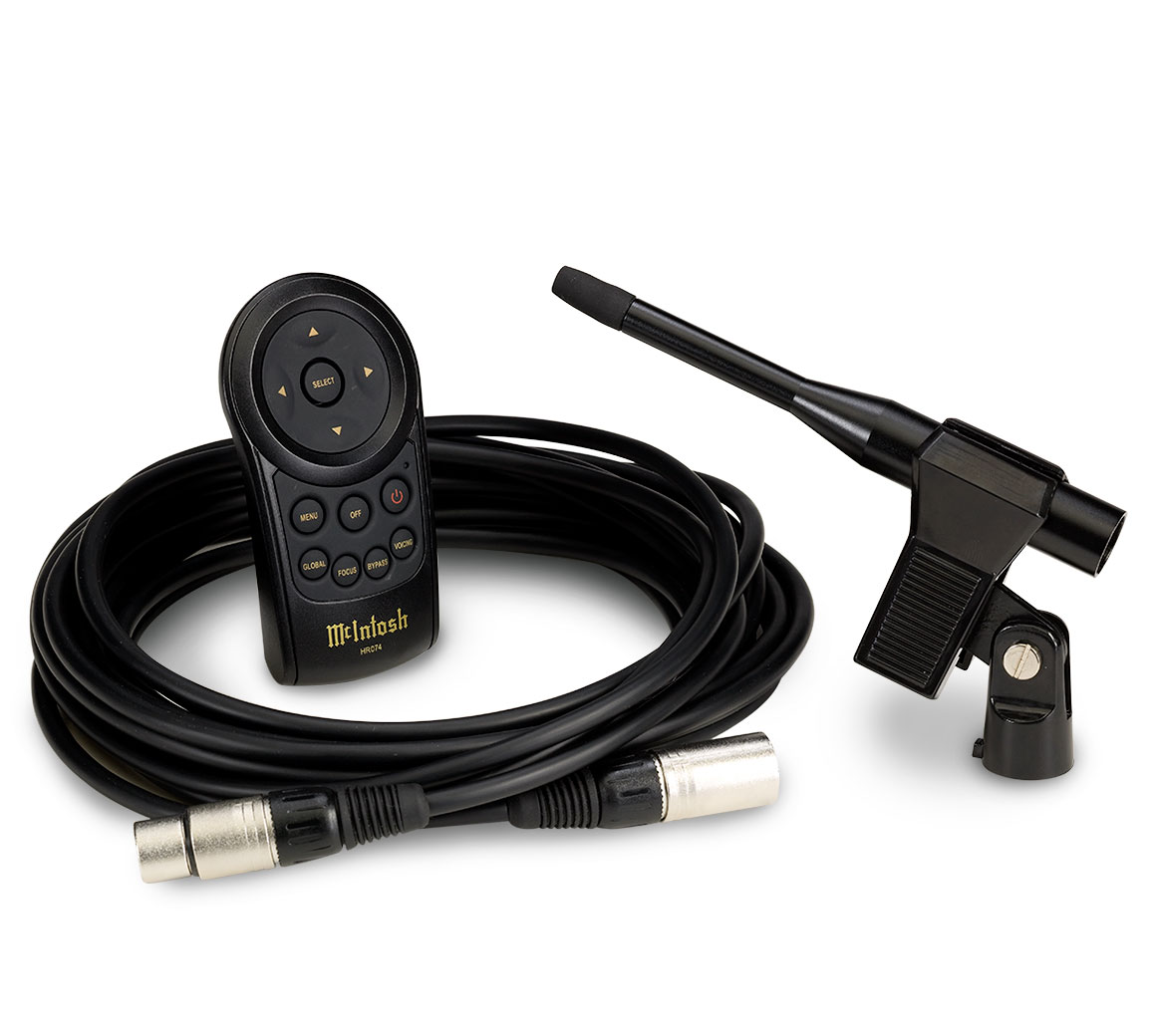

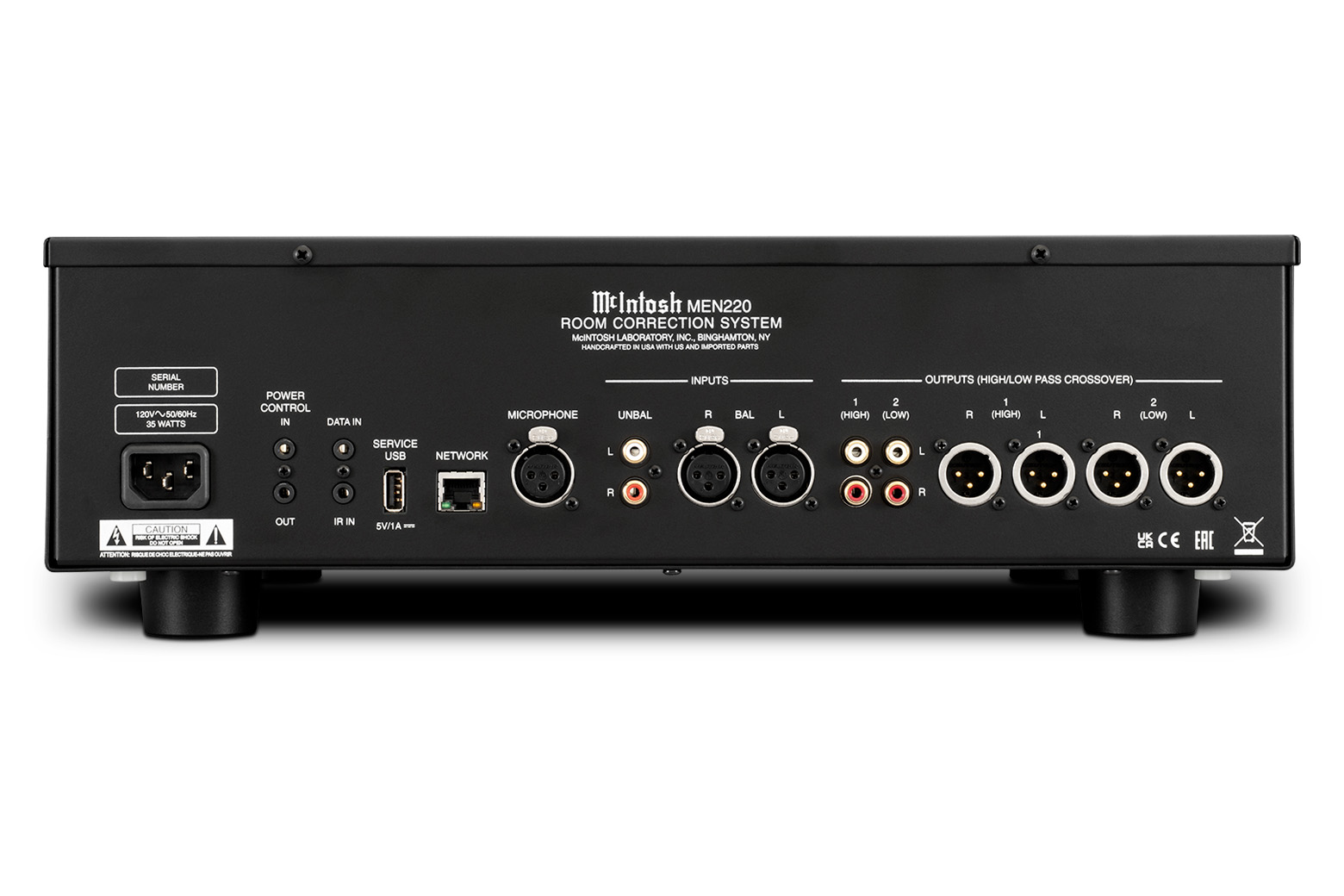

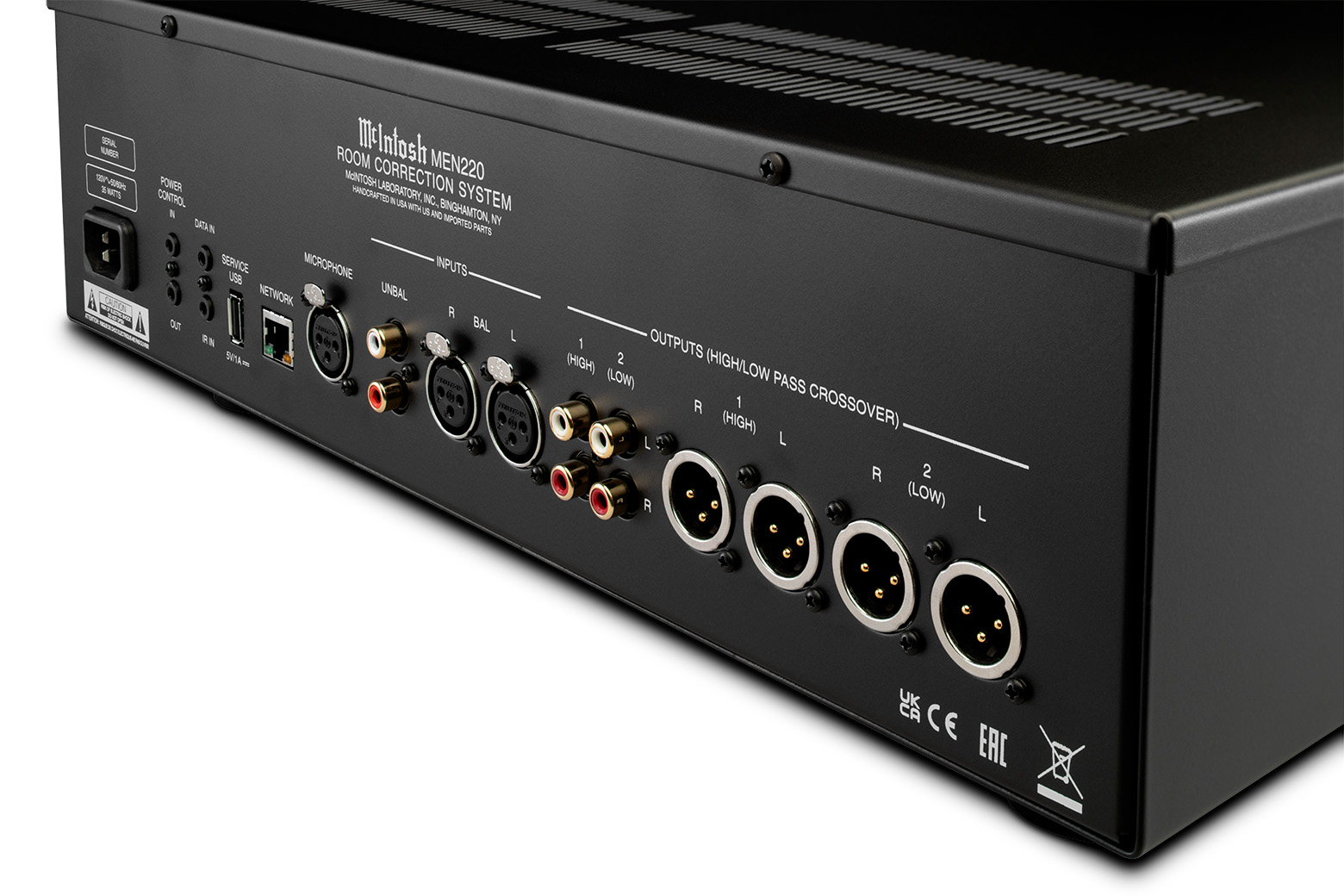

Full system control and PC link are provided via RS232 while McIntosh data, power control and IR inputs offer additional remote control flexibility. Both single-ended and balanced connections are supported; a hand-held, IR remote control is included. Contact your local dealer to learn more.

ROOMPERFECT is a registered trademark and the ROOMPERFECT logo is a trademark of Lyngdorf Audio A/S.

Specifications
Electronic Specifications
Unless noted, the following were taken with RoomPerfect set to Bypass Mode and Voicing Mode set to Neutral.
- Frequency Response

  +0, -0.5dB from 20Hz to 20,000Hz
- Total Harmonic Distortion

  0.002% from 20Hz to 20,000Hz
- Maximum Input Voltage

  4.5V Unbalanced and Balanced (Preamp-Power Amp)
  2.25V Unbalanced and Balanced (Processor Loop)
- Maximum Output Voltage

  4.5V Unbalanced and Balanced (Preamp-Power Amp)
  2.25V Unbalanced and Balanced (Processor Loop)
- Signal To Noise Ratio (A-Weighted)

  100dB
- Input Impedance

  10K ohms Unbalanced and Balanced
- Voltage Gain

  0dB
- Output Impedance

  50 ohms
- Crossover Filter Types, Order and Slope

  Butterworth, 1st order, 6 dB/octave
  Butterworth, 2nd order, 12 dB/octave
  Butterworth, 4th order, 24 dB/octave
  Linkwitz-Riley, 2nd order, 12 dB/octave
  Linkwitz-Riley, 4th order, 24 dB/octave
  Linkwitz-Riley, 8th order, 48 dB/octave
Weights & Dimensions
- Unit Dimensions (W x H x D)

  17-1/2" (44.45cm) x 6" (15.24cm) x 18" (45.72cm) (including front panel, knobs and cables)
- Unit Weight

  25.5 lbs (11.6 kg)
- Shipping Weight

  41.9 lbs (19 kg)

Downloads

Product Literature	User Documents	Software Updates
MEN220 Room Correction System Brochure (1.29 MB)	MEN220 Room Correction System Owner's Manual (7.15 MB) MEN220 Room Correction System Connection Diagram and Connection in a Processor Loop (1.59 MB) MEN220 Room Correction System Crossover and Subwoofer Connection Diagrams (1.83 MB) MEN220 Room Correction System Graphs and Set Up Menus (0.47 MB) MEN220 Room Correction System PC Guide for Custom Equalization Curves (4.97 MB) Important Additional Operation Information Guide - Lithium Batteries (4.91 MB)	MEN220 Voicing Tool (32-bit) (7.93 MB) MEN220 Voicing Tool (64-bit) (3.17 MB)
