WS300 In-Wall Loudspeaker

Fully enclosed speaker that fits in 2x4 walls
Perfect for distributed audio or home theaters
Up to 250 Watt Power Rating

Eligible for online purchase?

5 Year Limited Warranty

Add to WishlistRemove From Wishlist

Print this page

COMPARE

Ask an Expert

WS300 In-Wall Loudspeaker

5 Year Limited Warranty

Print this page

COMPARE

Ask an Expert

Add to WishlistRemove From Wishlist

The WS300 In-Wall Loudspeaker is a flexible speaker that can be adapted to many custom install uses in 2-channel home audio and home theater installations. For stereo listening, or distributed audio when combined with our MI128 or MI254 distribution amplifiers, a pair of WS300s can provide room filling sound.

For multi-channel home theater, it’s voice matched to our WS500 in-wall speaker and makes a perfect center channel speaker to use when WS500s are used for the front left and right speaker; or an entire home theater can be equipped with WS300s for the front, center and surround sound speakers. Either way, simply add one or more of our CS200 in-ceiling speaker, which is also voice matched to the WS300 and WS500, to complete the at home movie experience.

The 3-way WS300 is fully enclosed to deliver incredible performance in any environment plus a controlled air chamber minimizes distortion and response irregularities. It features one 8" woofer, two 2" inverted Titanium dome midranges and one 3/4" Titanium dome tweeter. The woofer uses a new shallow design that fits in standard 2x4 wall construction to help make installation easy. The woofer utilizes a long throw, high power design with a molded carbon reinforced cone with a molded elastomeric surround for high linearity. The midranges and tweeters are the same drivers used in our XR50 and XR100 home audio speakers and deliver the same level of performance.

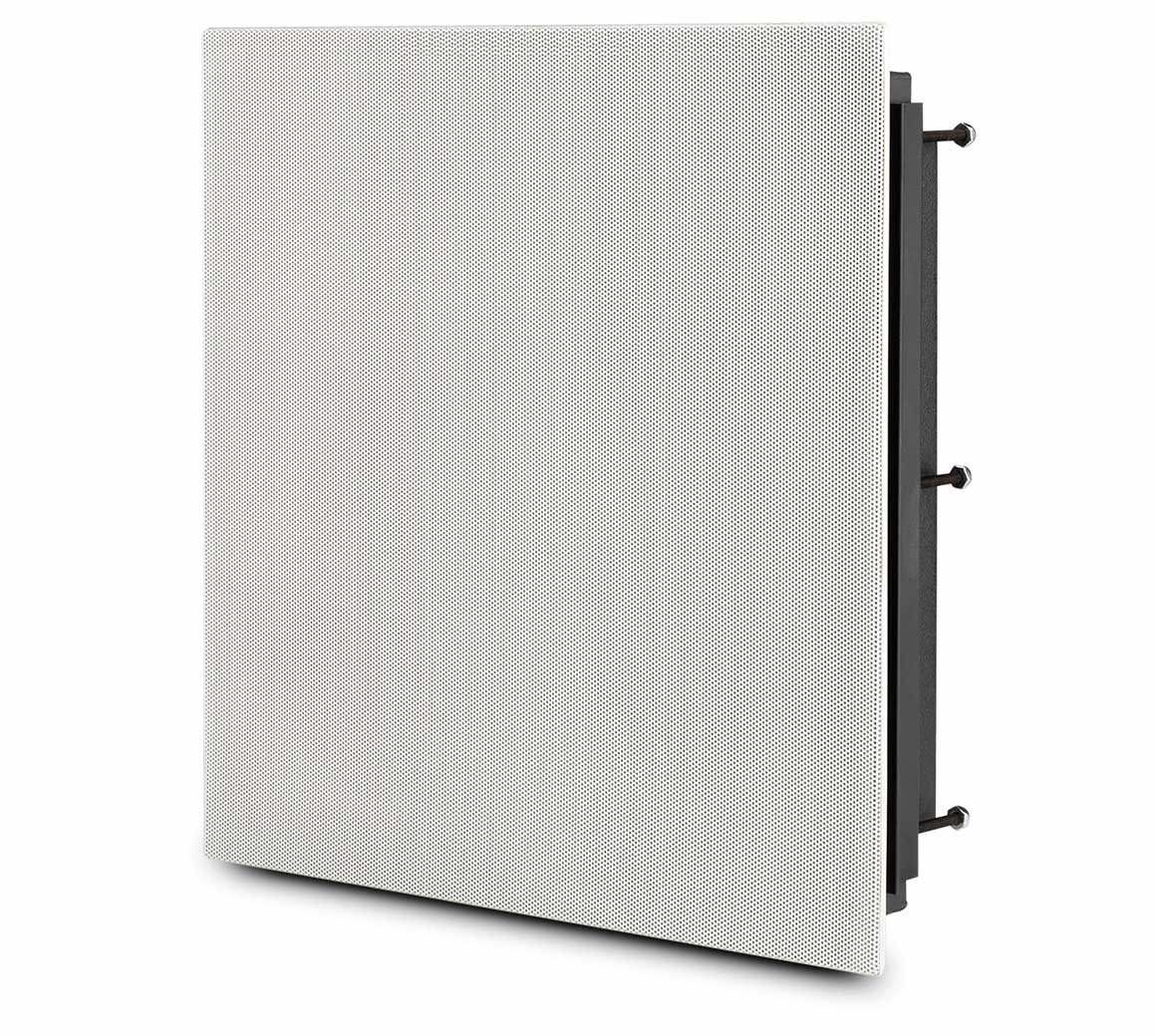

The grille magnetically attaches for easy removal; it is also paintable and will leave little to no visible edge of the mounting flange so the speaker can virtually disappear into its surroundings. It comes with all required hardware and mounting mechanisms for post construction installations. An optional rough-in kit (#RK300) is available if needed. Contact your local dealer to learn more.

Specifications
Electronic Specifications
- Impedance Nominal

  4 Ohms
- Power Rating

  Up to 250 Watts
- Frequency Response

  80Hz to 20kHz
- Sound Pressure Level, 2.8V/1m

  86dB
- Crossover

  350Hz, 2,500Hz
Driver Specifications
- Number of Woofers

  1
- Woofer Size

  8"
- Woofer Type

  Woven Glass Fiber
- Number of Midranges

  2
- Midrange Size

  2"
- Midrange Type

  Inverted Titanium Dome
- Number of Tweeters

  1
- Tweeter Size

  3/4"
- Tweeter Type

  Titanium Dome
General Specifications
- System Type

  3-Way In-Wall
- Grille

  Magnetic metal mesh
- Available Finishes

  Black chassis with white paintable grille
Weights & Dimensions
- Unit Dimensions (W x H x D)

  14-1/4" (36.2cm) x 14-3/8" (36.5cm) x 3-5/8" (9.3cm)
- Unit Weight

  17 lbs (7.7 kg)
- Shipping Weight

  24 lbs (10.9 kg)

Downloads

Product Literature	User Documents
WS500 and WS300 In-Wall Loudspeaker Brochure (1.6 MB)	WS300 In-Wall Loudspeaker Installation Guide (4.59 MB) RK300 Rough-In Kit Installation Guide (for use with WS300 In-Wall Loudspeaker) (0.52 MB)

McIntosh Westchester IV home theater system

WS300 In-Wall Loudspeaker is also part of the Westchester IV Home Theater System
