Home / D/A Converters / MDA200 D/A Converter
McIntosh MDA200 D/A Converter
McIntosh MDA200 D/A Converter
McIntosh MDA200 D/A Converter
McIntosh MDA200 D/A Converter
McIntosh MDA200 D/A Converter

MDA200 D/A Converter

  • Premium Digital Performance
  • Add digital music playback to an all analog system or replace an older, outdated converter
  • Comes with DA2 Digital Audio Module installed

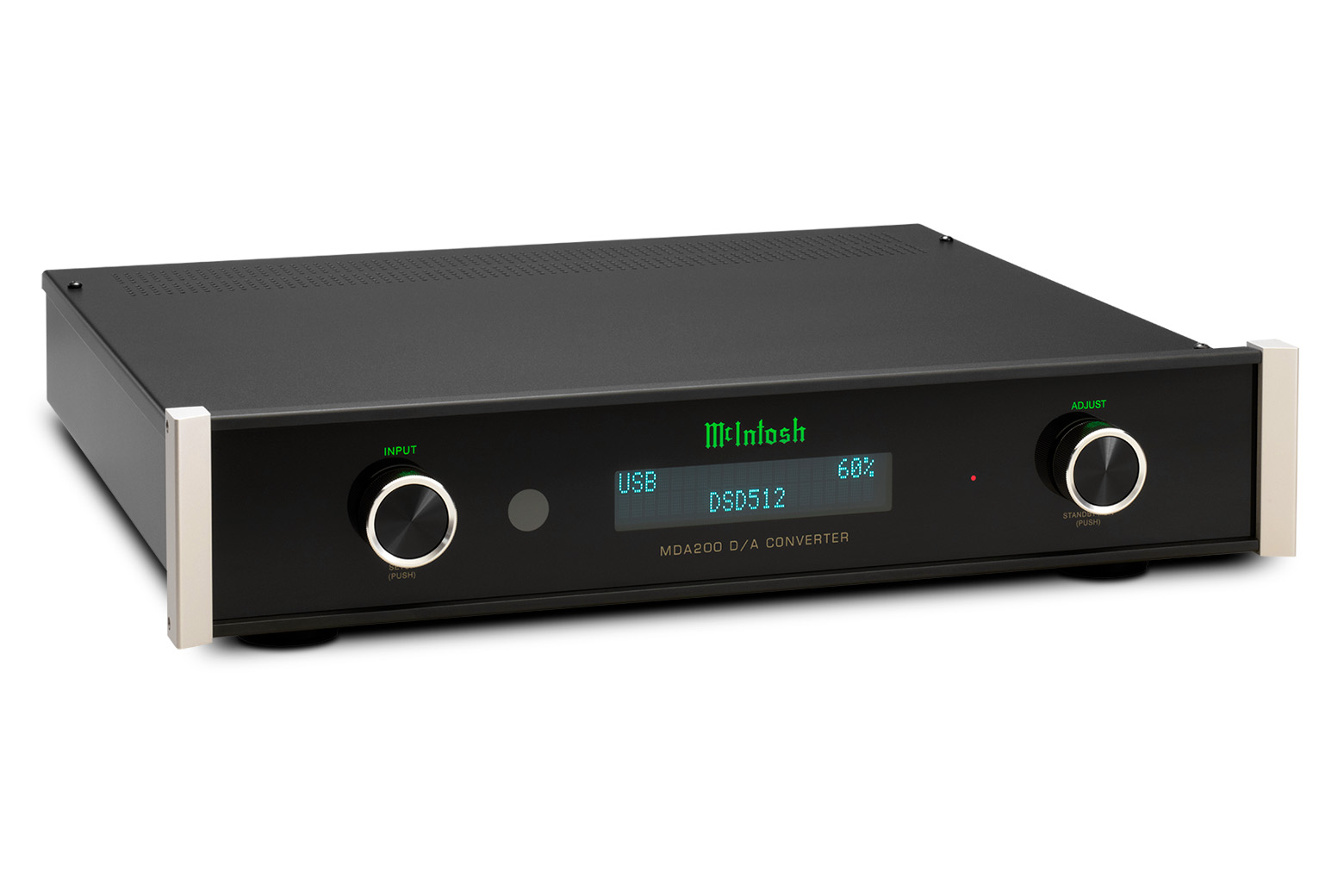

  • Supports up to DSD512 and 24-bit/192kHz
  • 7 digital inputs: 2 coax, 2 optical, 1 USB, 1 MCT, 1 HDMI (ARC)
  • Balanced and unbalanced analog outputs
BUY ONLINE
Eligible for online purchase?
3 Year Limited Warranty
Add to WishlistRemove From Wishlist
Print this page
Ask an Expert
Share

MDA200 D/A Converter

3 Year Limited Warranty
Print this page
Ask an Expert
Share
Add to WishlistRemove From Wishlist
BUY ONLINE
  • Roon Tested logo

Premium Digital Performance.

The MDA200 D/A Converter from McIntosh provides premium digital music capabilities. It can add digital music listening to an otherwise all analog home audio system, or it can also be a useful upgrade to an older D/A Converter that has become outdated and needs to be replaced so you can achieve better playback performance and enjoy current features. It is a stand-alone, outboard D/A Converter that can easily be added to home audio systems of various sizes, ages, and configurations.

The MDA200 offers a variety of digital inputs.

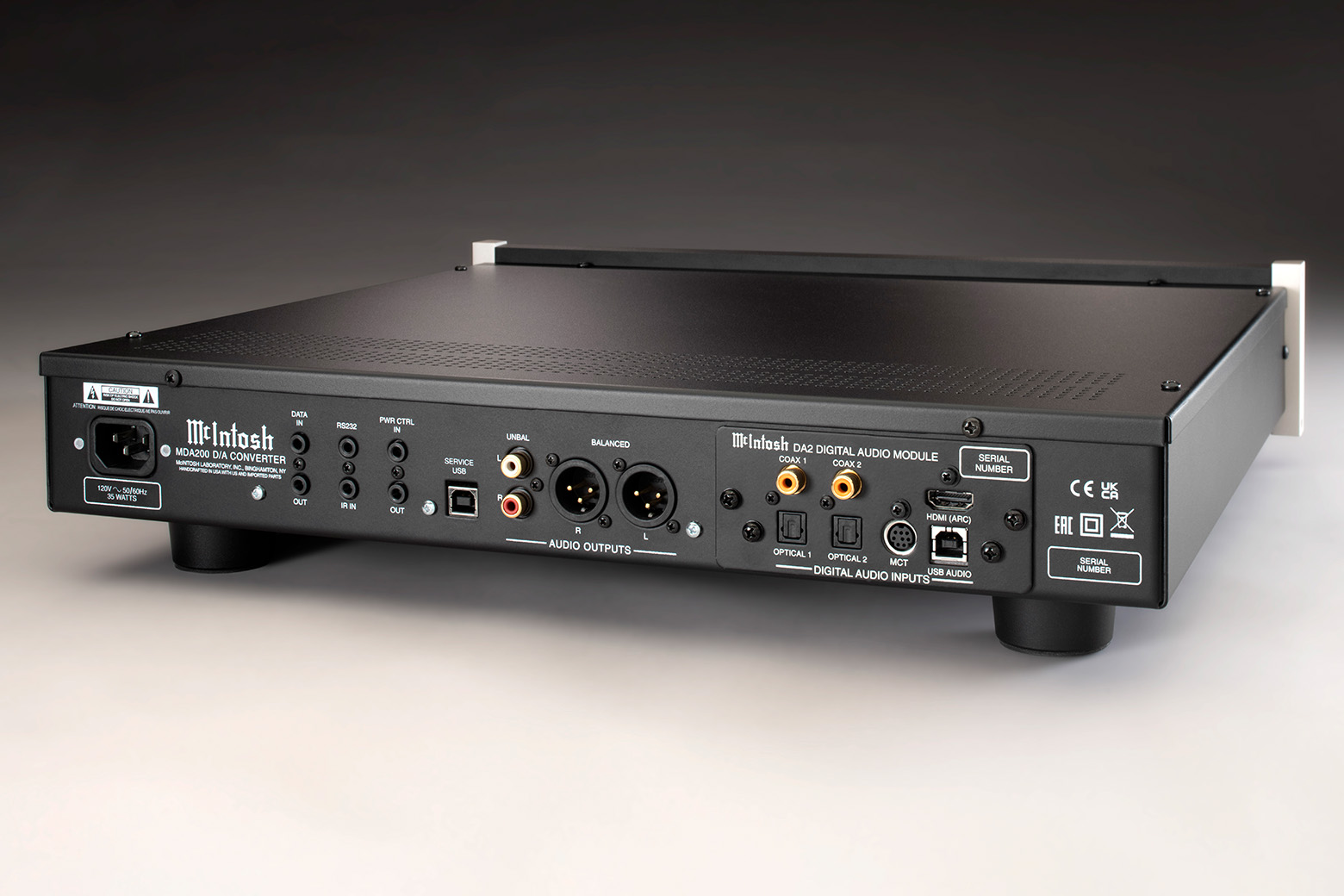

At the heart of the MDA200 is the McIntosh DA2 Digital Audio Module. The DA2 has 7 digital audio inputs: 2 coaxial, 2 optical, 1 USB and 1 MCT (for use with our MCT series of SACD/CD Transports), and 1 audio-only HDMI Audio Return Channel (ARC)1 connection. The DA2 is powered by a next generation, Quad Balanced, 8-channel, 32-bit Digital-to-Analog Converter (DAC). This audiophile-grade DAC features improved dynamic range and improved total harmonic distortion. The DA2 supports high resolution digital audio playback, as the USB input supports native playback of up to DSD512 and DXD up to 384kHz, while the coax and optical inputs can decode digital music up to 24-bit/192kHz.

"Capable of providing world-class sound that is warm, engaging and musically easy to listen to. If you are upgrading from a legacy digital component and you power this with any number of HD music sources…you are going to get some drastically upgraded sound that anybody can hear and that everybody can enjoy." - Future Audiophile

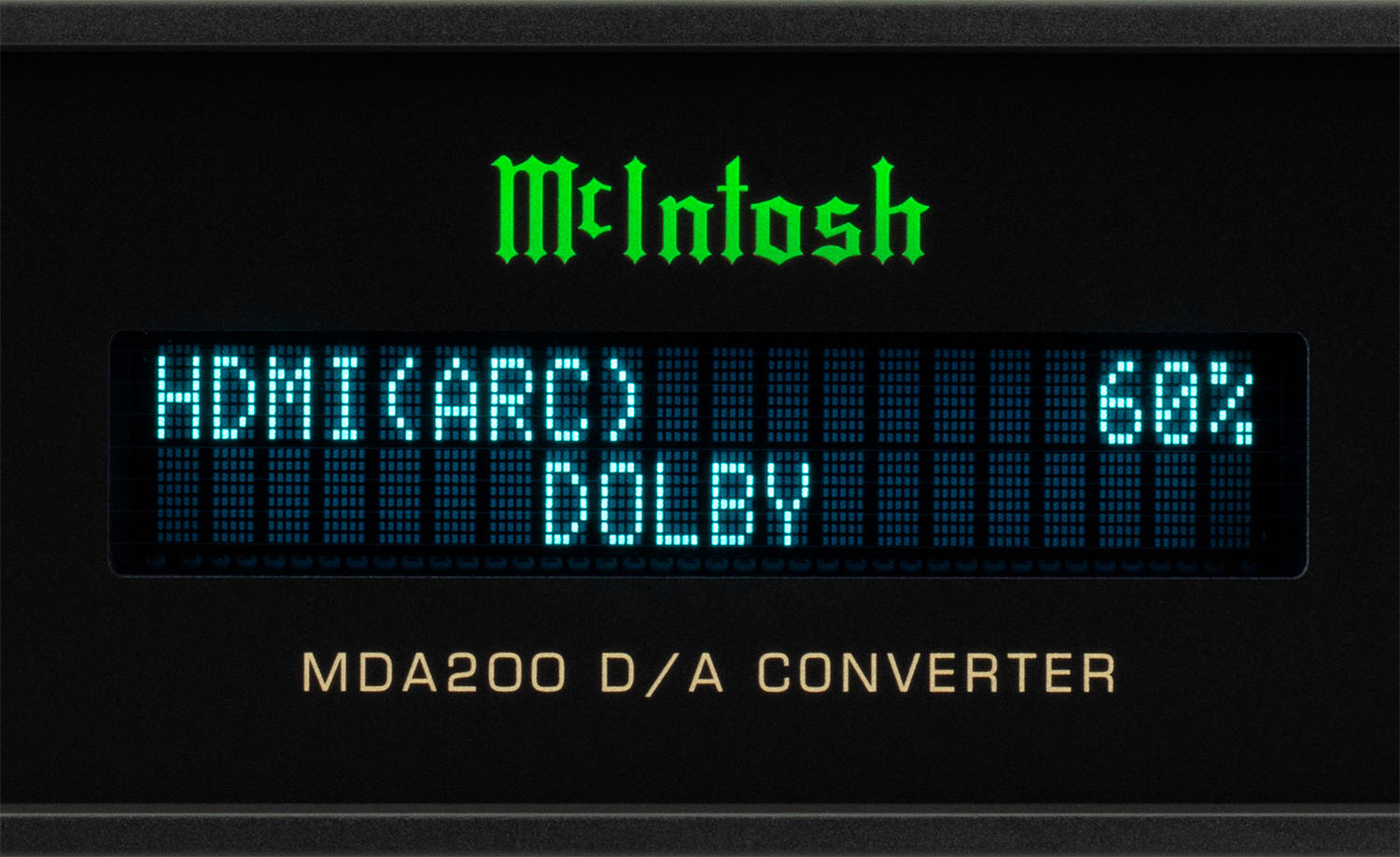

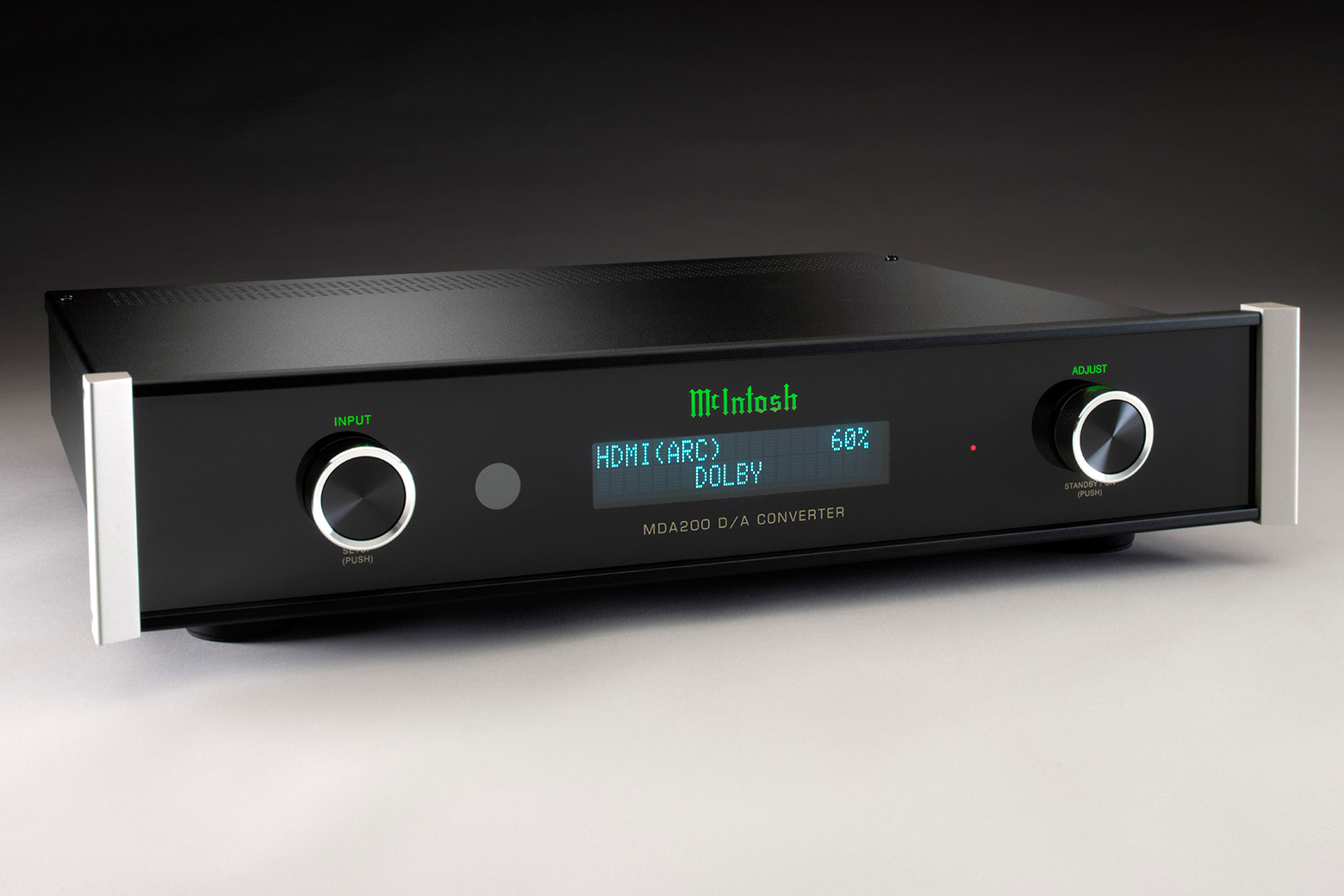

The HDMI (ARC) input allows TVs with a compatible HDMI (ARC) output to be connected to your home stereo system to bring a new level of audio performance to your TV and movie watching that TV speakers or soundbars just can't provide. Popular multi-channel audio formats from Dolby® and DTS® are supported and will be expertly converted to 2-channel audio for proper playback.

McIntosh MDA200 D/A Converter

The DA2 has received Roon Tested designation from Roon Labs, which can be especially useful if you have an extensive library of digital music. As a Roon Tested partner, McIntosh has provided equipment to Roon for testing with a variety of different operating systems and computers, and shared information about its design and capabilities.

Additionally, since digital music formats and technologies change and improve over time, it is possible to replace the DA2 in the MDA200 with a newer Digital Audio Module should one be introduced in the future. This protects your investment in the MDA200 and provides peace of mind that it can be enjoyed as a valuable part of your home entertainment system for many years to come.

McIntosh MDA200 D/A Converter

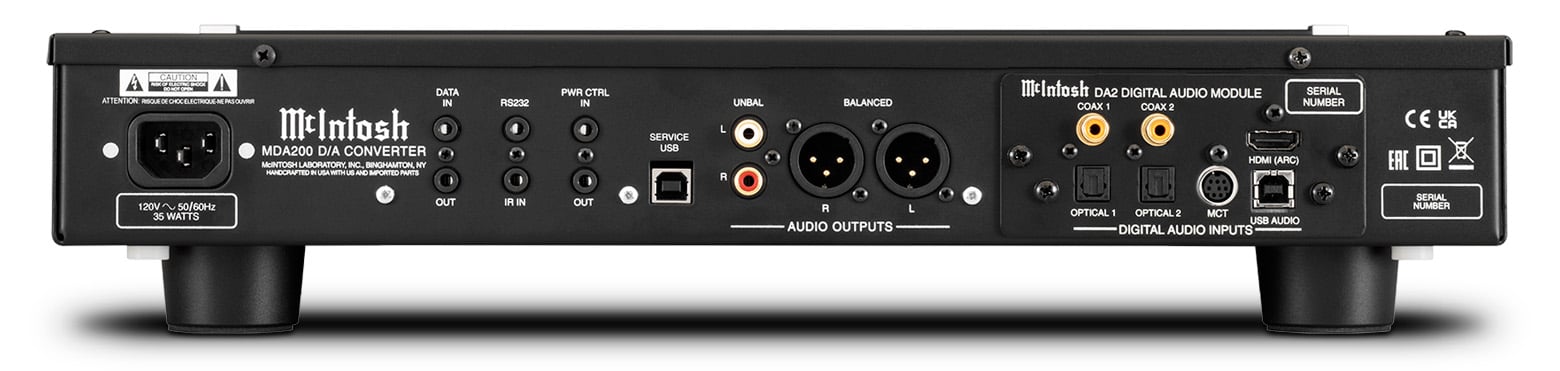

To connect the MDA200 to your sound system's preamplifier or integrated amplifier, it has a pair of both balanced and unbalanced analog outputs. McIntosh offers both balanced cables and unbalanced cables to make these connections.

The MDA200 comes from the factory in fixed output mode, but it does offer the option of setting its output to variable mode. This provides the ability to directly connect the MDA200 to a power amplifier in an audio system that only has digital audio sources; no other preamplifier would be needed in this setup. Volume could then be changed via the front panel ADJUST knob or with the supplied remote control.

McIntosh MDA200 D/A Converter

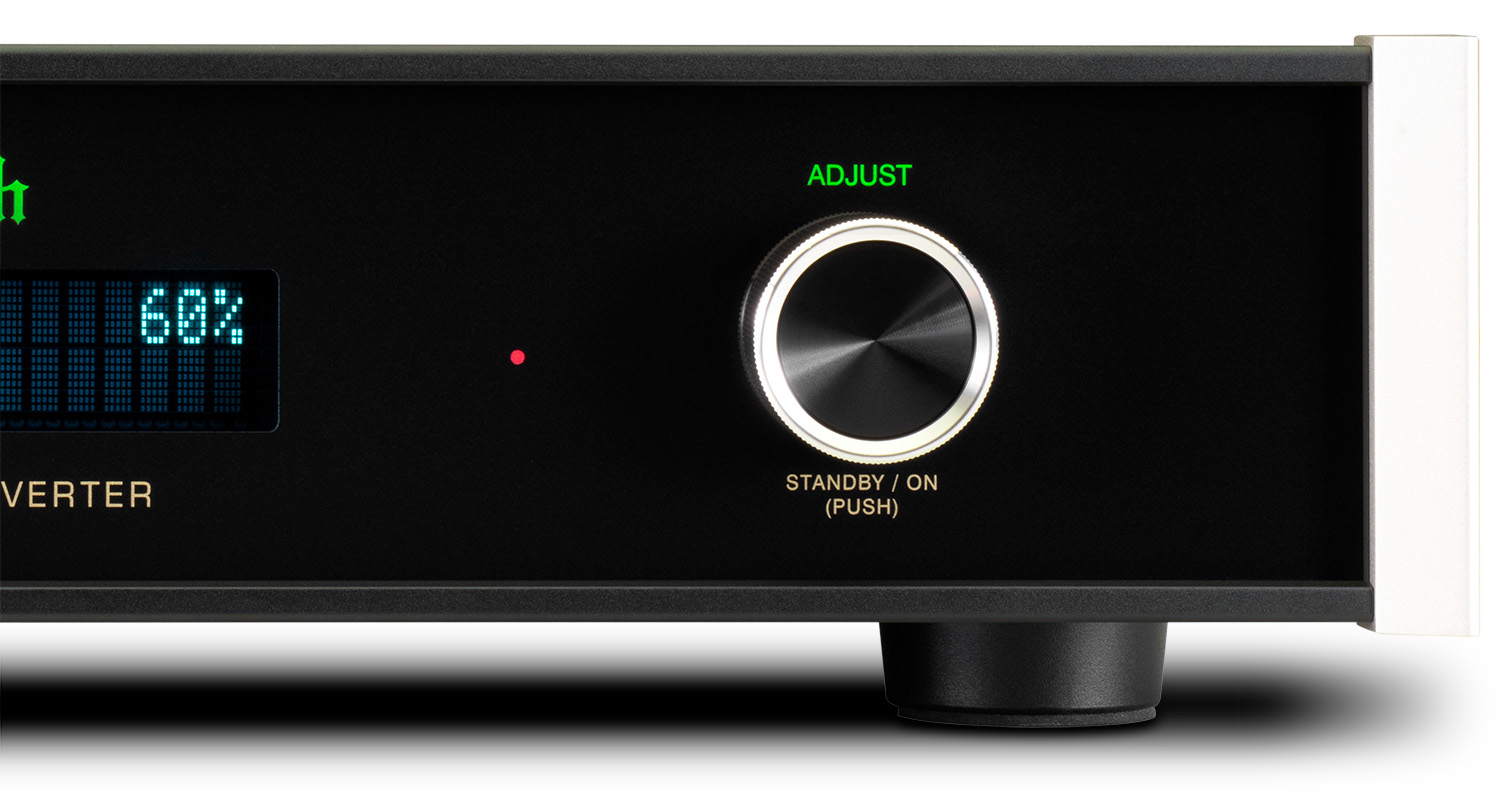

When used in variable output mode, volume could be changed via the front panel ADJUST knob or with the supplied remote control.

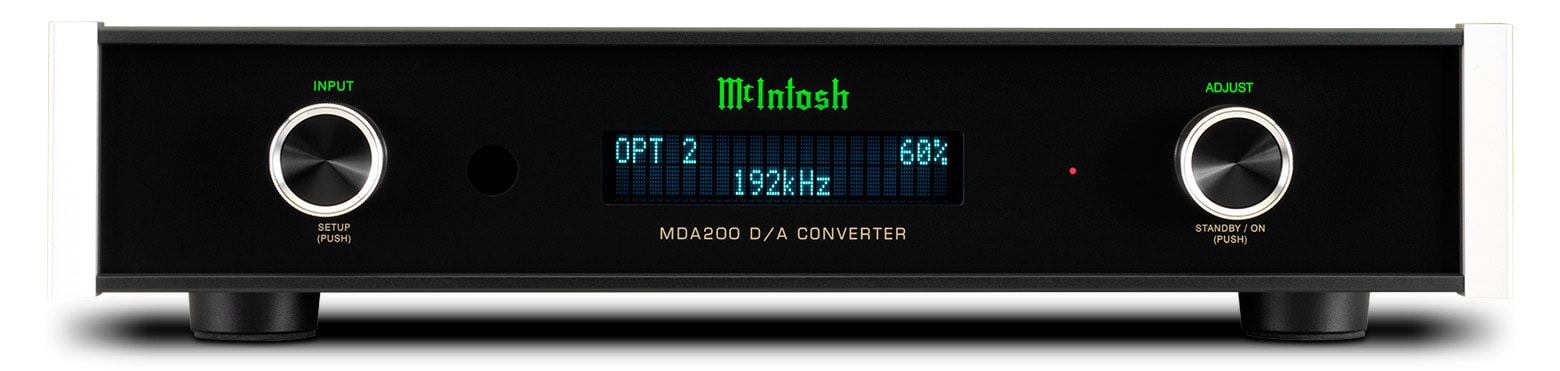

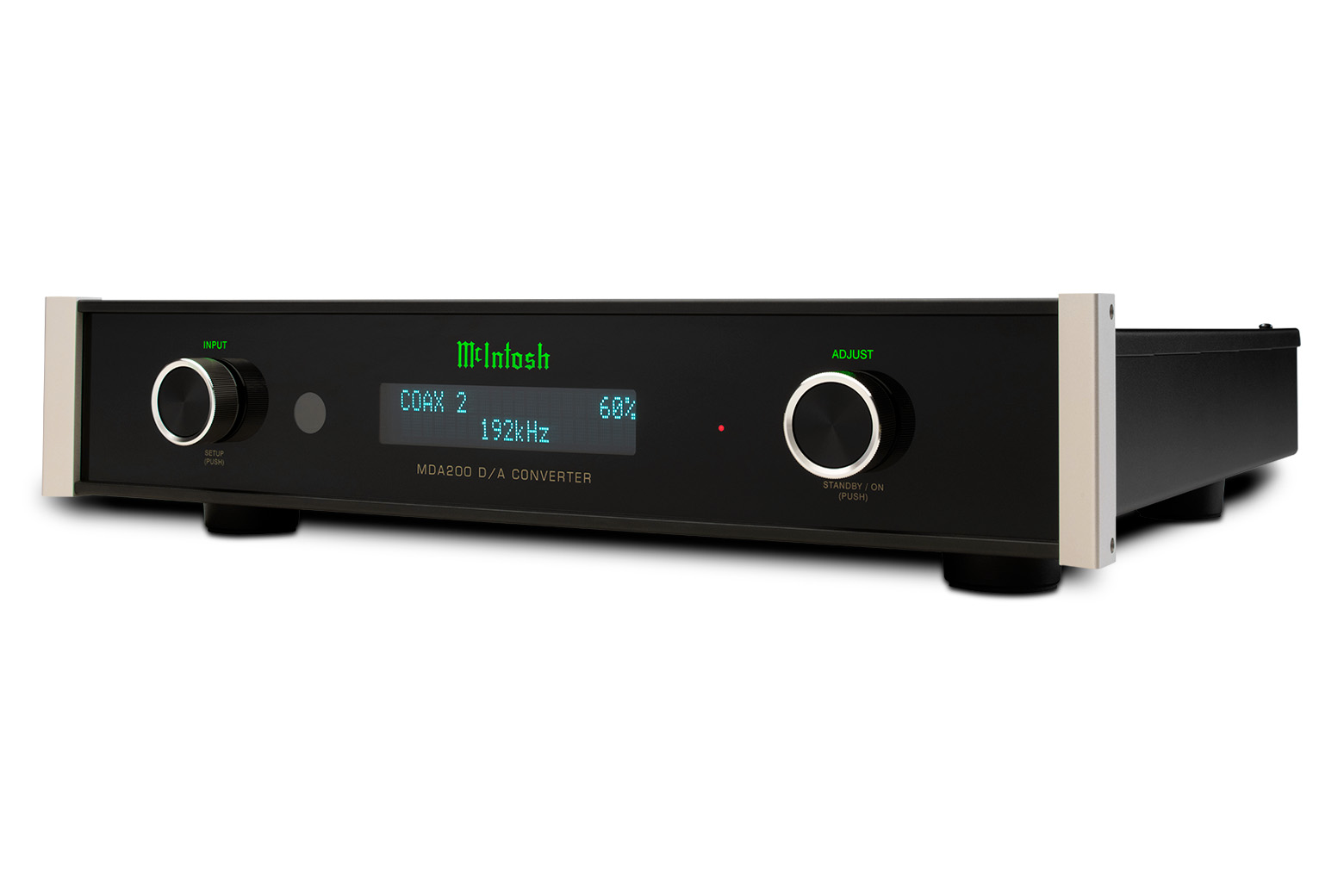

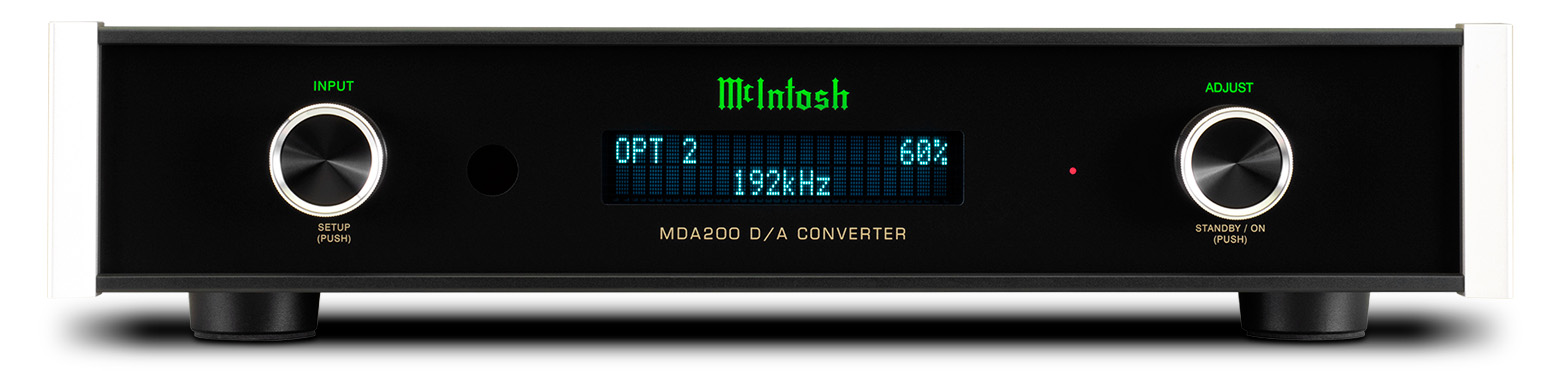

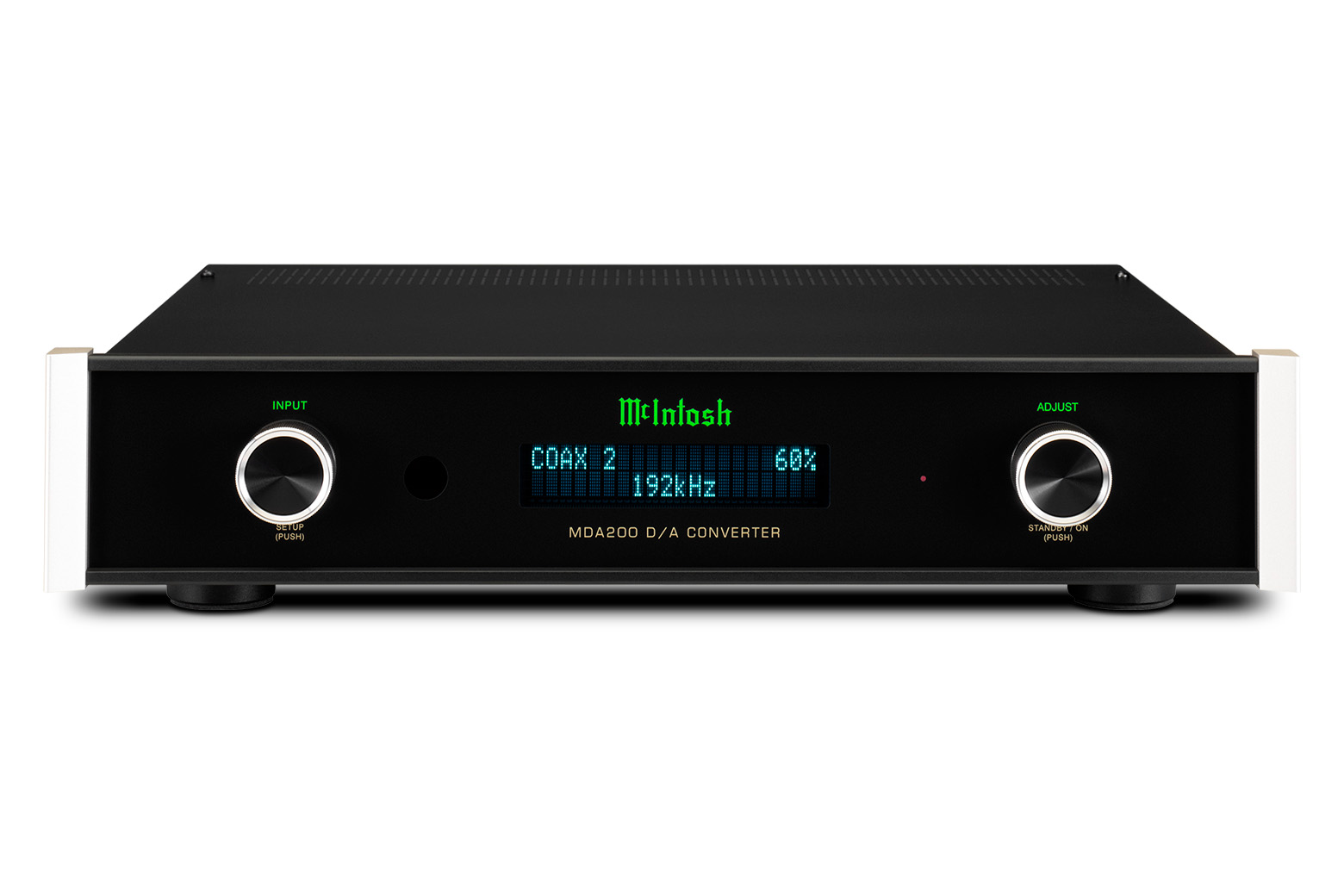

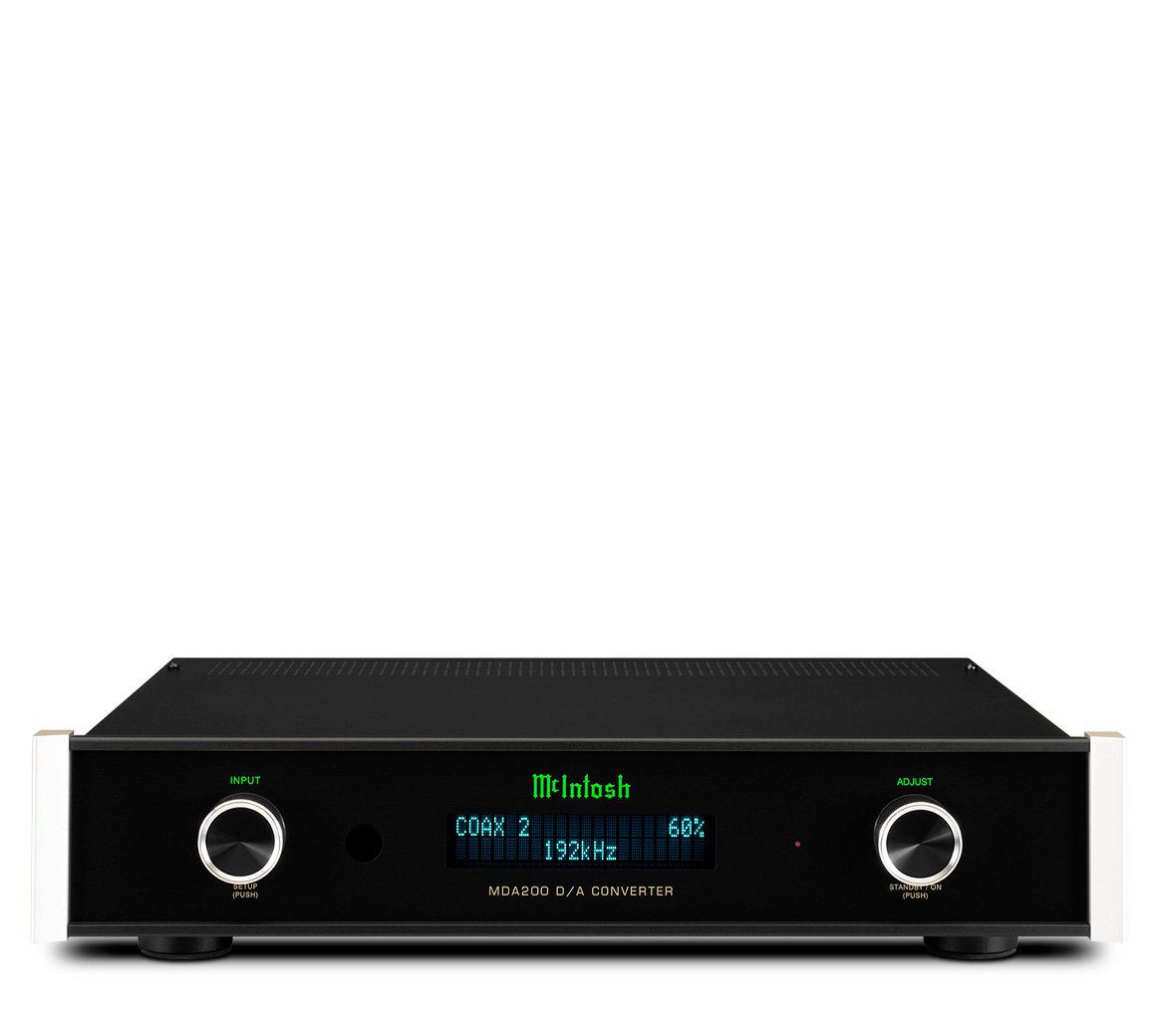

The front of the MDA200 showcases classic McIntosh design cues of a black glass faceplate with an illuminated logo, rotary controls knobs, custom machined aluminum end caps, and an easy-to-read display with adjustable brightness settings. The back panel includes convenient Power Control and data ports. Contact your local dealer to learn more.

  1. The HDMI (ARC) input will only play audio from a compatible TV. It will not pass video to or from a TV, or play audio from any non-TV source.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Dolby is a registered trademark of Dolby Laboratories.
DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

  • Specifications

    Electronic Specifications

    • Number of Channels
      2
    • Total Harmonic Distortion
      0.005%
    • Frequency Response
      +0, -0.5dB from 20Hz to 20kHz
      +0, -3dB from 5Hz to 60kHz (Source dependent)
    • Maximum Volts Out (Balanced / Unbalanced)
      4.0V RMS / 2V RMS (Fixed Output)
      0-16V RMS / 0-8V RMS (Adjustable Output)
    • Signal To Noise Ratio
      100dB
    • Dynamic Range
      100dB
    • Output Impedance
      100 Ohms (Balanced and Unbalanced)

    Connectivity

    • Digital Coaxial Input
      2
    • Digital Optical Input
      2
    • Digital MCT Input
      1
    • Digital USB Input
      1
    • HDMI (ARC) Input
      1
    • Balanced Output
      1
    • Unbalanced Output
      1

    Control

    • Data Input
      1
    • Data Output
      1
    • Power Control Input
      1
    • Power Control Output
      1
    • Rear Panel IR Sensor Input
      Yes
    • RS232 Control Input
      Yes

    General Specifications

    • Output Meters
      No
    • Vacuum Tube or Solid State
      Solid State
    • Power Consumption (On)
      35 Watts

    Weights & Dimensions

    • Unit Dimensions (W x H x D)
      17-1/2" (44.45cm) x 3-7/8" (9.8cm) x 15-11/16" (39.95cm)
    • Unit Weight
      13.5 lbs (6.1 kg)
    • Shipping Weight
      28 lbs (12.7 kg)
  • Downloads

    Product Literature User Documents Software Updates
    • MDA200 D/A Converter Brochure (1.34 MB)
    • MDA200 D/A Converter Owner's Manual (1.29 MB)
    • For units with DA2 Digital Audio Module: McIntosh USB Audio Windows Driver I v1.13 (compatible with Windows 10 and 11) (3.86 MB)
    • For units with DA2 Digital Audio Module: McIntosh USB Audio Windows Driver I v1.5 (compatible with Windows 7) (2.1 MB)
