- Perfect for home theater surround sound speakers
- 250 Watts into 8 Ohms
- 300 Watts into 4 Ohms
- 2U rack mountable
- Can also be used in distributed audio
- Bussable inputs
- Signal sensing
- Power Guard® and Sentry Monitor™
Home /
Custom Install
/ MI254 4-Channel Digital Amplifier
MI254 4-Channel Digital Amplifier
The MI254 4-Channel Digital Amplifier is a versatile multi-channel amplifier ideal for use in distributed audio, home theater or 2-channel stereo playback. It delivers 250 Watts into 8 Ohm speakers or 300 Watts into 4 Ohm speakers via its highly sophisticated closed loop digital switching amplifiers. These amplifiers are paired with extremely robust power supplies that produce performance levels rarely achieved in distributed audio.

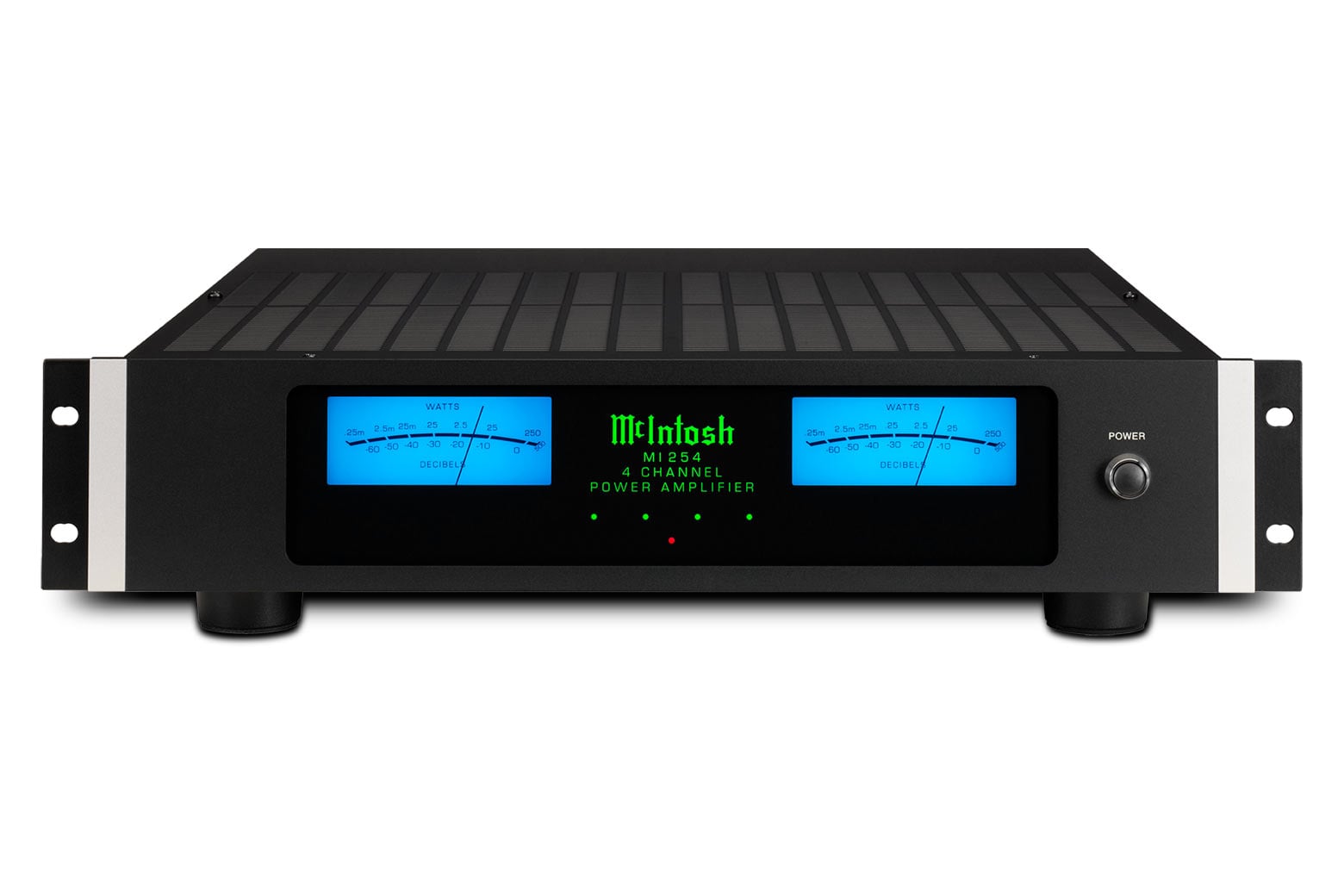

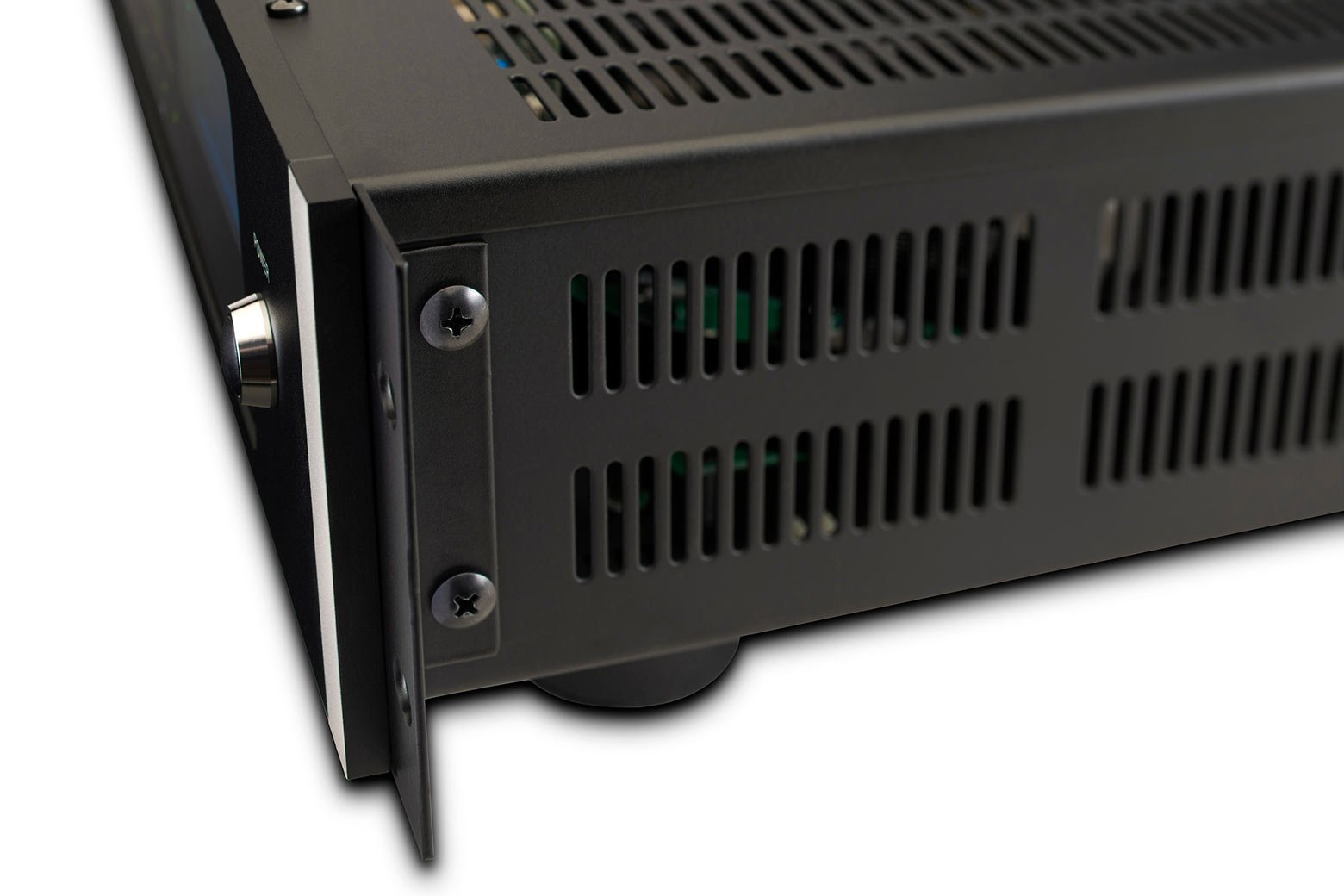

It has installer-friendly physical dimensions and is 2U rack mountable via the included mounting ears (the mounting ears are removable for non-rack installations). As a highly efficient Class D amplifier, it does not require noisy cooling fans to maintain nominal operating temperature. In addition to distributed audio use, the MI254 is well suited for home theaters to drive surround sound speakers and could be integrated into virtually any existing home theater system.

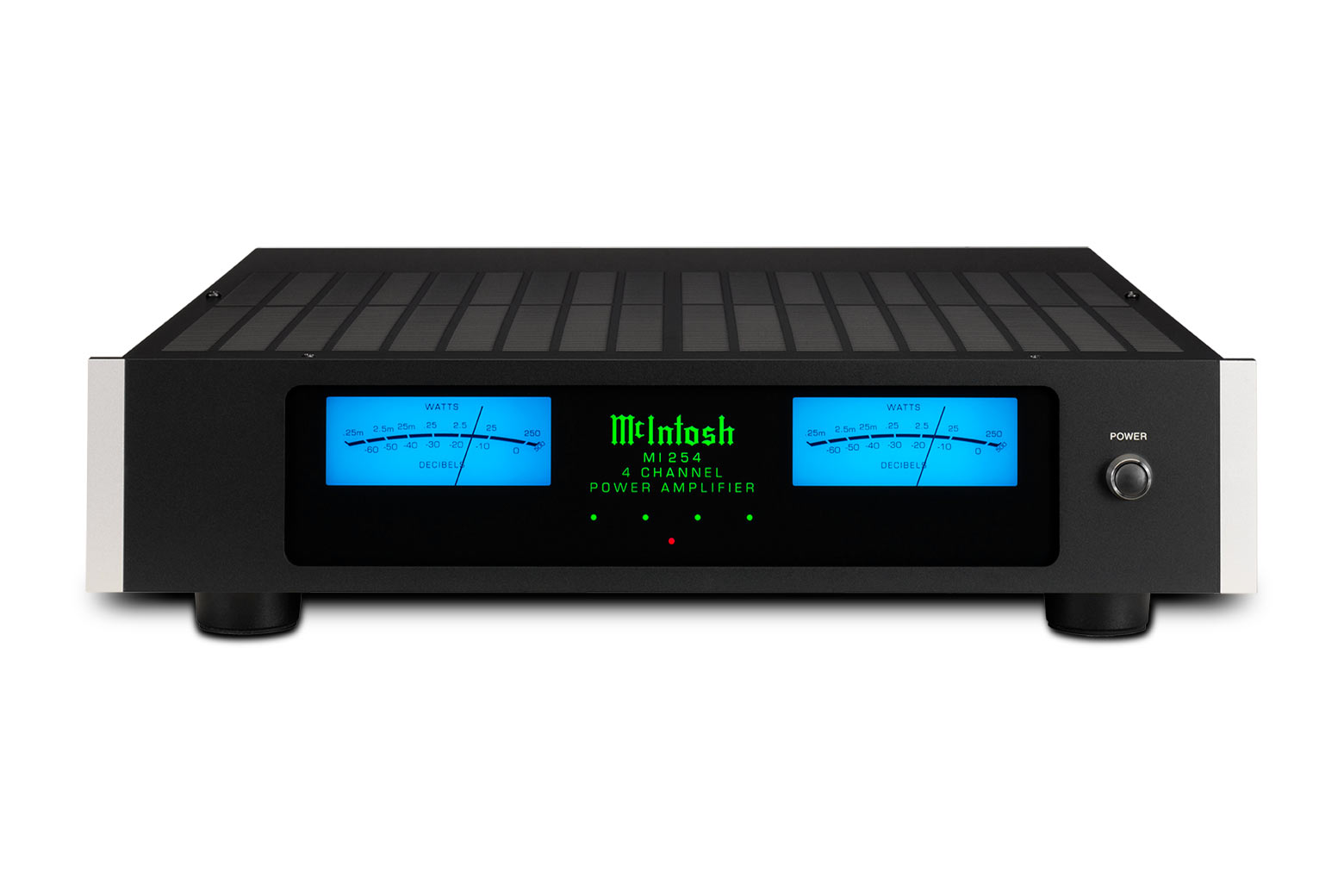

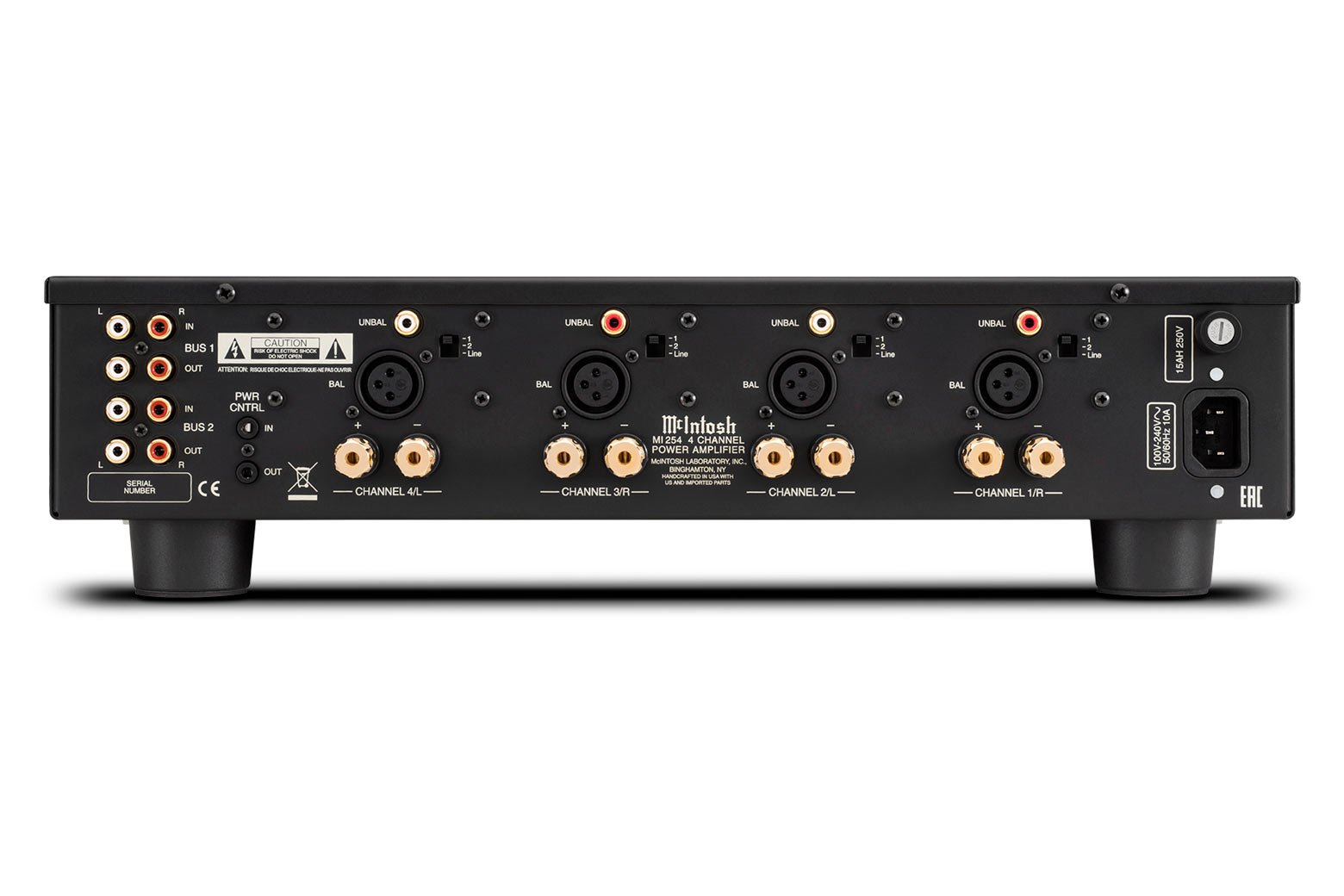

On the front panel are two blue McIntosh Watt Meters that display the summed power output of channels 1 + 2 and channels 3 + 4. Multi-color LED indicators display the status of each channel. The back panel includes both a balanced and unbalanced input for each channel along with our standard 5-way speaker binding posts.
Other features that come with the MI254 are: Power Guard® signal overload technology that prevents overdriving the speakers; our Sentry Monitor™ short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal; BUS input & outputs to easily distribute a stereo signal to multiple outputs and/or multiple amplifiers; individual channel inputs; 12 Volt triggering capabilities; and eco-friendly on/off signal sensing that turns the unit off if no input signal has been detected for a set amount of time or automatically turns the amp on when it senses a signal.

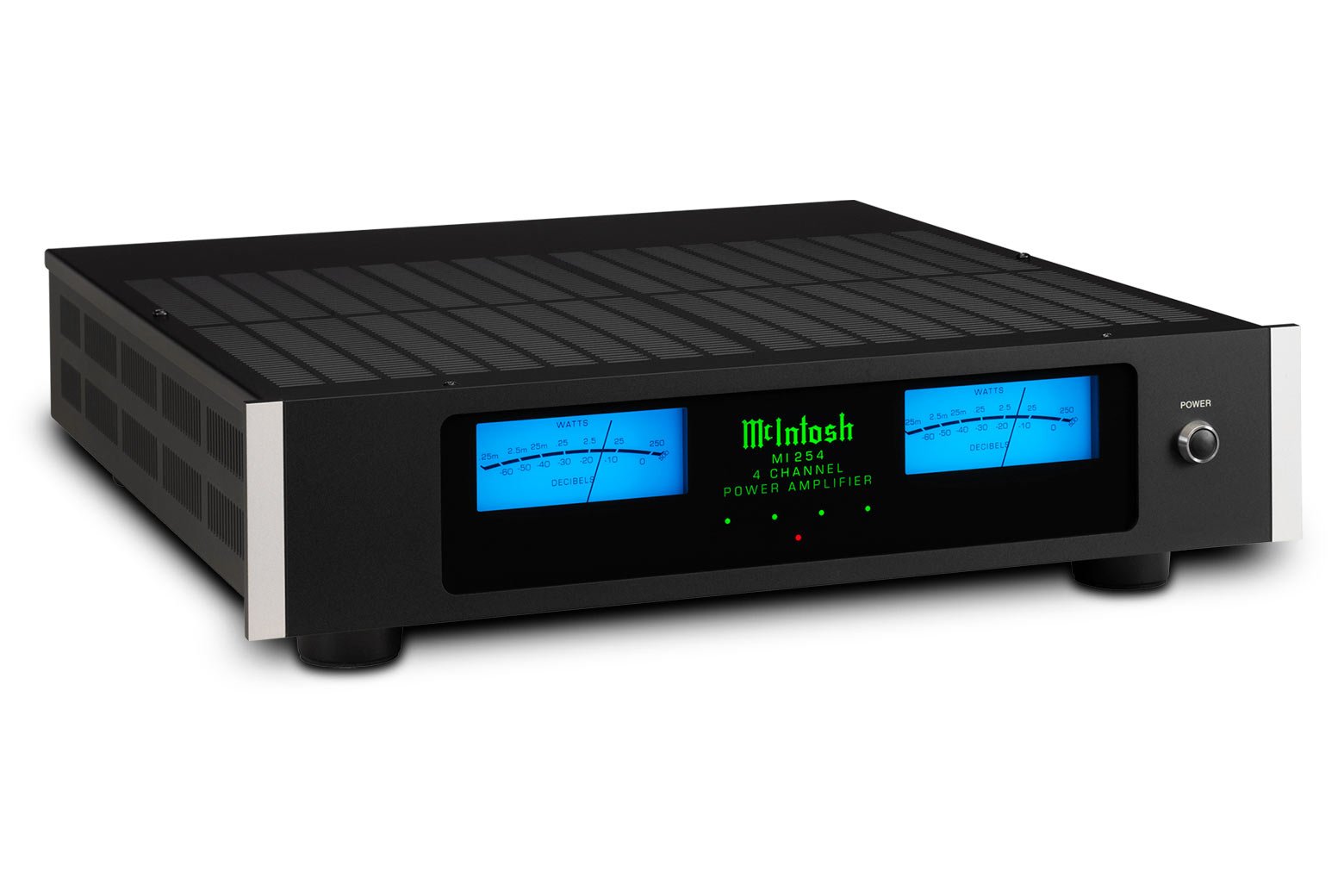

The MI254 includes many McIntosh design cues including a black glass front panel, blue Watt meters, an illuminated McIntosh logo, and a familiar form factor highlighted by silver trim. Contact your local dealer to learn more about integrating the MI254 into your custom audio installation.
-
Specifications
-
Downloads
More from Custom Install
-
![McIntosh MHT300 Home Theater Receiver]()
MHT300 Home Theater Receiver
- 7.2 channel AVR (expandable to 7.2.4)
- 150 Watts per channel into 4 Ohms/120 Watts per channel into 8 Ohms (ALL 7 channels driven)
- 4 HDMI inputs & 1 HDMI output: 8K/60Hz & 4K/120Hz; HDCP 2.3; 40Gbps; Rec. 2020; 4:4:4 Color; eARC/ARC
- Dolby Atmos; DTS:X
- Dirac Live Room Correction
- Dolby Vision; HDR10+; HLG
- 3U rack mountable
- Connects with Control4 Certification; Works with Crestron Home Certification
- Perfect for Custom Installed systems or sitting out on display
-
![McIntosh MX200 A/V Processor]()
MX200 A/V Processor
- 4 HDMI inputs & 1 HDMI output: 8K/60Hz & 4K/120Hz; HDCP 2.3; 40Gbps; Rec. 2020; 4:4:4 Color
- 11.2 channels with 2 discrete subwoofer outputs
- Dolby Atmos; DTS:X; eARC/ARC
- Dirac Live Room Correction
- Dolby Vision; HDR10+; HLG
- 2U rack mountable
- Connects with Control4 Certification; Works with Crestron Home Certification
- Perfect for custom install applications
-
![McIntosh MI502 Amplifier]()
MI502 2-Channel Digital Amplifier
- Versatile audio amplifier for custom install applications
- 500 Watts into 8 Ohms
- 800 Watts into 4 Ohms
- 2U rack mountable
- Signal sensing
- Power Guard® and Sentry Monitor™
-
![McIntosh MI347 Amplifier]()
MI347 7-Channel Digital Amplifier
- Designed for home theaters
- 3 Front Channels: 250 Watts into 8 Ohms or 300 Watts into 4 Ohms
- 4 Surround Channels: 125 Watts into 8 Ohms or 200 Watts into 4 Ohms
- 3U rack mountable
- Power Guard® and Sentry Monitor™
-
![McIntosh MI128 Amplifier]()
MI128 8-Channel Digital Amplifier
- Ideal for multi-zone distributed audio
- 120 Watts into 8 Ohms
- 150 Watts into 4 Ohms
- 2U rack mountable
- Channel summing circuits for mono signal distribution
- Volume controls for each channel
- Bussable inputs
- Signal sensing
- Power Guard® and Sentry Monitor™
-
![McIntosh MI1250 Amplifier]()
MI1250 12-Channel Digital Amplifier
- Ideal for multi-zone distributed audio
- 50 Watts into 8 Ohms
- 90 Watts into 4 Ohms
- 2U rack mountable
- Channel summing circuits for mono signal distribution
- Volume controls for each channel
- Bussable inputs
- Signal sensing
- Power Guard® and Sentry Monitor™
-
![McIntosh MIP200 Power Controller]()
MIP200 Power Controller
- A sophisticated solution for protecting your audio investment from unexpected electrical issues
- AC power line surge protection
- Electromagnetic interference (EMI) filtering
- Programmable over/under voltage protection
- Accommodates various global power standards
- 2U rack mountable
-
![McIntosh WS500 In-Wall Speaker]()
WS500 In-Wall Loudspeaker
- Fully enclosed speaker that fits in 2x4 walls
- Perfect for distributed audio or home theaters
- Up to 250 Watt Power Rating
-
![McIntosh WS300 In-Wall Speaker]()
WS300 In-Wall Loudspeaker
- Fully enclosed speaker that fits in 2x4 walls
- Perfect for distributed audio or home theaters
- Up to 250 Watt Power Rating
-
![McIntosh CS200 In-Ceiling Speaker]()
CS200 In-Ceiling Loudspeaker
- Perfect for custom installed distributed audio
- Also great as home theater surround sound speakers
- 15 to 250 Watt Power Rating
-

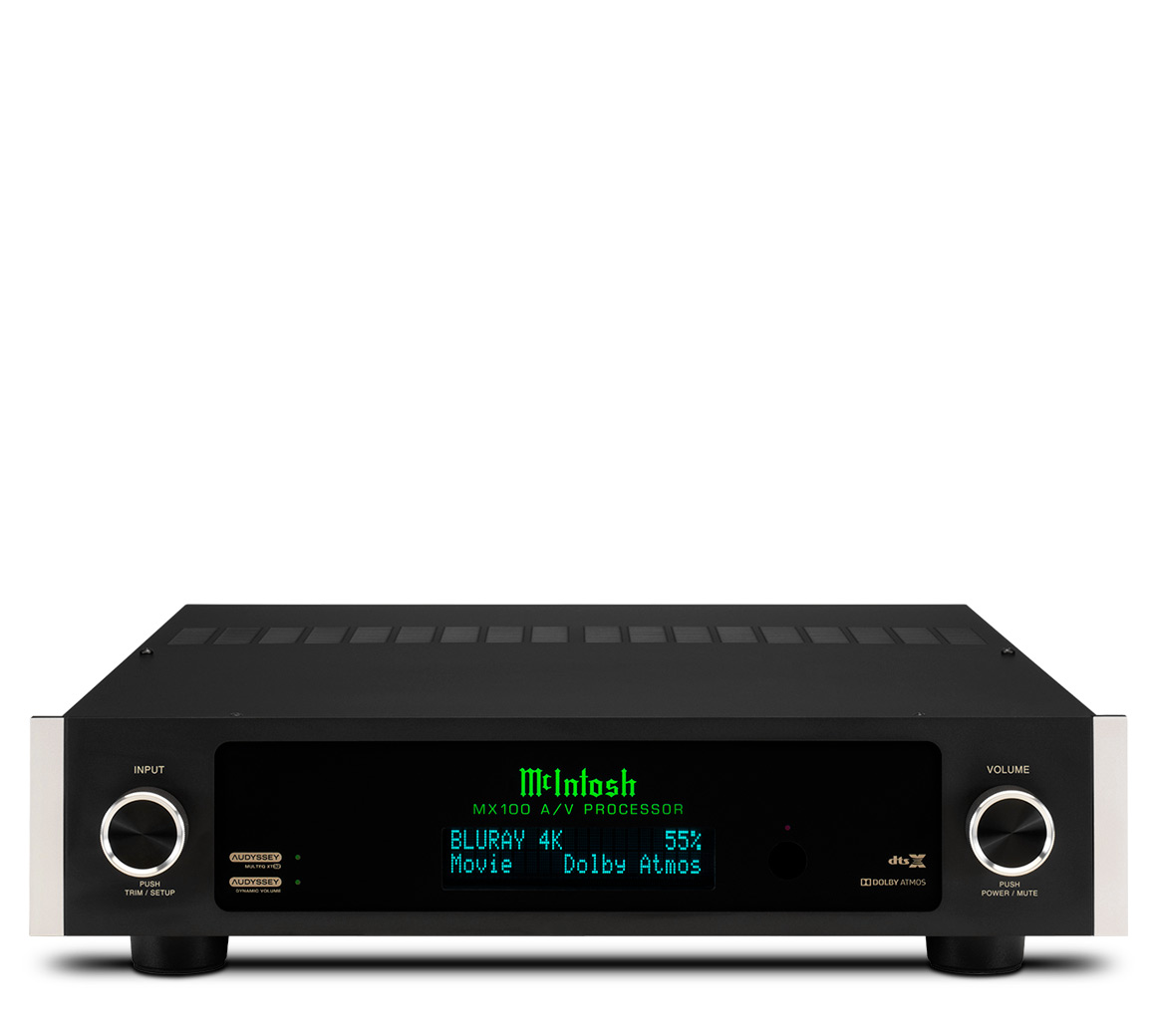

![McIntosh MX100 A/V Processor]()
