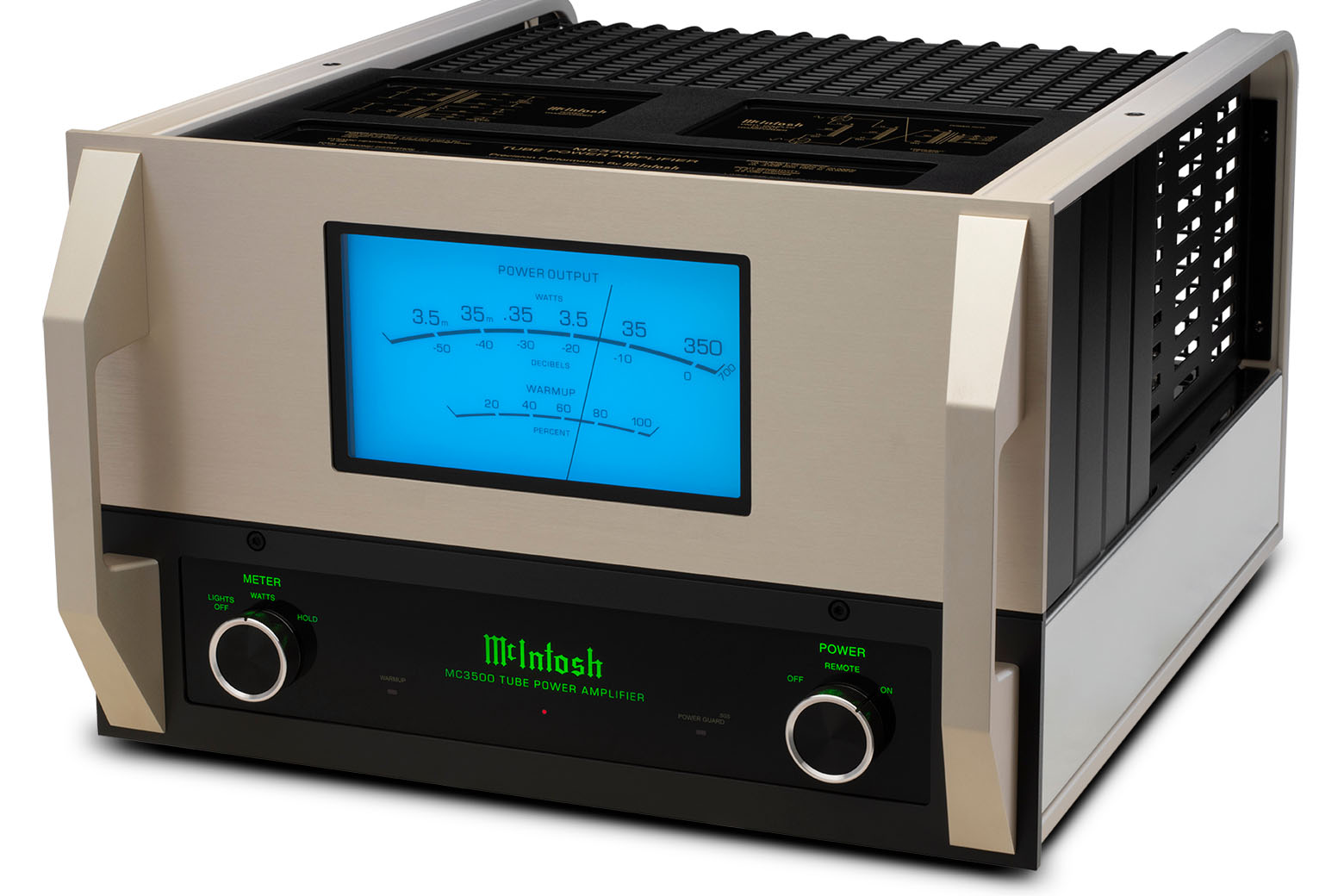

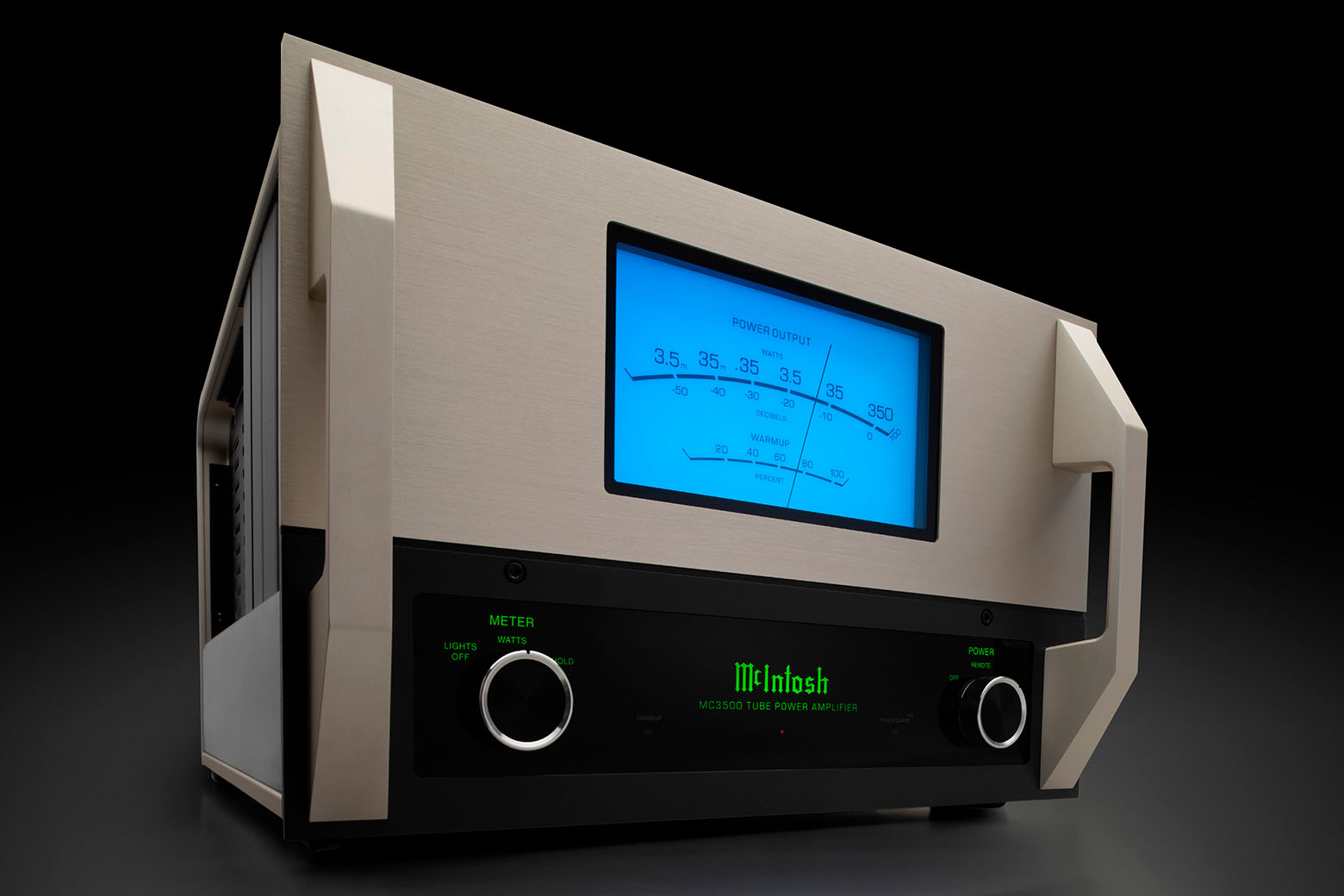

McIntosh MC3500 Vacuum Tube Amplifier Mk II

MC3500 1-Channel Vacuum Tube Amplifier Mk II

350 Watt Monoblock
Inspired by the original 1968-71 MC3500 – the Amplifier that Inspired a Generation
Powered by eight EL509S high-power output vacuum tubes
Power Guard Screen Grid Sensor™, Sentry Monitor, Solid Cinch speaker binding posts
Machined aluminum front panel with a bead blast finish and gold anodizing

Eligible for online purchase?

3 Year Limited Warranty

Add to WishlistRemove From Wishlist

Print this page

COMPARE

Ask an Expert

MC3500 1-Channel Vacuum Tube Amplifier Mk II

3 Year Limited Warranty

Print this page

COMPARE

Ask an Expert

Add to WishlistRemove From Wishlist

Named Power Amplifier of the Year 2023
Winner of Stereo Sound Grand Prix 2022

Inspired by the amplifier that inspired a generation.

There's no denying the historic significance of the 1969 Woodstock Music and Art Fair. There had never been anything like it, and many would argue there's not been anything like it since. With an unexpected crowd of over 400,000 people, there was a lot that could have gone wrong – and some things did. But one aspect that's nearly universally agreed upon was how great all the musicians sounded. That sound quality is thanks in part to the McIntosh MC3500 Vacuum Tube Amplifiers that exclusively powered the sound system used at Woodstock.¹ The MC3500 would go on to power many other influential music events.

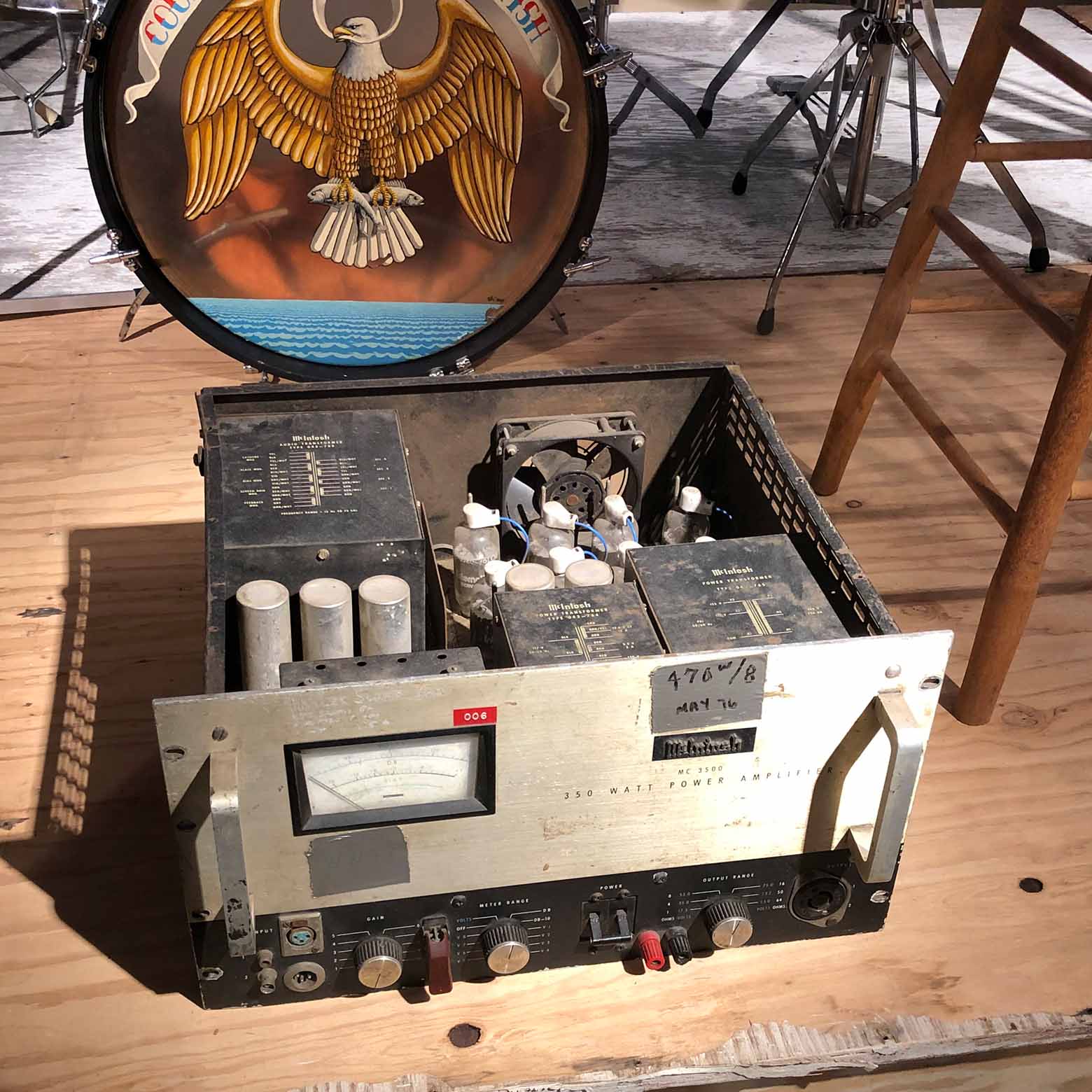

McIntosh MC3500 Vacuum Tube Amplifier — One of the original McIntosh MC3500 amplifiers that was used at Woodstock displayed at the Bethel Woods Center for the Arts.

It was at a 2019 event to celebrate the 50th Anniversary of Woodstock where McIntosh President Charlie Randall, realizing the historical importance of the MC3500, first dreamed of bringing it back into production. That proved no easy task considering it was first designed over 50 years ago. But after more than two years of development, that dream has become reality as McIntosh is proud to announce the MC3500 Vacuum Tube Amplifier Mk II.

The home audio stereo system comprised of the C12000 and MC3500 Mk II "simply sounds natural. Listen to it and you'll discover that you are listening to music — pure, simple, unadulterated music. It's not 'bright' or 'hard' or 'soft' or 'warm' or 'euphonic'… it’s just as you'd expect music to sound: natural." Named Stereo Preamplifier and Power Amplifier of the Year 2023. - Australian Hi-Fi Magazine

The MC3500 Vacuum Tube Amplifier Mk II is a conservatively rated 350 Watt monoblock that takes its inspiration from the original 1968-71 MC3500 and incorporates everything we have learned about vacuum tube amplifier design since the 1960s. It has been upgraded to modern standards and with modern components to deliver an audio performance worthy of its predecessor and the legacy of their shared model number – all while adhering to the original design as much as possible. Like the original MC3500, the MC3500 Mk II uses our Unity Coupled Circuit output transformer, which allows the full 350 Watts to be safely delivered to virtually any speaker regardless if it has 2, 4 or 8-Ohm impedance.

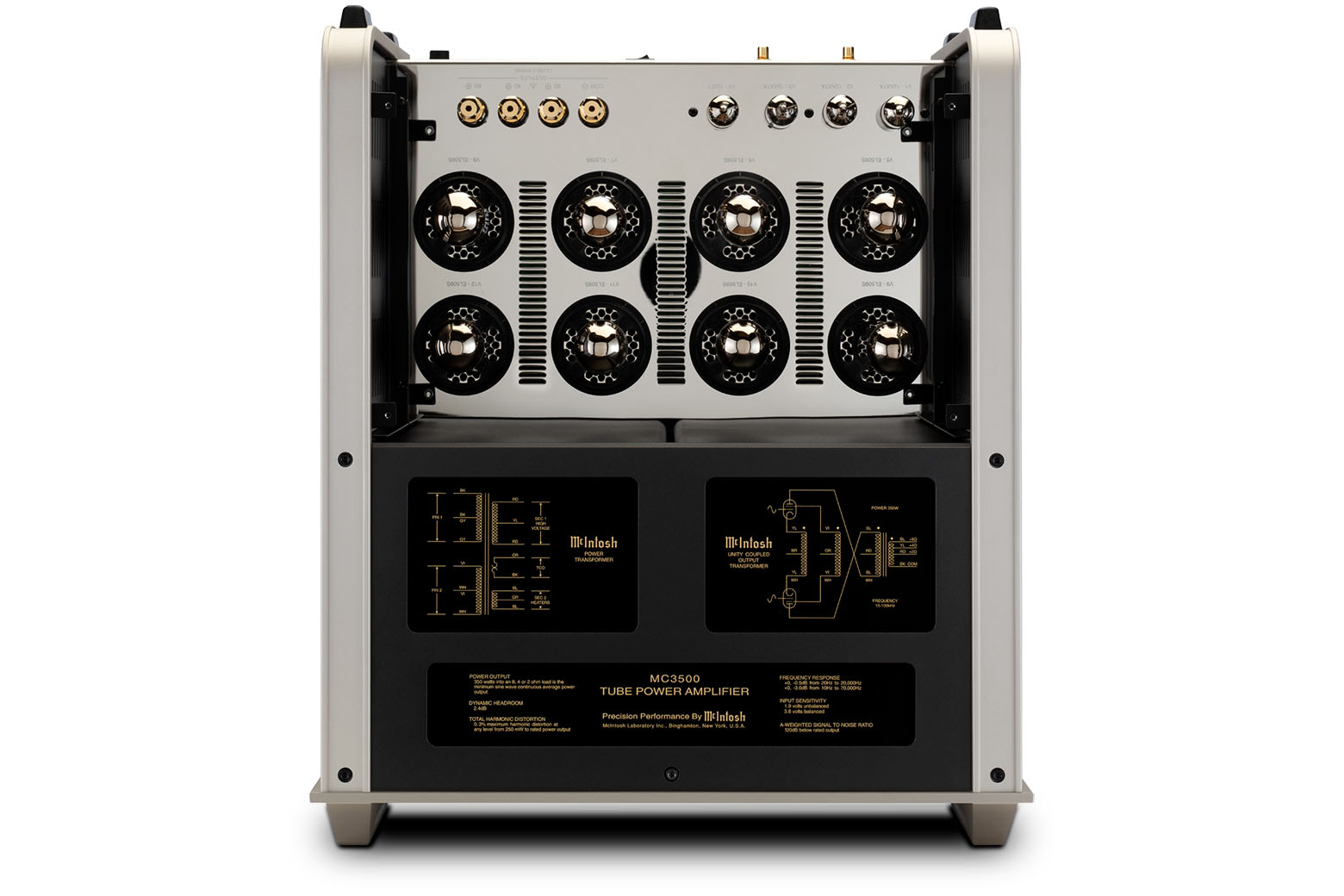

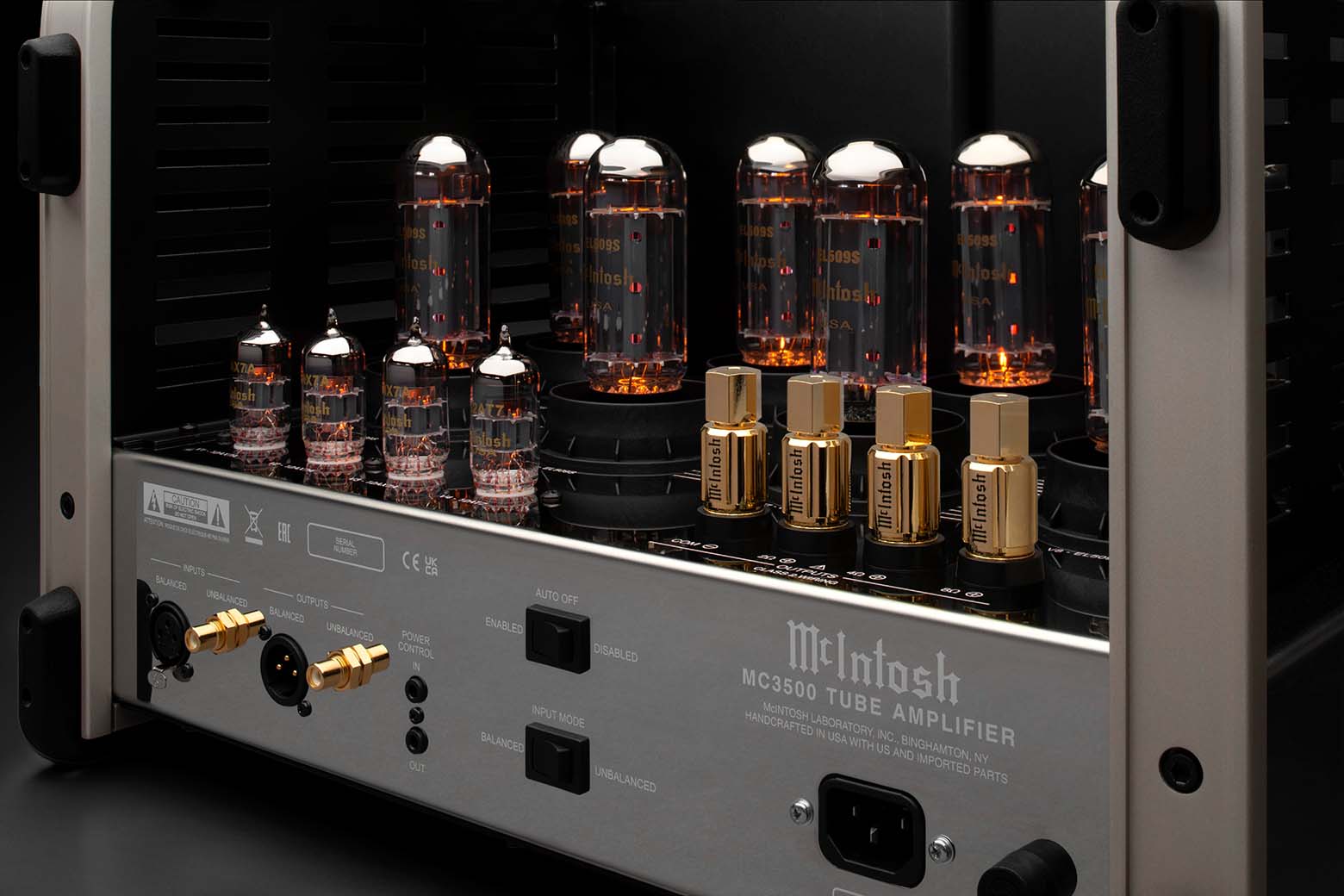

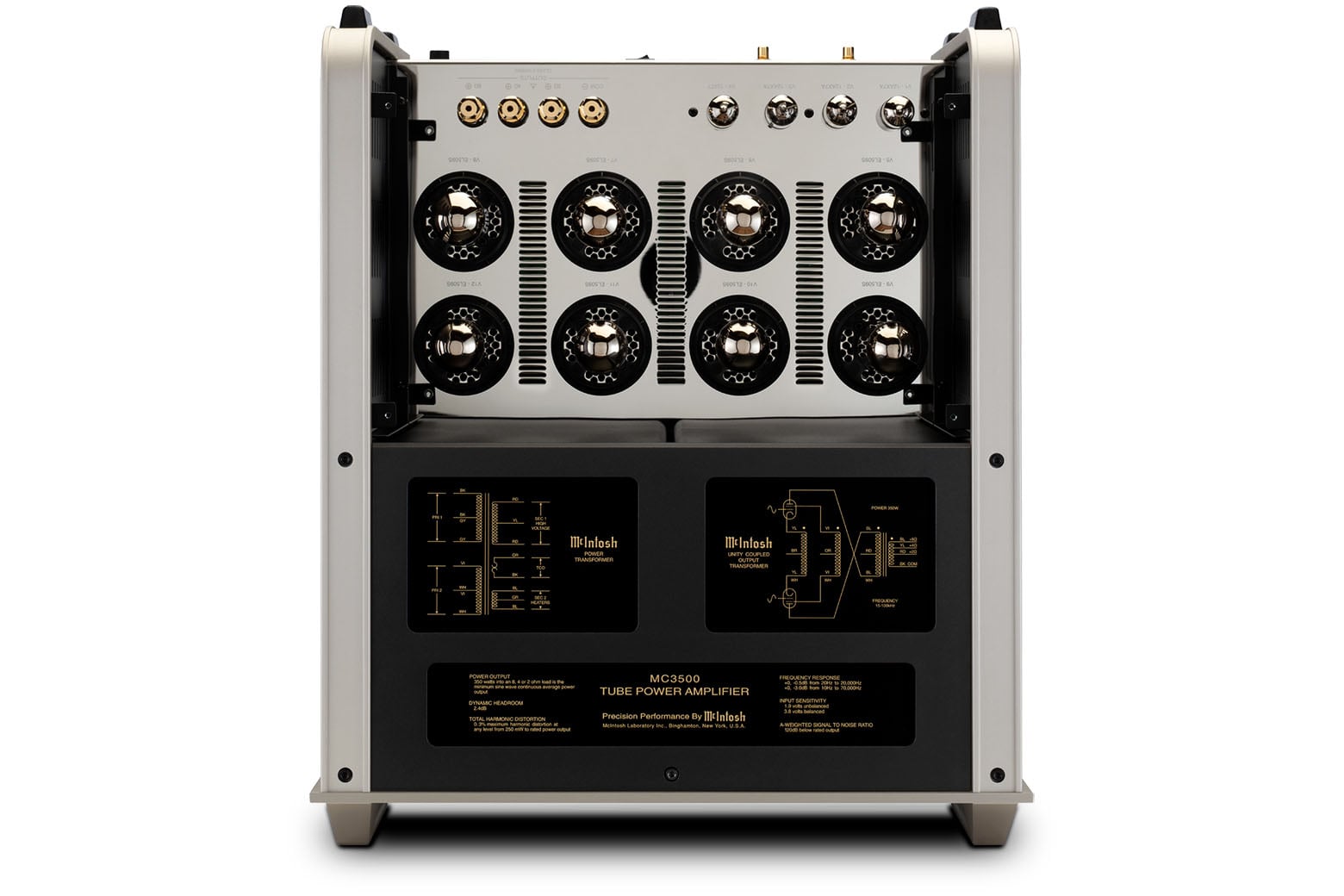

The MC3500 Mk II is powered by eight EL509S high-power output vacuum tubes. The EL509S tube was chosen specifically due to it having many similar qualities and characteristics of the 6LQ6 "sweep tubes" used on the original MC3500. Like the 6LQ6, the EL509S is very rugged thanks to its robust cathode and associated heating element which produces a high peak plate current capability in excess of 1 Amp.

Sweep tubes like the original 6LQ6 were primarily designed for 1950-60s era TVs where they would sweep the cathode ray gun in the picture tube across the phosphor screen. This was a very power-hungry process that required these high-powered sweep tubes. The use of sweep tubes by McIntosh engineers in the original MC3500 amplifier was a very cool and innovative application. By using the high-power EL509S vacuum tubes, the MC3500 Mk II amplifier remains as faithful as possible to original MC3500 output design. In addition, just like in the original MC3500, the MC3500 Mk II uses an additional feedback loop to enhance the linearity of the output tubes.

Like the original MC3500, the MC3500 Mk II has a fully balanced driver section that utilizes three 12AX7A and one 12AT7 vacuum tubes. The first 12AX7A is the differential input amp; the second is the buffer/driver for the voltage amp; the third is the voltage amp. The 12AT7 is the buffer/driver for the EL509S output tubes. All the vacuum tubes are located behind the power and output transformers, and are covered by a 12-gauge stainless steel wire cage with a black powder coated finish. The cage is shaped so that our patented, gold-plated Solid Cinch^™ speaker binding posts are easily accessible even when the cage is installed.

Our exclusive Power Guard Screen Grid Sensor^™ (SGS) technology is included in the MC3500 Mk II. Power Guard SGS is designed specifically for our vacuum tube amplifiers and similar in nature to our patented Power Guard^® technology found in our solid-state amplifiers. Power Guard SGS helps prevent premature vacuum tube failure by monitoring the screen grid current in the output vacuum tubes. If the current becomes too high, a circuit in Power Guard SGS is activated which dynamically attenuates the input signal in real time to keep the vacuum tubes operating at safe levels. The fully balanced driver section of the MC3500 MK II is an ideal match to use with Power Guard SGS. Sentry Monitor^™, which observes the output current and shuts the amplifier off if it ever exceeds safe limits, is also included.

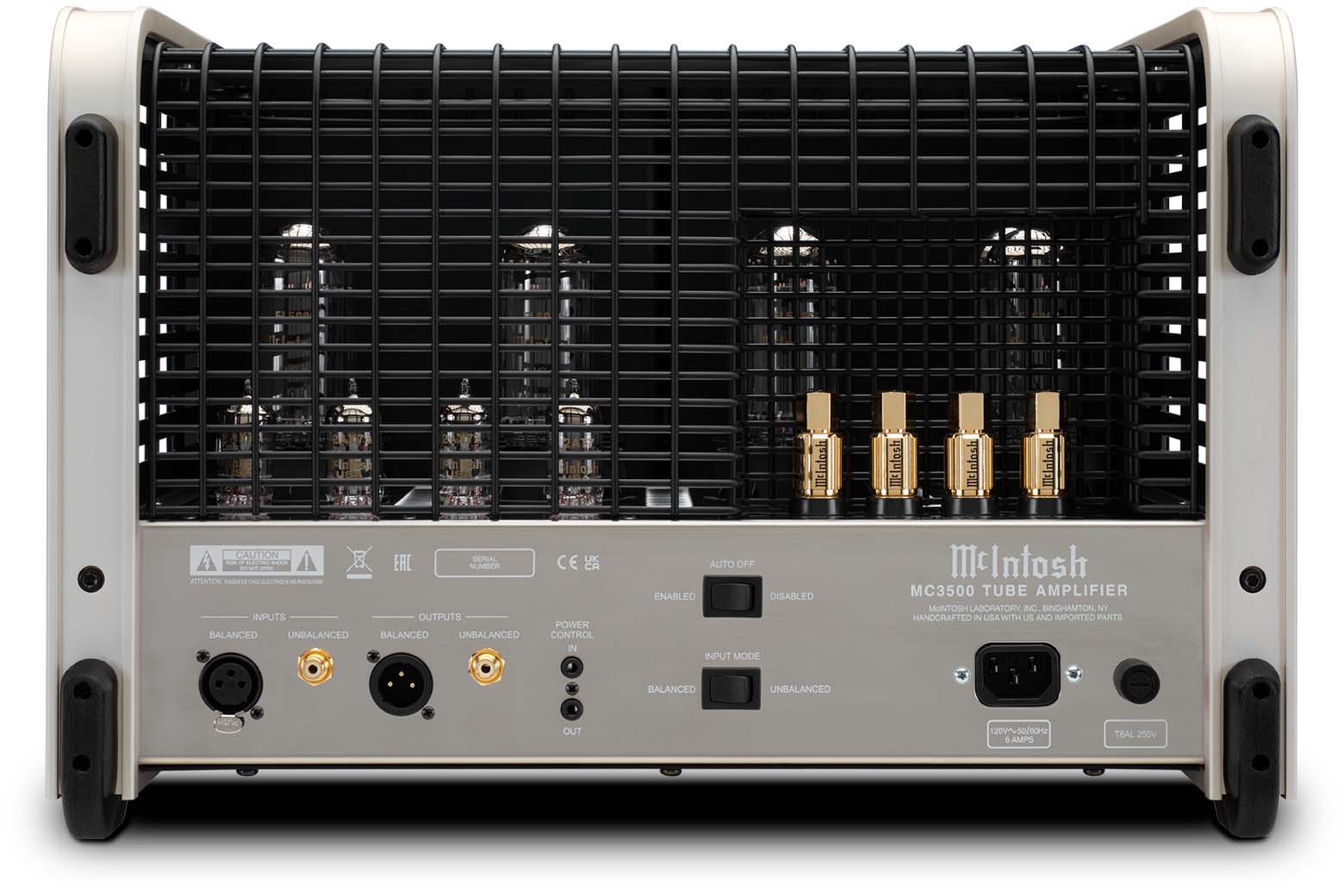

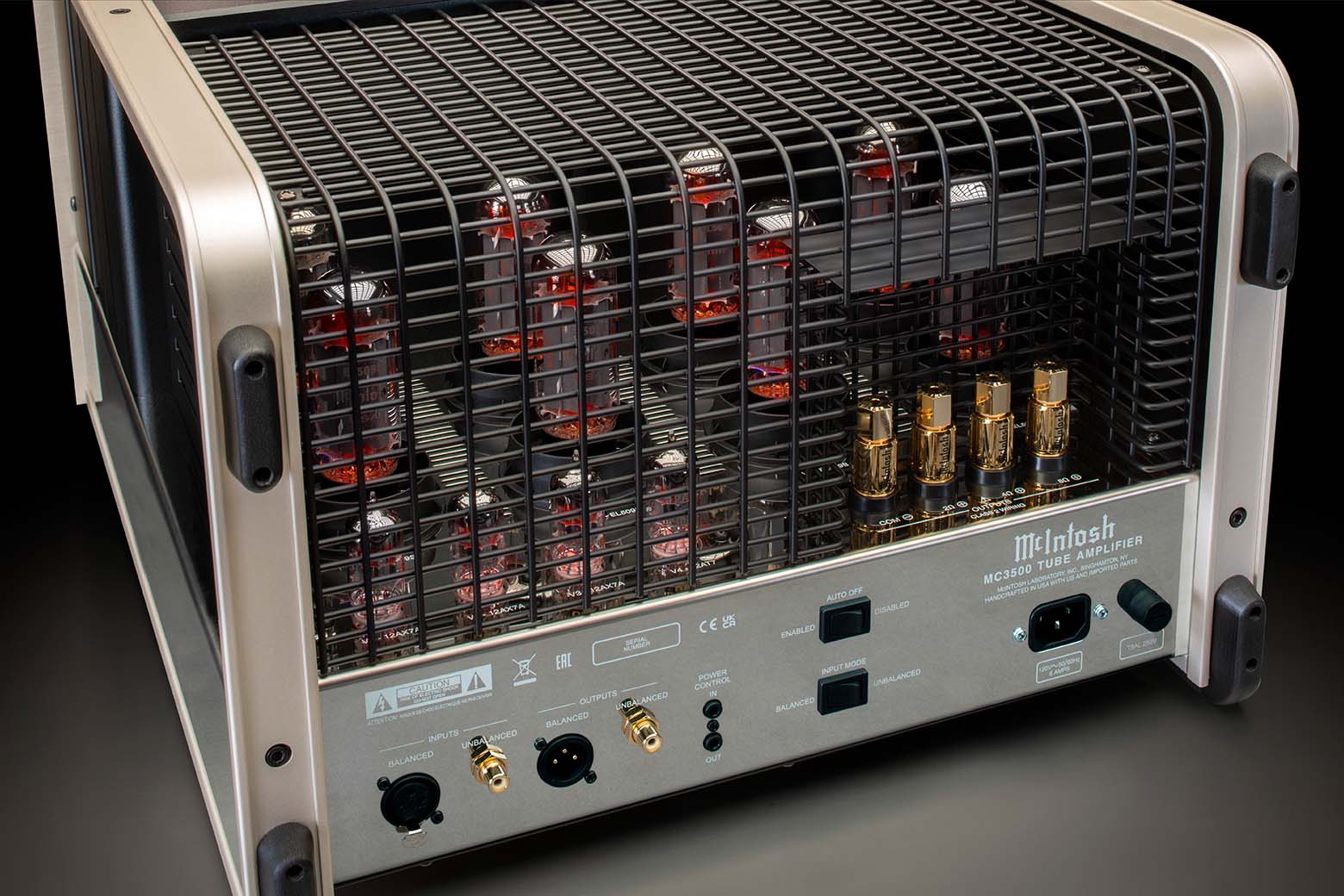

Both a balanced and unbalanced input are included for connecting to your preamplifier and the rest of your home audio system. A balanced and unbalanced output are also included for multi-amp configurations, such as bi-amping or tri-amping.

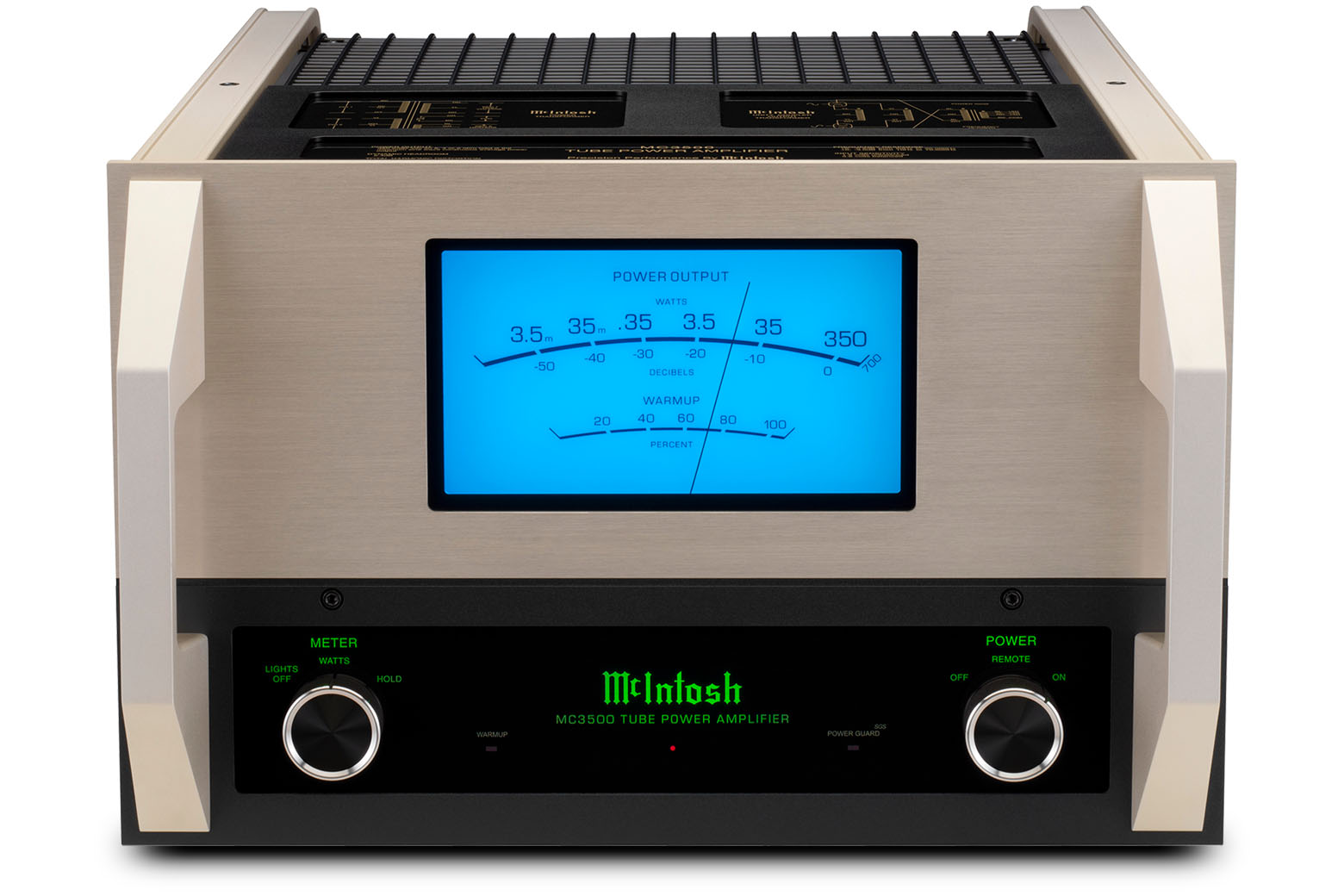

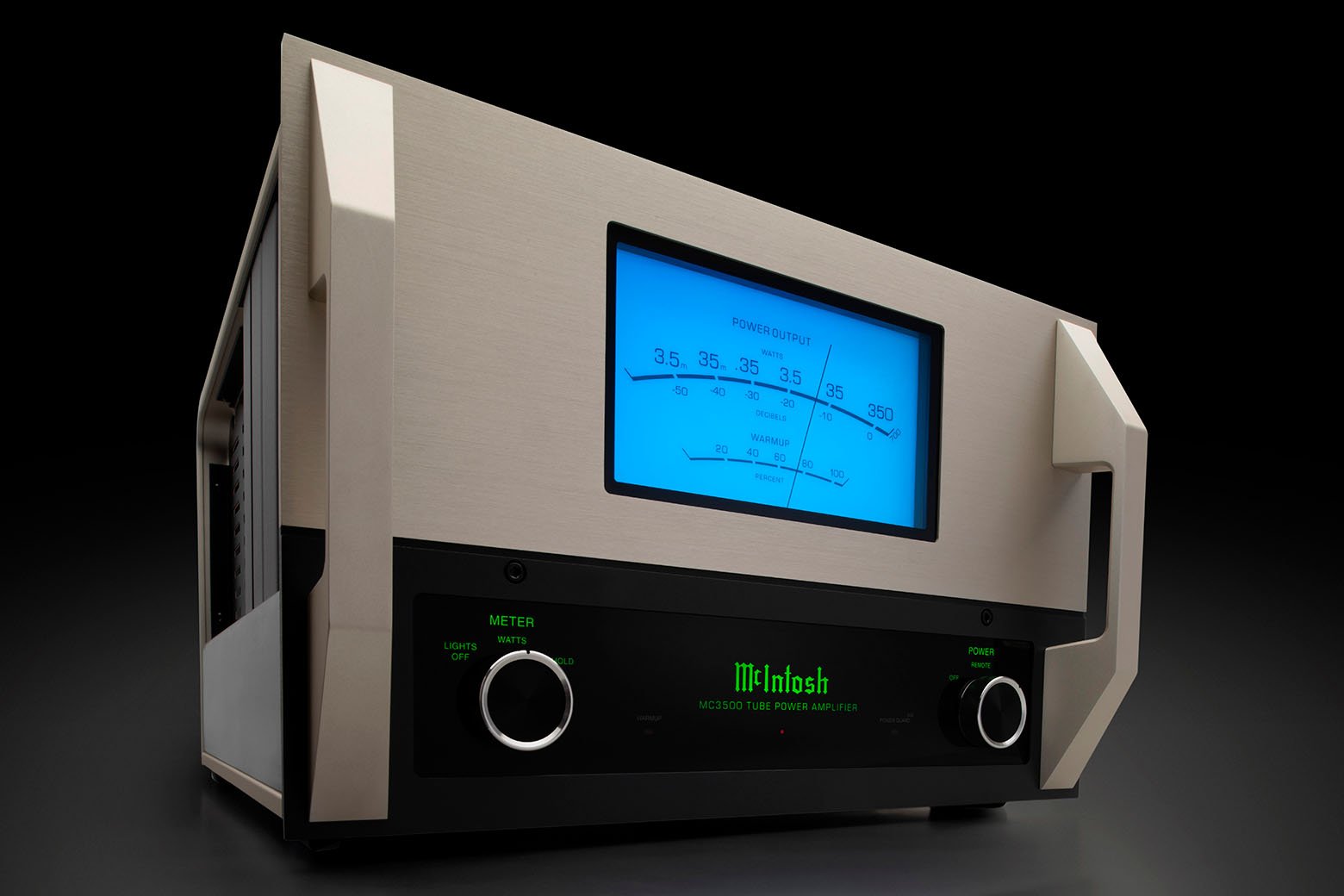

Just as the original MC3500 did, the Mk II version has an output meter, though it's larger and centered on the front panel instead of offset to the left side. This makes the meter easier to read and presents a symmetrical look in a typical two-channel stereo system layout. The meter uses a variation of our DualView^™ Power Output Meter design, with the top scale showing the power output in both Watts and decibels, while the bottom scale shows the amplifier warmup time. When powered on, the meter starts to slowly rise; once it reaches 100%, it drops back down to zero and the amplifier is ready to play music.

The MC3500 Mk II has handles just like the original, but they have more ergonomic design that are friendlier on your hands when moving this 121 lb. (54.9 kg) heavyweight. The base of the chassis is stainless steel polished to a mirror finish. The front panel is machined aluminum with a bead blast finish and gold anodizing that emulates the look and finish of the original MC3500. A clear glass insert covers the meter; a black glass insert at the bottom houses the knobs and illuminated lettering.

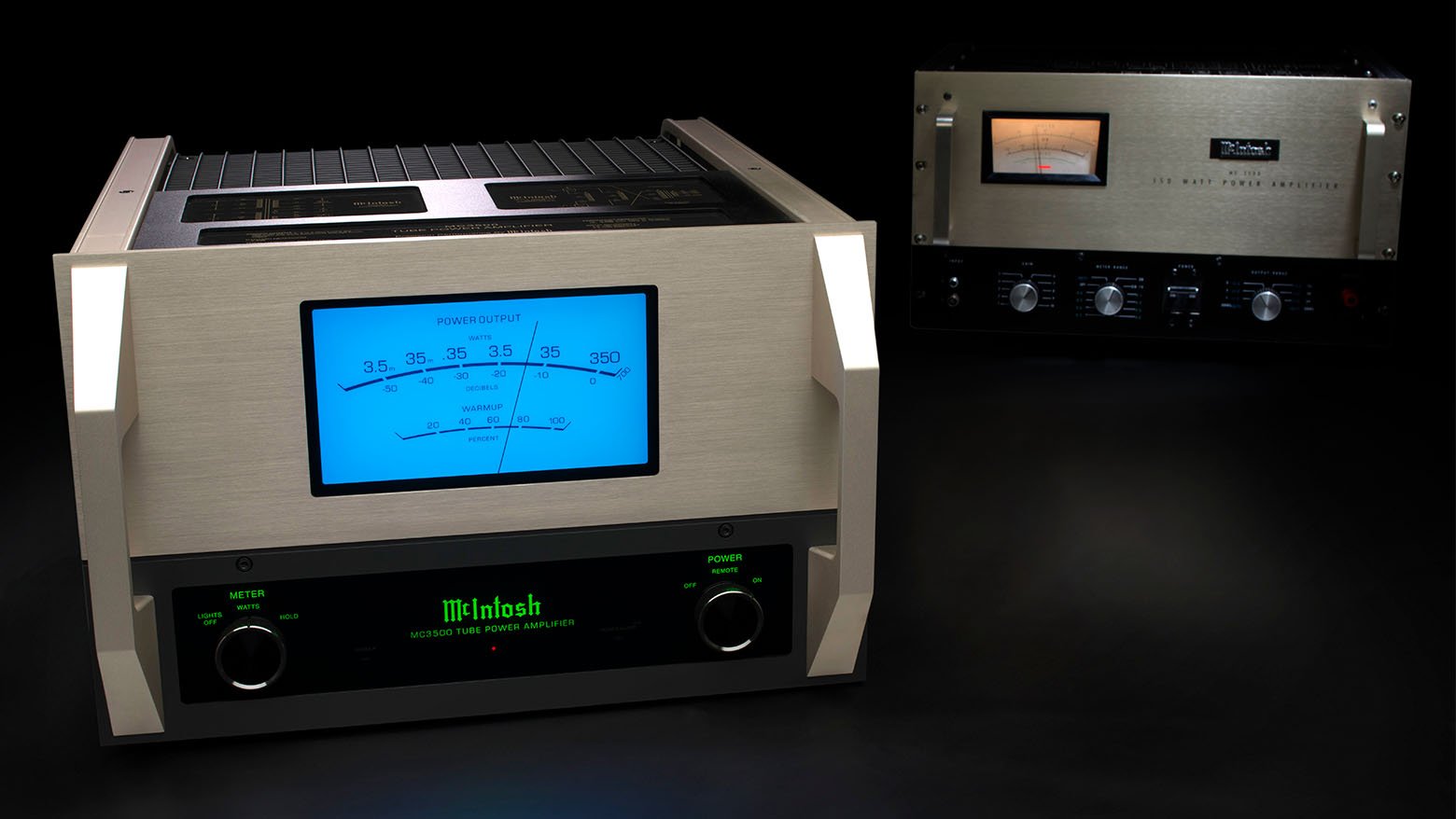

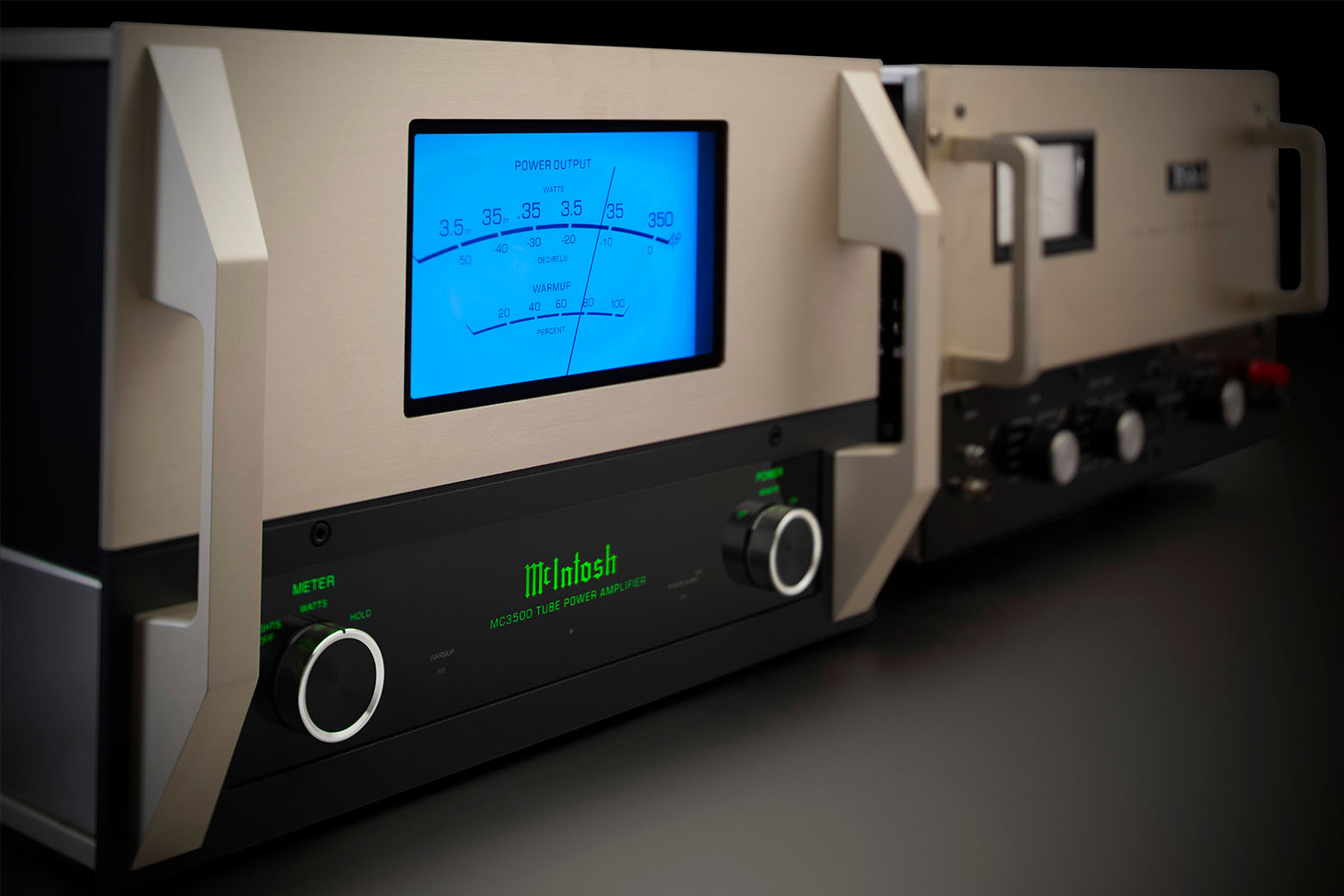

As an homage to the look of the original MC3500, the Mk II features two U-shaped siderails that wrap around the top, back, and bottom of each side. Many of original MC3500s were used on the road a lot and these siderails provided a lot of strength and durability. It is a very unique design element that we wanted to duplicate in the MC3500 Mk II. There were also four black rubber bumpers on the back of the rails that allowed the amp to be temporarily stood upright while setting up for shows; the bumpers were big enough to prevent any parts sticking off the back of the amplifier from scraping against the floor and being damaged. These bumpers have also been replicated on the MC3500 Mk II.

The MC3500 Mk II is both a thoroughly modern and thoroughly retro amplifier. It's inspired by the amplifier that helped inspire a generation. You can combine with a variety of preamplifiers, turntables, CD players, media streamers, speakers and other specialty products to form a complete home audio system. Contact your local dealer to learn more.

1) Woodstock is a registered trademark of Woodstock Ventures LC.

Specifications
Electronic Specifications
- FTC Power Output Rating

  350 W
- Power Output per Channel

  350 W into 2, 4 or 8 ohms
- Number of Channels

  1
- Total Harmonic Distortion

  0.3% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20kHz
  <0.20% at 1W, 20Hz to 20kHz
- S/N below rated output

  120dB
- Dynamic Headroom

  2.4dB
- Damping Factor

  >25 Wideband
- Rated Power Band

  20Hz to 20kHz
- Frequency Response

  +0, -0.5dB from 20Hz to 20kHz
  +0, -3.0dB from 10Hz to 70kHz
Control
- Remote Power Control

  Yes
- Multi-Channel DB25 Cable

  N/A
General Specifications
- Circuit Configuration

  Unity Coupled
- Circuit Design

  Vacuum Tube
- Mono Bridge

  No
- Mono Parallel

  No
- Output Type

  Unity Coupled Output Transformer
- Meters

  Yes
- Meter Light Switch

  Yes
- Balanced Input

  Yes
- Front Panel

  Machined aluminum with handles
- Illumination

  Direct LED
- Chassis Style

  Polished stainless steel
Connectivity
- Speaker Binding Post Type

  Patented Solid Cinch™ Speaker Binding Posts
Weights & Dimensions
- Unit Dimensions (W x H x D)

  18" (45.7cm) x 11-13/16" (30cm) x 21-5/8" (54.9cm)
- Unit Weight

  121 lbs (54.9 kg)
- Shipping Weight

  147 lbs (66.7 kg)

Downloads

Product Literature	User Documents
MC3500 Vacuum Tube Amplifier Mk II Brochure (3.21 MB)	MC3500 Vacuum Tube Amplifier Mk II Owner's Manual (5.71 MB)

More from Power Amplifiers

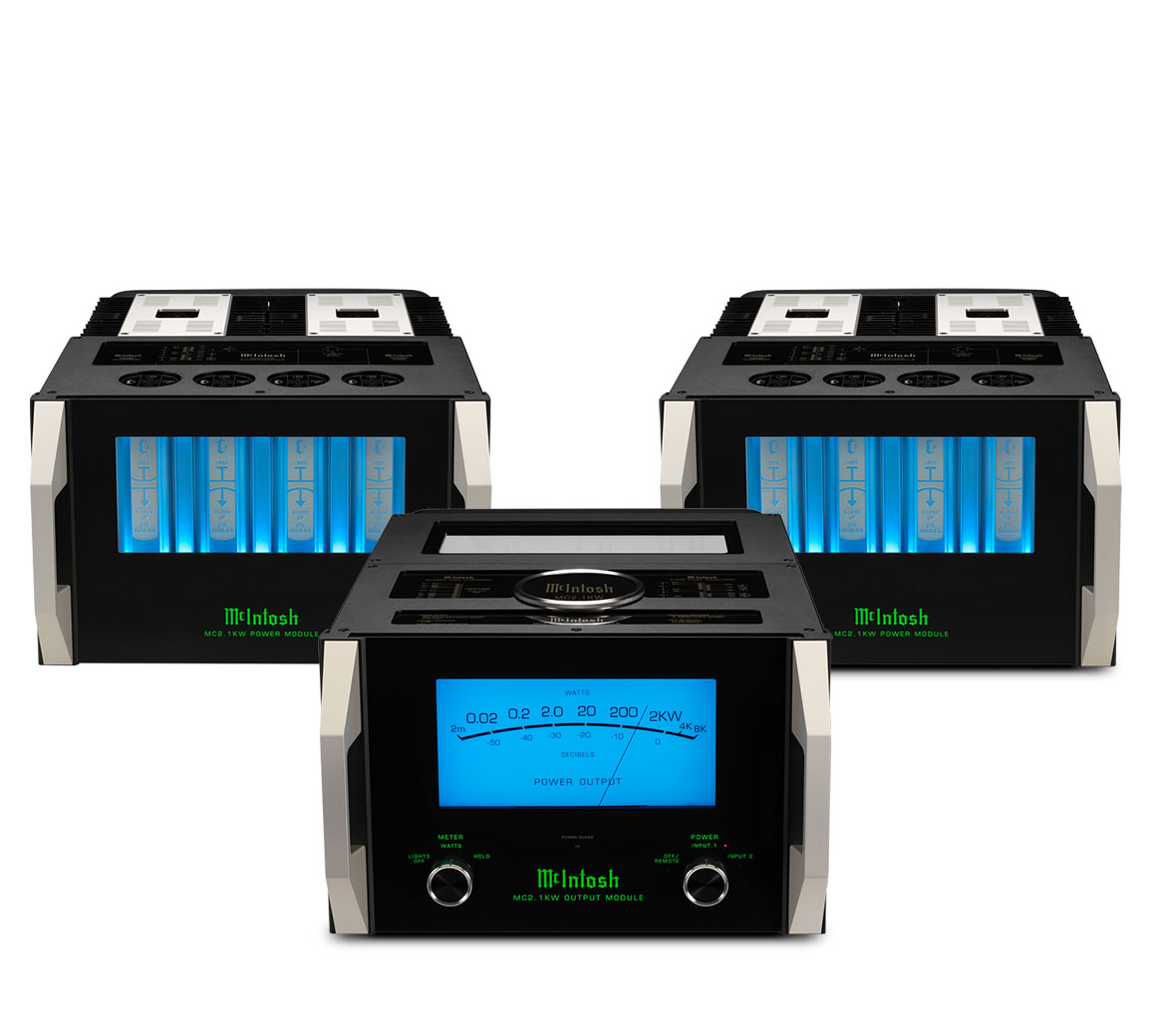

MC2.1KW 1-Channel Solid State Amplifier
- Comes standard as 75th Anniversary Edition until May 31, 2025 (limited to 75 pairs per country)
- 2,000 Watt Quad Balanced Monoblock
- Tri-chassis design: 2 Power Modules, 1 Output Module
- Dual sets of balanced and unbalanced inputs
- Autoformer^™, Power Guard^®, Sentry Monitor^™, Monogrammed Heatsinks^™, Solid Cinch^™ speaker binding posts
- Multiple speaker terminals for bi- and tri-wiring
MC901 1-Channel Dual Mono Amplifier
- Includes our Hybrid Drive^™ technology that uses the best of vacuum tubes and solid state to produce the best sound performance
- The ultimate solution for bi-amping loudspeakers: 300 Watt vacuum tube amplifier and 600 Watt solid state amplifier on one chassis
- Vacuum tube section powers mid and upper drivers
- Solid state section drives power hungry woofers
- DualView™ Power Output Meter
MC1.25KW 1-Channel Solid State Amplifier
- 1,200 Watt Quad Balanced Monoblock
- Redesigned from top to bottom
- Autoformer^™, Power Guard^®, Sentry Monitor^™, Monogrammed Heatsinks^™, Solid Cinch^™ speaker binding posts
MC611 1-Channel Solid State Amplifier
- 600 Watt Quad Balanced Monoblock
- 55% increase in Dynamic Headroom compared to previous model
- Autoformer^™, Power Guard^®, Sentry Monitor^™, Monogrammed Heatsinks^™, Solid Cinch^™ speaker binding posts
MC451 1-Channel Dual Mono Amplifier
- Includes our Hybrid Drive^™ technology that uses the best of vacuum tubes and solid state to produce the best sound performance
- Designed with bi-amping loudspeakers in mind
- 150 Watt vacuum tube amplifier and 300 Watt solid state amplifier on one chassis
- Vacuum tube section powers mid and upper drivers
- Solid state section drives power hungry woofers
- DualView™ Power Output Meter
MC830 1-Channel Solid State Amplifier
- 300 Watts into 8 Ohms
- 480 Watts into 4 Ohms
- Power Guard, Sentry Monitor, Monogrammed Heatsinks, Solid Cinch speaker binding posts
MC2301 1-Channel Vacuum Tube Amplifier
- 300 Watt Quad Balanced Monoblock
- Vacuum tube powered
MC462 2-Channel Solid State Amplifier
- 450 Watts x 2 Channels
- 66% increase in Dynamic Headroom compared to previous model
- Quad Balanced Design with McIntosh Autoformers™
MC312 2-Channel Solid State Amplifier
- 300 Watts x 2 Channels
- 27% increase in Dynamic Headroom compared to previous model
- McIntosh Autoformers™
MC152 2-Channel Solid State Amplifier
- 150 Watts x 2 Channels
- Space saving 6" tall chassis

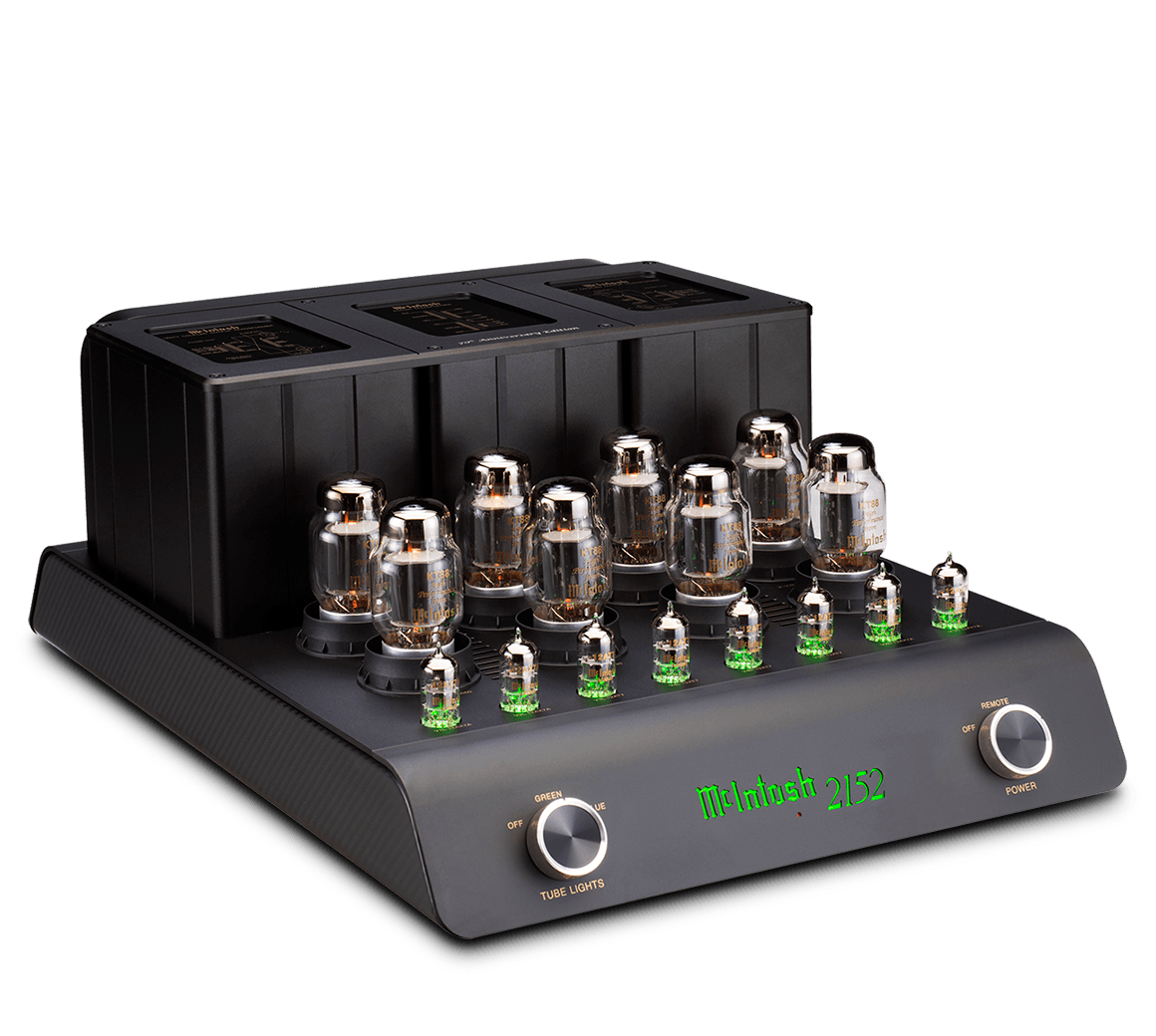

MC2152 70th Anniversary 2-Channel Vacuum Tube Amplifier
- 150 Watts x 2 Channels
- Unity Coupled Circuit Output Transformers
- (8) KT88, (4) 12AX7A and (4) 12AT7 vacuum tubes
- Striking new design with carbon fiber side panels
MC1502 2-Channel Vacuum Tube Amplifier
- 150 Watts x 2 Channels
- Unity Coupled Circuit Output Transformers
- (8) KT88, (4) 12AX7A and (4) 12AT7 vacuum tubes
MC275 2-Channel Vacuum Tube Amplifier
- 75 Watts x 2 channels or 150 Watts x 1 channel
- Unity Coupled Circuit Output Transformers
- (4) KT88, (4) 12AT7 and (3) 12AX7A vacuum tubes
- One of the most iconic amplifiers ever made by any brand
MC303 3-Channel Solid State Amplifier
- 300 Watts x 3 Channels
- Designed for home theaters
- Tri-Amp capability
MC255 5-Channel Solid State Amplifier
- 250 Watts x 3 Channels; 200 Watts x 5 Channels
- TripleView™ Power Output Meter
- More than 100% increase in Dynamic Headroom
- Dynamic Power Manager^®; Power Guard^®
- Designed for home theaters
MC257 7-Channel Solid State Amplifier
- 250 Watts x 3 Channels; 200 Watts x 7 Channels
- TripleView™ Power Output Meter
- 94% increase in Dynamic Headroom
- Dynamic Power Manager^®; Power Guard^®
- Designed for home theaters
MC8207 7-Channel Solid State Amplifier
- 200 Watts x 7 Channels
- Designed for home theaters
- LED power output indicators

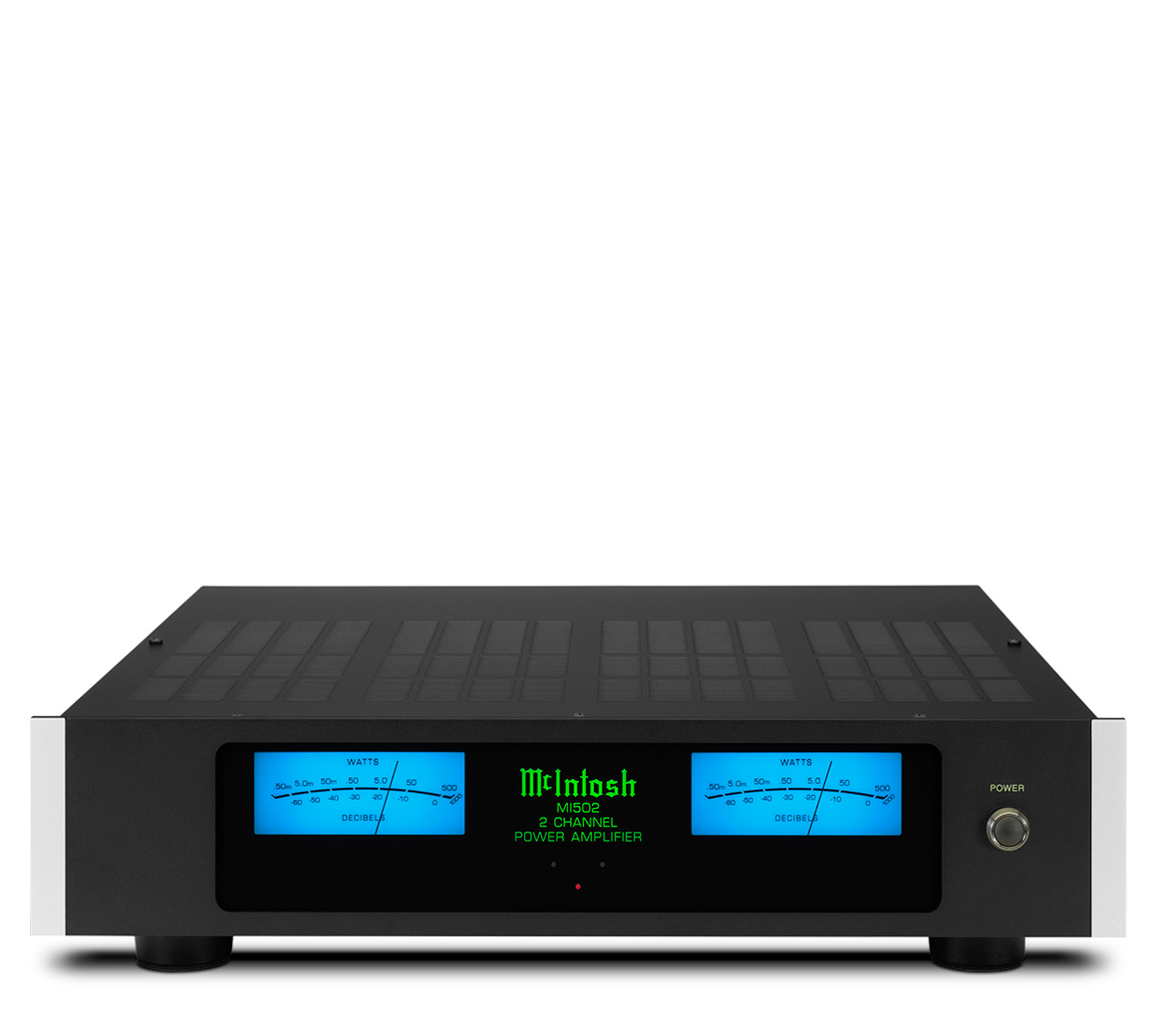

MI502 2-Channel Digital Amplifier
- Versatile audio amplifier for custom install applications
- 500 Watts into 8 Ohms
- 800 Watts into 4 Ohms
- 2U rack mountable
- Signal sensing
- Power Guard^® and Sentry Monitor^™

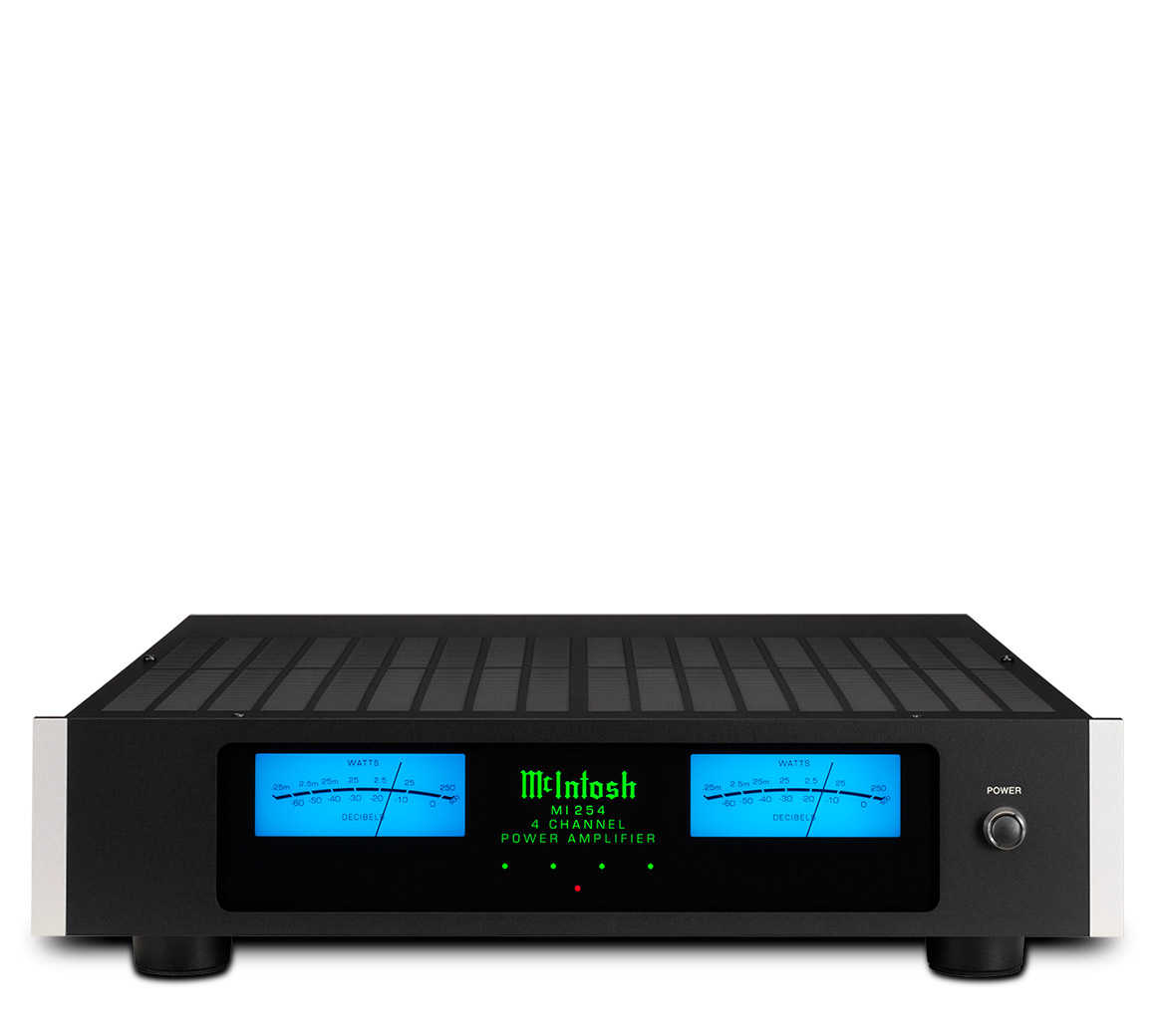

MI254 4-Channel Digital Amplifier
- Perfect for home theater surround sound speakers
- 250 Watts into 8 Ohms
- 300 Watts into 4 Ohms
- 2U rack mountable
- Can also be used in distributed audio
- Bussable inputs
- Signal sensing
- Power Guard^® and Sentry Monitor^™

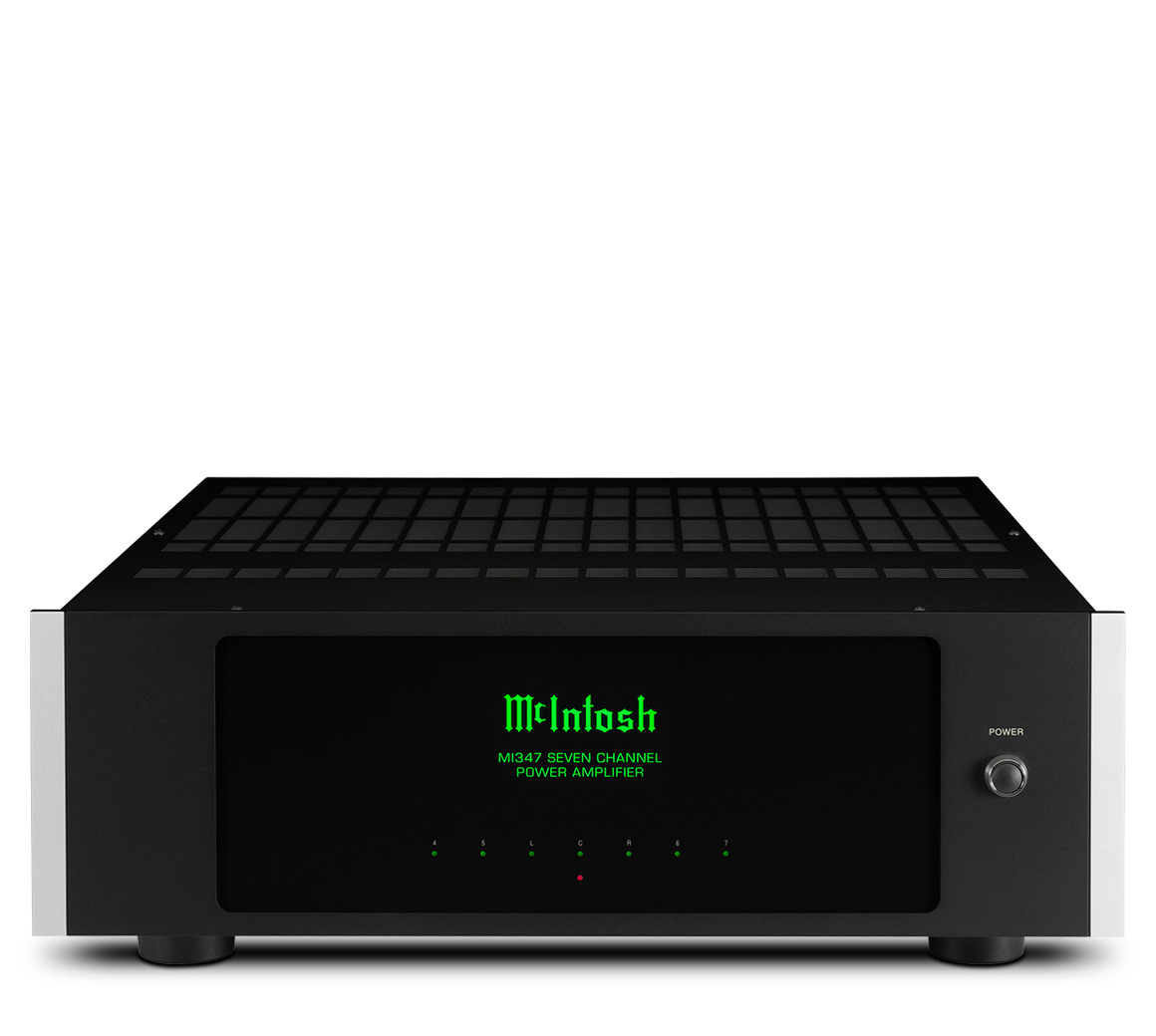

MI347 7-Channel Digital Amplifier
- Designed for home theaters
- 3 Front Channels: 250 Watts into 8 Ohms or 300 Watts into 4 Ohms
- 4 Surround Channels: 125 Watts into 8 Ohms or 200 Watts into 4 Ohms
- 3U rack mountable
- Power Guard^® and Sentry Monitor^™
MI128 8-Channel Digital Amplifier
- Ideal for multi-zone distributed audio
- 120 Watts into 8 Ohms
- 150 Watts into 4 Ohms
- 2U rack mountable
- Channel summing circuits for mono signal distribution
- Volume controls for each channel
- Bussable inputs
- Signal sensing
- Power Guard^® and Sentry Monitor^™
MI1250 12-Channel Digital Amplifier
- Ideal for multi-zone distributed audio
- 50 Watts into 8 Ohms
- 90 Watts into 4 Ohms
- 2U rack mountable
- Channel summing circuits for mono signal distribution
- Volume controls for each channel
- Bussable inputs
- Signal sensing
- Power Guard^® and Sentry Monitor^™
MHA200 2-Channel Vacuum Tube Headphone Amplifier
- Compact footprint: just 6-1/8" (15.6cm) x 9-1/8" (23.2cm)
- 4 selectable headphone impedance ranges
- Balanced and unbalanced analog inputs
- Balanced stereo or dedicated Left & Right outputs
MHA200 2-Channel Vacuum Tube Headphone Amplifier 75th Anniversary Edition
ONLY AVAILABLE IN THE USA AND ONLY AT SHOP.MCINTOSHLABS.COM
- Special Edition MHA200 with 75th Anniversary logo
- Signed by McIntosh President Charlie Randall
- All the features and performance of the standard unit
- Compact footprint: just 6-1/8" (15.6cm) x 9-1/8" (23.2cm)
- 4 selectable headphone impedance ranges
- Balanced stereo or dedicated Left & Right outputs
MHA50 Portable Decoding Amplifier
- Smartphone sized headphone amplifier with DAC
- Digital inputs for iOS, Android and PC/Mac
- Bluetooth input
- Supports PCM to 192kHz, DSD128, aptX

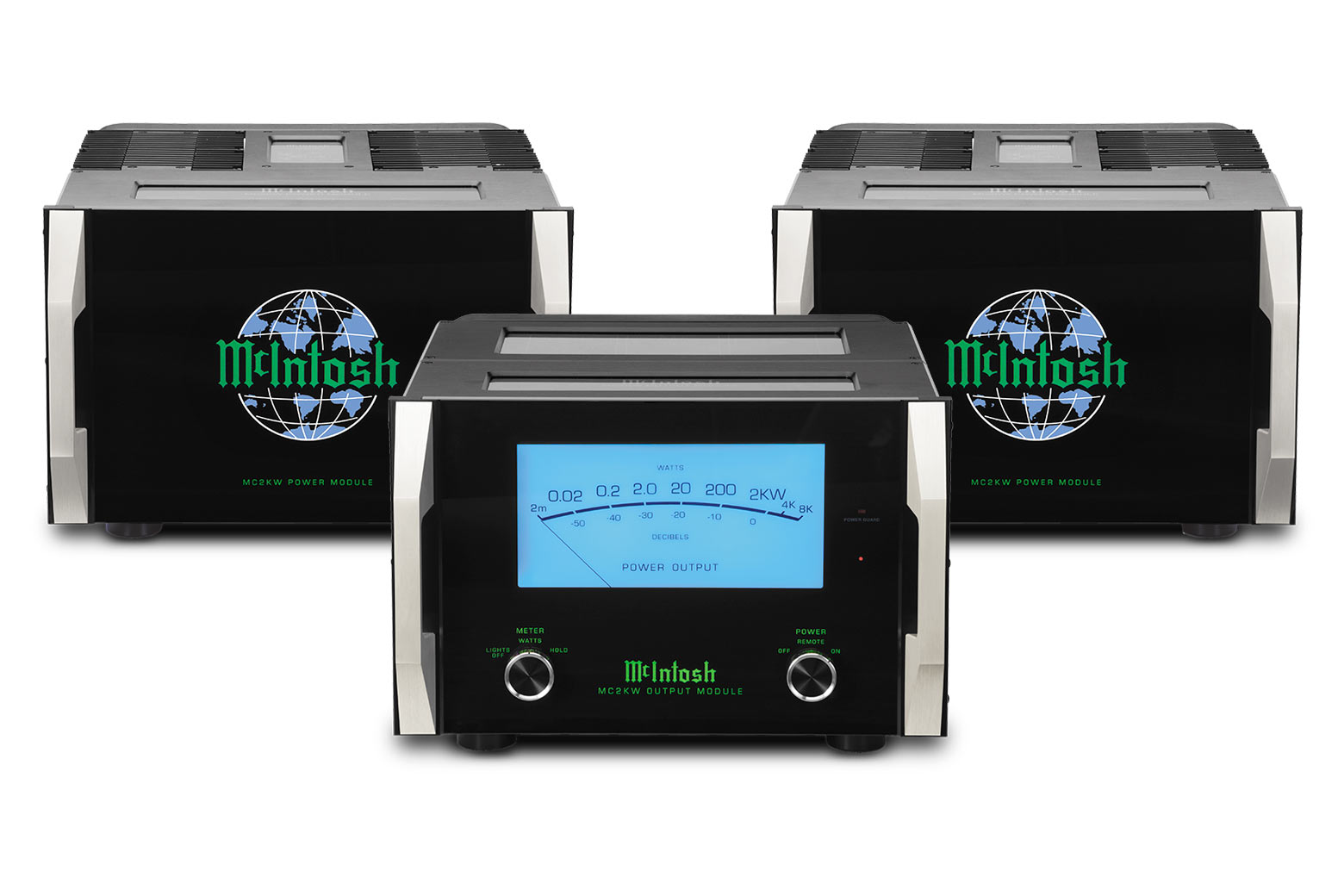

MC2KW 1-Channel Solid State Amplifier
