MC2301 1-Channel Vacuum Tube Amplifier

Electronic Specifications

• FTC Power Output Rating

  300 W

• Power Output per Channel

  300 W into 2, 4 or 8 ohms

• Number of Channels

  1

• Total Harmonic Distortion

  0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20kHz
  (≤ 0.25% harmonic distortion at 1kHz)

• S/N below rated output

  117dB

• Dynamic Headroom

  1.2dB

• Damping Factor

  >15 Wideband

• Rated Power Band

  20Hz to 20kHz

• Frequency Response

  +0, -0.5dB from 20Hz to 20kHz
  +0, -3.0dB from 10Hz to 100kHz

Control

• Remote Power Control

  Yes

• Multi-Channel DB25 Cable

  N/A

General Specifications

• Circuit Configuration

  Quad Balanced, Unity Coupled

• Circuit Design

  Vacuum Tube

• Mono Bridge

  No

• Mono Parallel

  No

• Output Type

  Unity Coupled Output Transformer

• Meters

  Yes

• Meter Light Switch

  Yes

• Balanced Input

  Yes

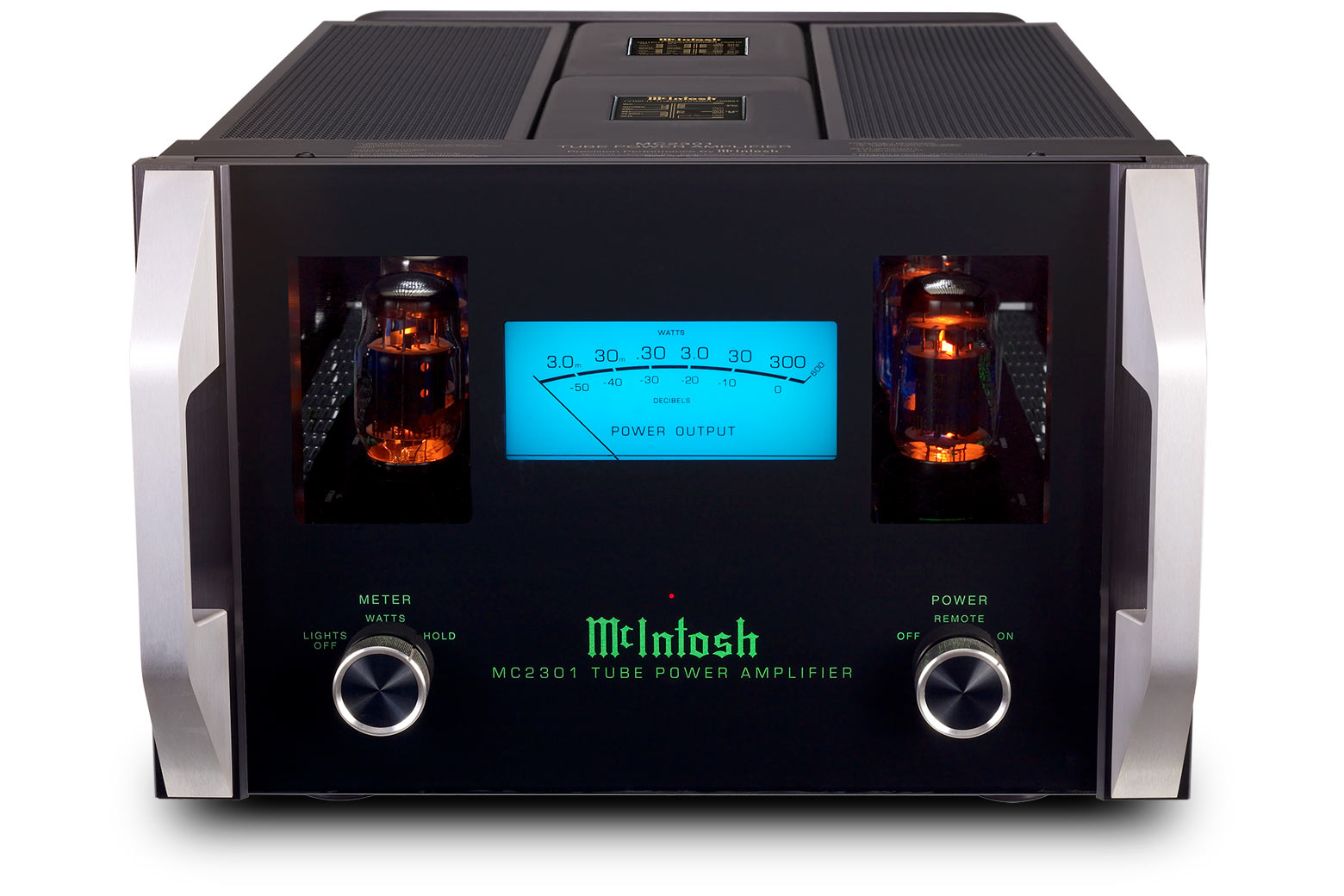

• Front Panel

  1/2" Glass with handles

• Illumination

  LED Fiber Optic

• Chassis Style

  Open Stainless Steel

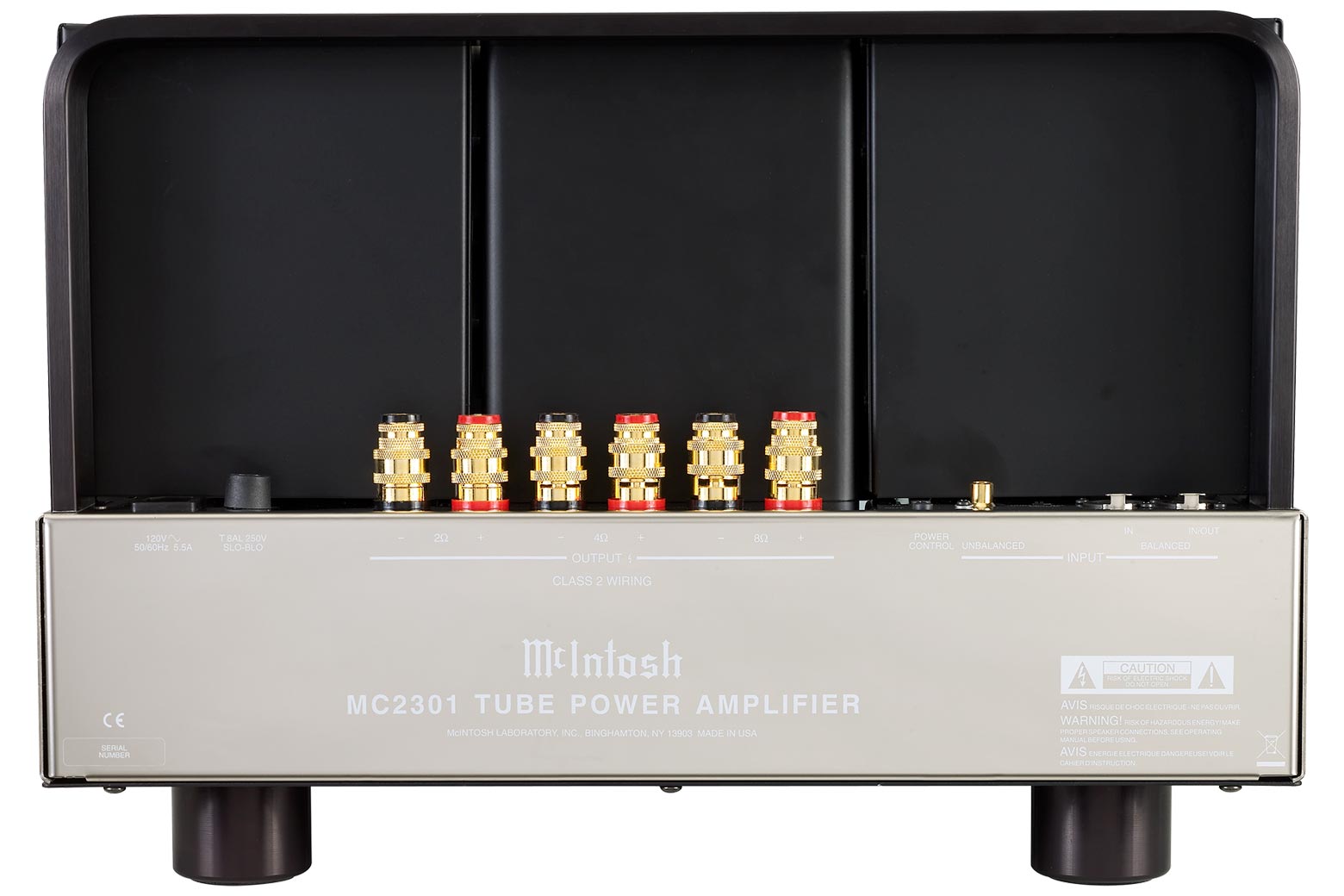

Connectivity

• Speaker Binding Post Type

  Yes, 200 amp, 3-way

Weights & Dimensions

• Unit Dimensions (W x H x D)

  17-3/4" (45.09cm) x 12-5/16" (31.27cm) (including feet) x 23" (58.42cm) (including front panel and cables)

• Unit Weight

  116 lbs (52.6 kg)

• Shipping Weight

  141 lbs (63.9 kg)
