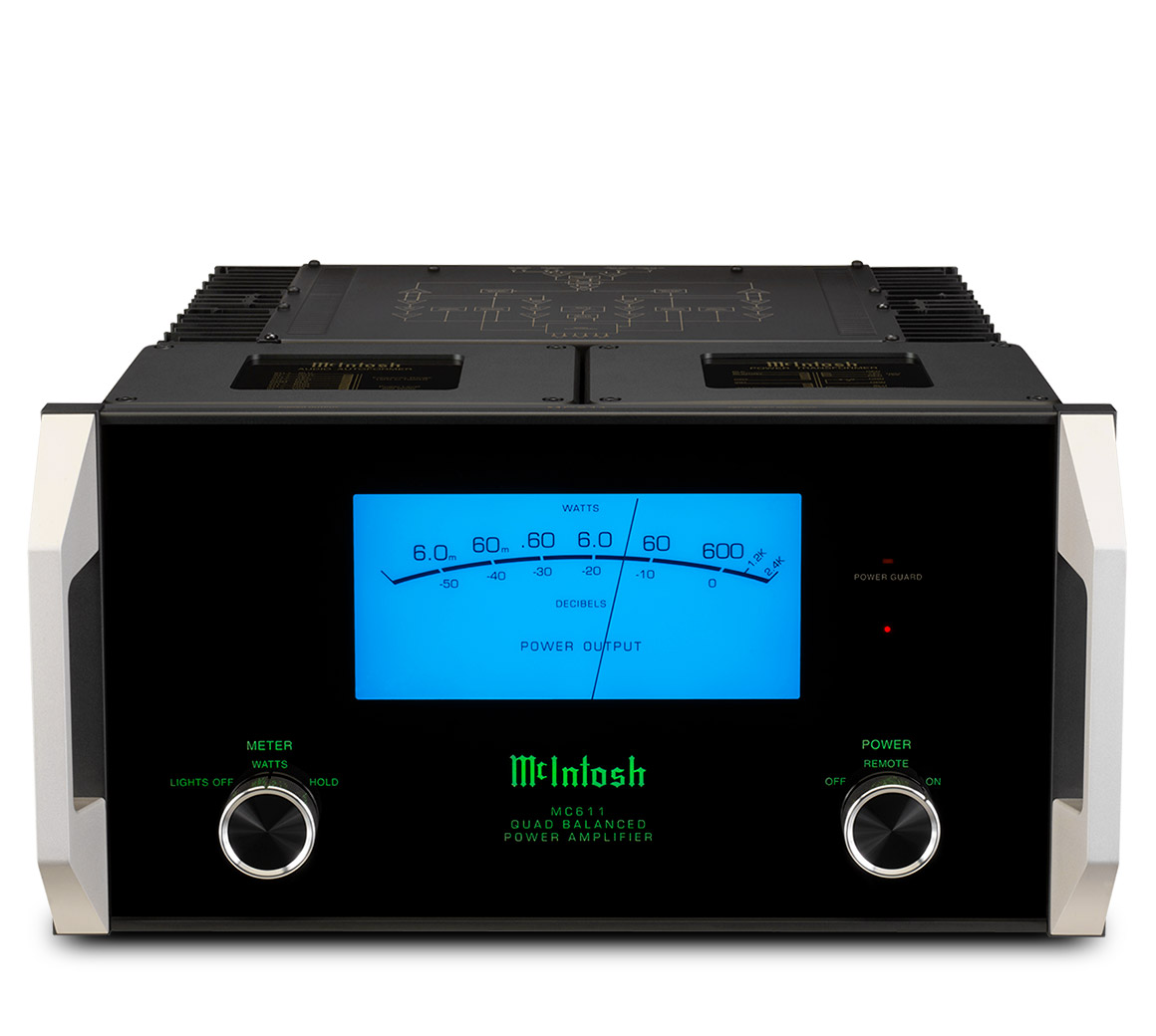

- 600 Watt Quad Balanced Monoblock
- 55% increase in Dynamic Headroom compared to previous model
- Autoformer™, Power Guard®, Sentry Monitor™, Monogrammed Heatsinks™, Solid Cinch™ speaker binding posts
SPECIFICATIONS
Electronic Specifications
FTC Power Output Rating:
600 W
Power Output per Channel:
600 W into 2, 4 or 8 ohms
Number of Channels:
1
Total Harmonic Distortion:
0.005%
S/N below rated output:
Balanced: 124dB
Unbalanced: 120dB
Unbalanced: 120dB
Dynamic Headroom:
2.8dB
Damping Factor:
>40 Wideband
Rated Power Band:
20Hz to 20kHz
Frequency Response:
+0, -0.25dB from 20Hz to 20kHz
+0, -3.0dB from 10Hz to 100kHz
+0, -3.0dB from 10Hz to 100kHz
Control
Remote Power Control:
Yes
Multi-Channel DB25 Cable:
N/A
Connectivity
Speaker Binding Post Type:
Patented Solid Cinch™ Speaker Binding Posts
General Specifications
Circuit Configuration:
Quad Balanced
Circuit Design:
Solid State
Mono Bridge:
N/A
Mono Parallel:
N/A
Output Type:
Autoformer™
Meters:
Yes
Meter Light Switch:
Yes
Balanced Input:
1
Front Panel:
Glass with handles
Illumination:
Direct LED
Chassis Style:
Polished stainless steel & black painted steel
Weights & Dimensions
Unit Dimensions (W x H x D):
17-1/2" (44.45cm) x 9-7/16" (23.97cm) (including
feet) x 22" (55.88cm) (including front panel, handles and cables)
feet) x 22" (55.88cm) (including front panel, handles and cables)
Unit Weight:
97.5 lbs (44.32 kg)
Shipping Weight:
130.5 lbs (59.32 kg)
